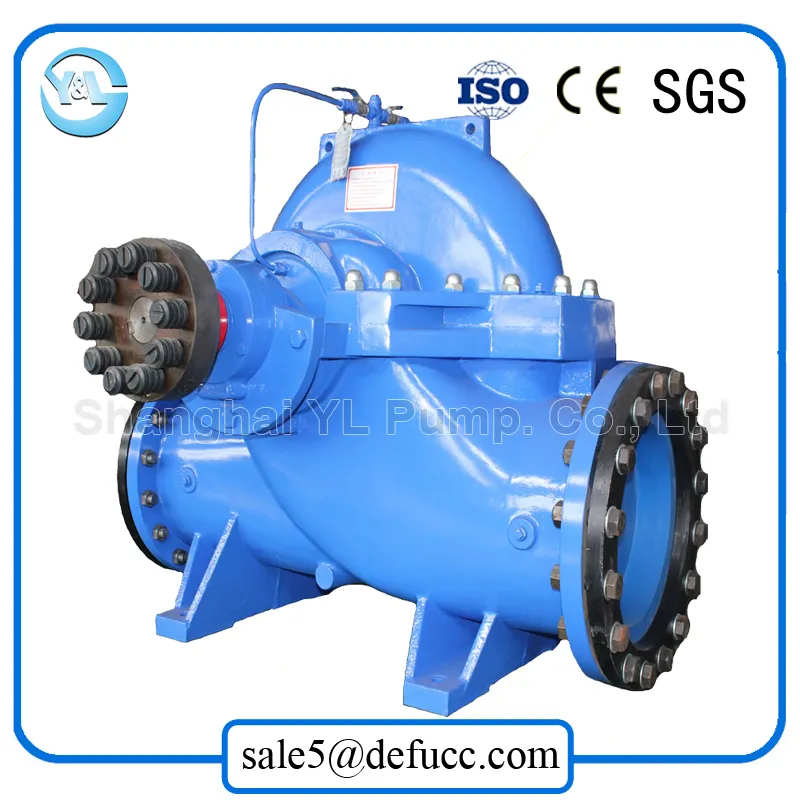

Single Stage Double Volute Suction Pump for Agriculture Irrigation

Product Description

Single Stage Double Volute Suction Pump for Agriculture Irrigation

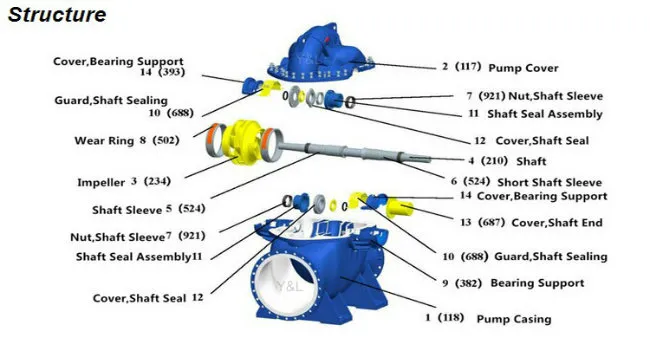

Structure
Single Stage Double Volute Suction Pump for Agriculture Irrigation

Technical Parameters

Pump Model	Capacity		Head (m)	Speed (r/min)	Power	Efficiency (%)	NPSH r(m)	Impeller's Dia(mm)	Net Pump Weight(kg)
Pump Model	m3/h	L/S	Head (m)	Speed (r/min)	Shaft Power (kw)	Efficiency (%)	NPSH r(m)	Impeller's Dia(mm)	Net Pump Weight(kg)
TPOW100-260	30	8.3	21.7	1480	4.3	41.5	1.9	254	207
	123.5	34.3	17		7	81.5
	170	47.2	12.5		8.1	71.5
TPOW100-260A	28	7.8	19		3.7	39.5		236
	114	31.7	14.5		5.7	79.5
	154	42.8	11.3		6.6	71.5
TPOW100-260B	26	7.2	16.3		3	38		219
	105.9	29.4	12.5		4.6	78
	143	39.7	9.2		5	71.5
TPOW100-260C	25	6.9	13.3		2.5	36		201
	99.3	27.6	11		3.9	76
	131	36.4	7.9		3.9	71.5
TPOW100-260	52	14.4	81	2950	27.6	41.5	7.4	254	207
	245.5	68.2	68		55.8	81.5
	288	80	60		59.2	79.5
TPOW100-260A	51.5	14.3	69		24.5	39.5		236
	227.7	63.3	58.5		45.6	79.5
	270	75	50		47.4	77.5
TPOW100-260B	50.5	14	60		22	37.5		219
	212.6	59	51		38.1	77.5
	252	70	42		38.2	75.5
TPOW100-260C	49	13.6	51		18.9	36		201
	195.2	54.2	43		30.1	76
	234	65	35		30.1	74

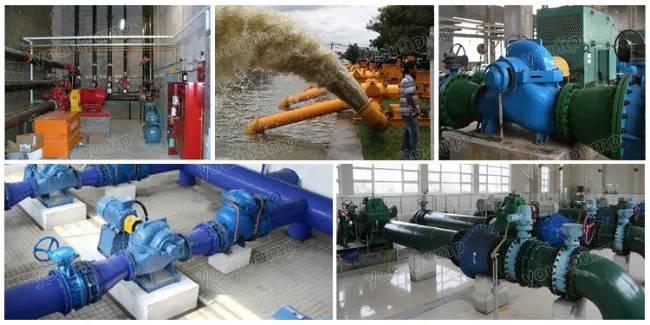

Application
1.the pump can be used for fire extinguishing for motor, transformer, factory and oil system. It can be used as standby fire pump in fire water system.
2.The double suction centrifugal pump is widely used in urban drainage, urban water supply, water plant. central heating system drainage for power plant. paper mill, water supply for air-conditioning system.
3.This kind of water pump has large flow, it is applied to farmland irrigation and drainage water conservancy.
4.The large solid particles which can be passed through are 20% of the pump impeller, our centrifugal pump is used for conveying wastewater, sewage in mine, drainage pumping station, iron and steel metallurgy, petrochemical refining and other fields.
Single Stage Double Volute Suction Pump for Agriculture Irrigation

Package
Single Stage Double Volute Suction Pump for Agriculture Irrigation

The Service
1.Delivery: Delivery time will be on time as the contact. Usually, the delivery time is of centrifugal pump is for 15-25 working days.
2.Warranty: 1 year for the pump body, 3 months for the main working parts.
3.Package:According to your quantity, we use plywood case which is durable for ocean transport.
4.Shipping: By Sea and By Air
5.Payment: We are accept T/T,L/C,West Union and so on.
6.Pre-sales Service:According to your requirement, we will give your our profession advice of pump solution.
7.On-sales Service:We will clearly show you everything in fact when you place an order with us. We will takes photos or videos to show you order production situation.
8.After-sales Service: We will full report you the production progress and plan. Meanwhile, we will follow up the pump working conditions per three months when the pumps put into use, and can send the spare parts to you within one week if you need.
