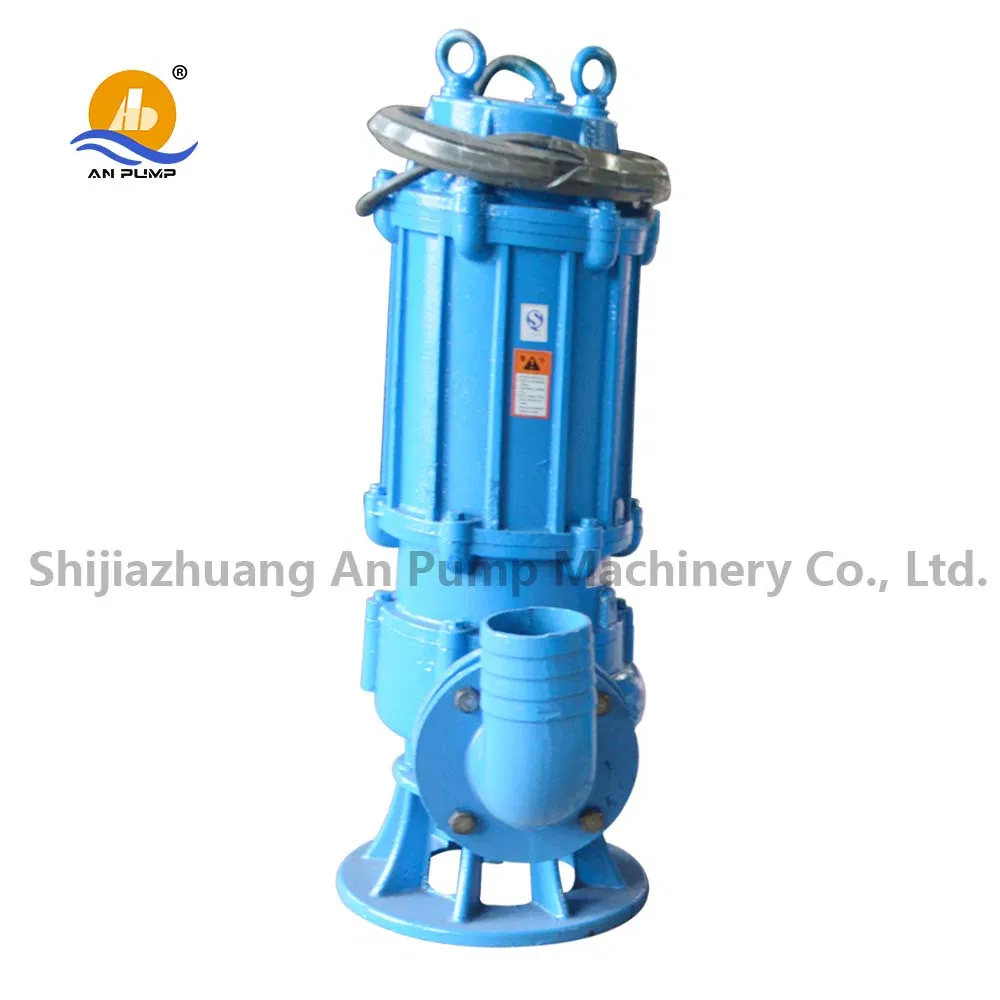

Sea Water Draining Sand Submersible Pump

Product Description

Sea Water Draining Sand Submersible Pump

Submersible Sewage Pump Performance:

Vertical Sewage Pump Performance
Type	Flow (m3/h)	Head (m)	Speed (r/min)	Motor Power (KW)	Efficiency (%)
40AQW	8.4-14.4	14-16	2900	1.5	42-70
50AQW	7-50.4	8-36	1450-2900	0.75-7.5	46-62
65AQW	17.5-44.4	11-30.2	2900	2.2-4	39-72
80AQW	20.3-72	5.7-27.5	2900	2.2-7.5	51-75
100AQW	35-120	5.6-38.5	1450	4-15	46-80
150AQW	49-300	5.5-44.5	1450	5.5-37	58-82
200AQW	110-480	5.7-44.5	1450	11-75	63-83
250AQW	420-840	7-35	980-1450	30-90	63-84.5
300AQW	280-1140	6.7-27	980-1450	45-110	68-84.5
350AQW	700-1800	8-40	980	45-160	68-85
400AQW	1050-2640	12-33	980	132-160	71-85
500AQW	1400-3600	9-22.5	980	110-200	72-85

In electrical control, according to the user's requirements, respectively, the following two types
of diving sewage pump.

1.common type: the structure is not installed on overtemperature, leakage protection device, in the electric control board without
a corresponding overtemperature, leakage protection circuit. Its protective function leakage, lack phase, short circuit, overload, earth.

2.Full insurance type: in the structure and electric control panel for the pump to provide a comprehensive protection, its protection functions
leakage, lack phase, short circuit, overload, grounding, overtemperature, leakage. All insurance must be longwei type sewage diving pumps used in
conjunction with dedicated control cabinet to achieve the perfect results.

Application
Primarily for the construction of the buildings,residential quarters,public works,road traffic and construction,sewage plants,small sewage treatment plants,hospital and other occasions,delievery of solid particles and long fibers containing sewage,waste water, rainwater ,ect.

QA&QC

Reliable and comprehensive quality assurance system ensures the excellent quality of our products. We have got the "International Standard" certification, manufactured according to GB, Department of superscript, and industry standards, we implement a comprehensive quality management during the entire process of production, accordance with the process file processing strictly, and a variety of detection methods etc.

We have meet the requirements of GB3216-89 national Class B accuracy, <>, computer test data monitoring of water test pumping station application. There are physical chemistry laboratory, metallographic analysis room in our factory, for testing material properties in different respects.

1. Quality Policy
Advocates quality is the life of enterprise, assiduous, the pursuit of excellence
2. Quality objectives
qualified products rate 99%, factory qualified pass rate: 100%
3. Quality Commitment
1) We will continue to improve the awareness of quality, implementing as GB/T19001-2000 quality assurance model standard, meeting technical requirements stipulated in the contract. We are not only discharge for the supplier host, but also for the quality of spare parts, external assistance products etc.
2) We promise the delivery time stipulated in the contract.
Sea Water Draining Sand Submersible Pump
