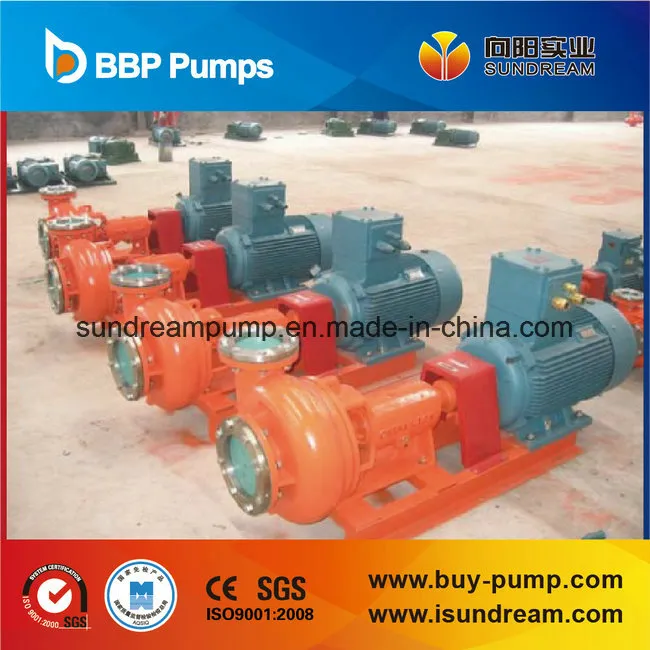

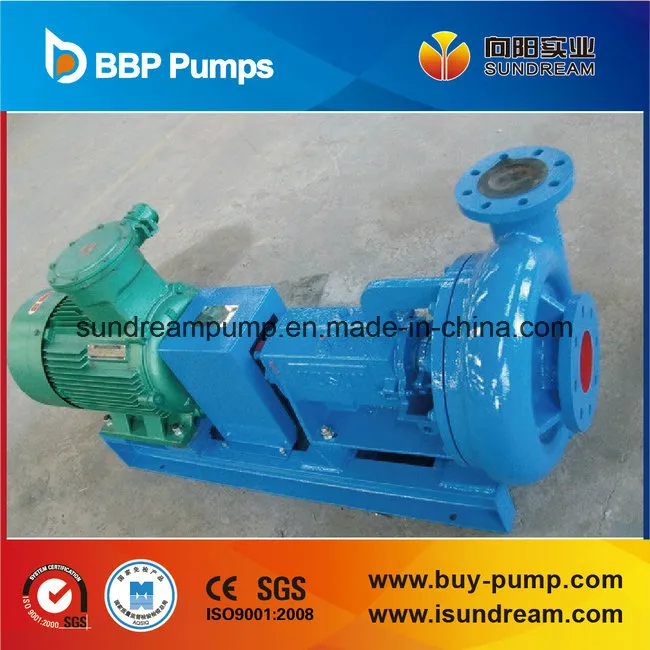

Sb 8X6 Sand Pump ISO9001 Certified

Sand pump is designed for the handling of highly abrasive, high density slurries in oilfield and gasfield. It is BETTER Drilling Fluid Equipment, which offers a complete line of centrifugal sand pump to suit for all kinds of drilling application. Size ranges from 3X2X13 through 10X8X14 to 14X12X22.

Specifications
SB Centrifugal sand pump
1 Perfect mechanical seal
2 Pump mud for drilling oilfield
3 Durable use
4 oil well sand pump
SB series drilling oil Sand Pump
A) Caliber: DN25-DN300mm
B) Flow: 5-800m3/hr
C) Head: 12-60 m
D) Rotate speed: 1450-2900r/min
E) Motor power: 2.2-55 KW
F) Working temperature: ≤ 200° C
G) Material: Cast iron, stainless steel

2, product overview:
SB series Sand Pump is the ideal equipment to provide impetus for Desander, Desilter and Jet Mud Mixer. It can also be used as Charge Pump auxiliary perfusion for mud pump and Trip Pump for drilling well head. Centrifugal pump is also called sand pump. We considered completely the set equipment can work in excellent condition in the process of designing parameters). Most parts can be exchanged, with convenient operation and maintenance, less seal leakage, reliability, long life and other advantages.

3, main feature:
A)Open impeller, apply to transport high viscosity drilling liquid
B)Combination seal for a long service life
C)Use universal bearing houses and bearings, convenient to maintain and cut the costs
D)The major parts are made from antiwear nodular iron, and longservice life
