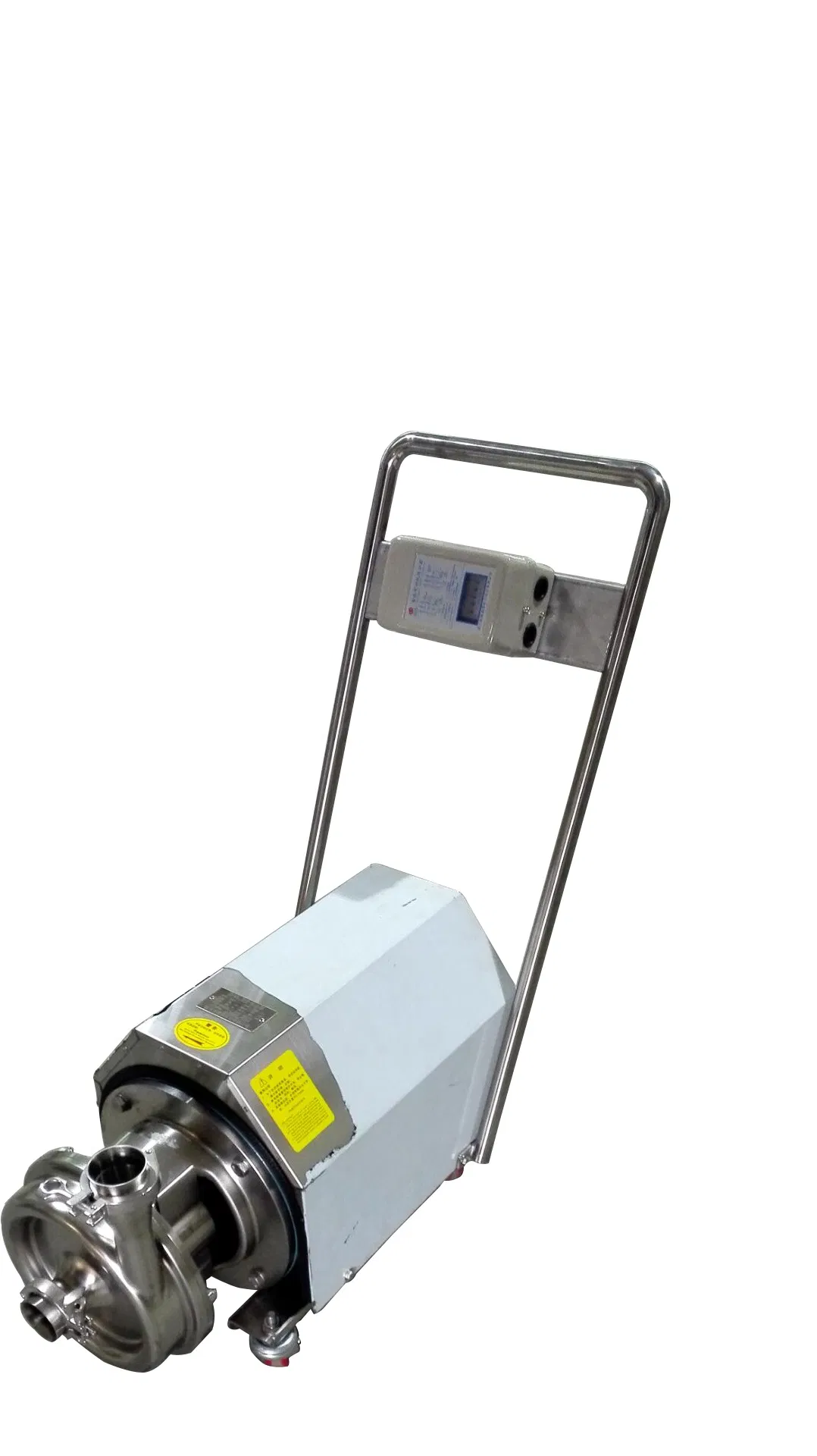

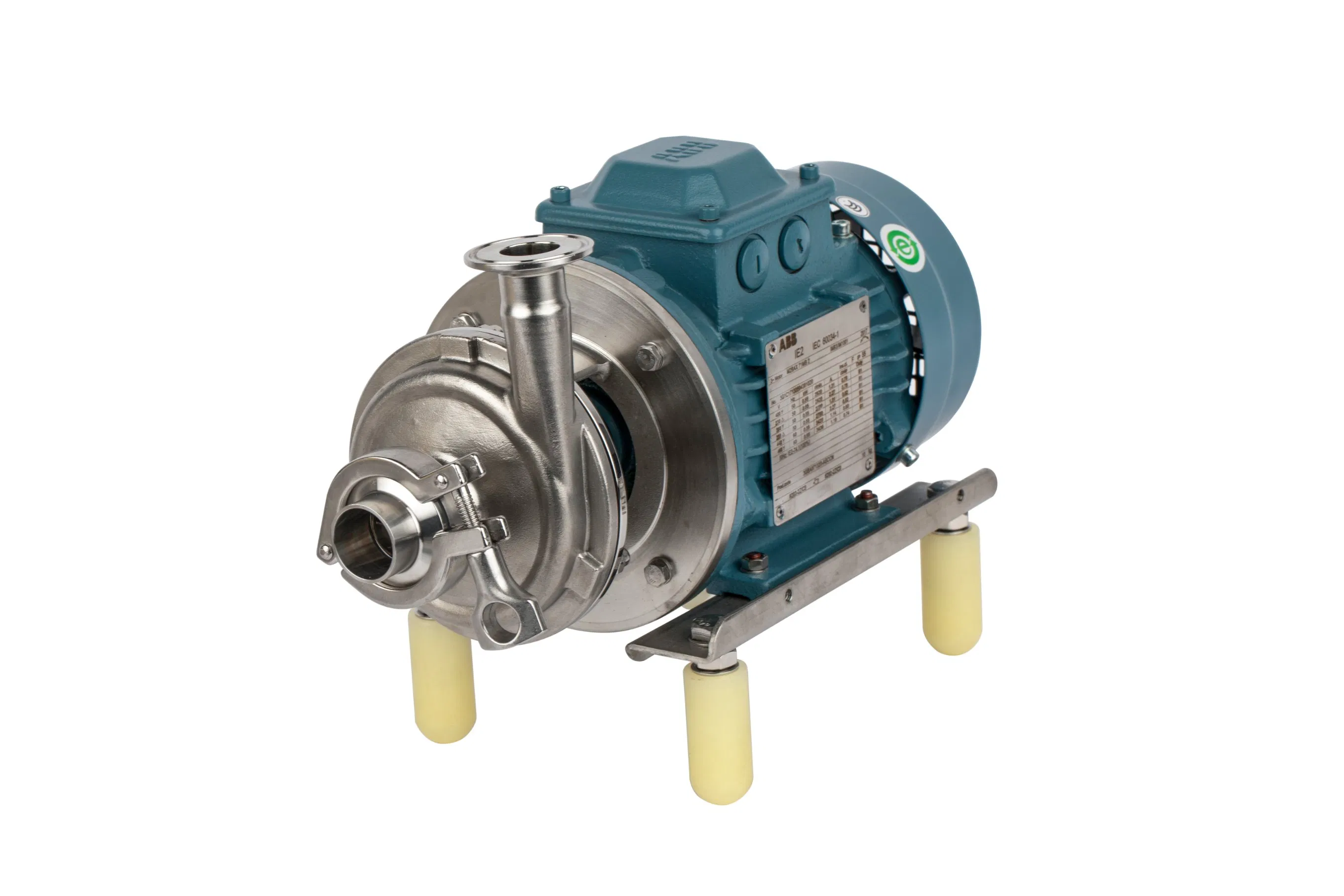

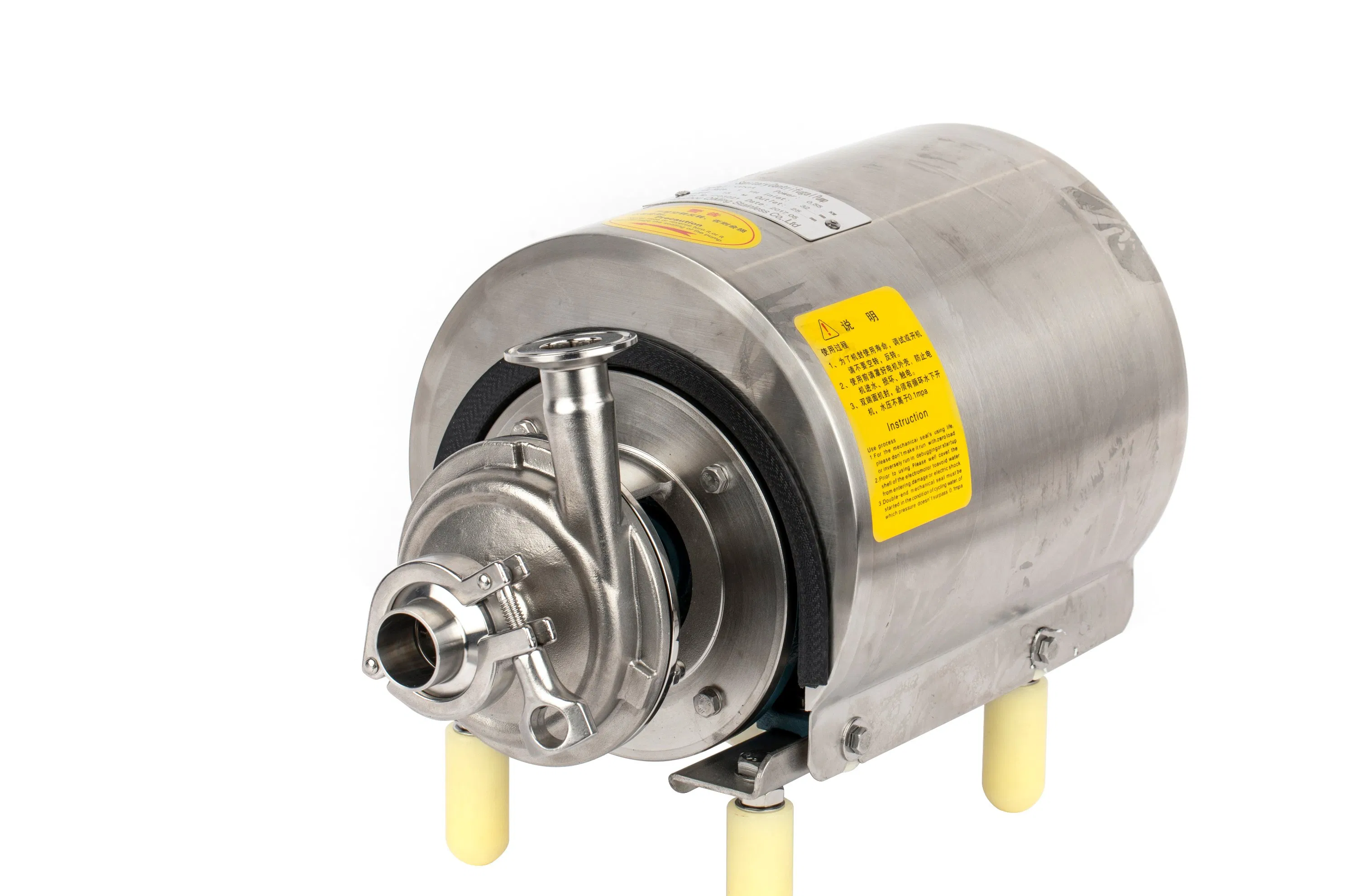

China Sanitary Stainless Steel Clamp Low Pressure Centrifugal Pump

Product Description

Application
The PC Series centrifugal pump is your solution to a lower cost of ownship while providing the the flexibility your operations need. Its stainless steel construction provides the durability, intergrity and absolute quality required for your sanitary fluid transfer operations.

Product Name:	Sanitary Centrifugal Pump
Material:	SS304, SS316L
Connection Way:	Clamp, Union
Rotating Speed:	2900RPM
Frequency:	50HZ
Max.permissible fluid temperature:	120ºC

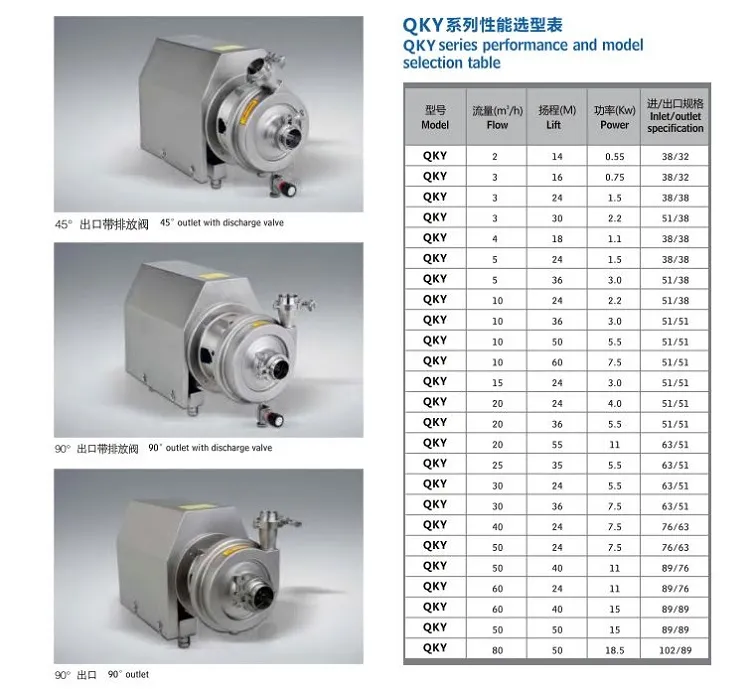

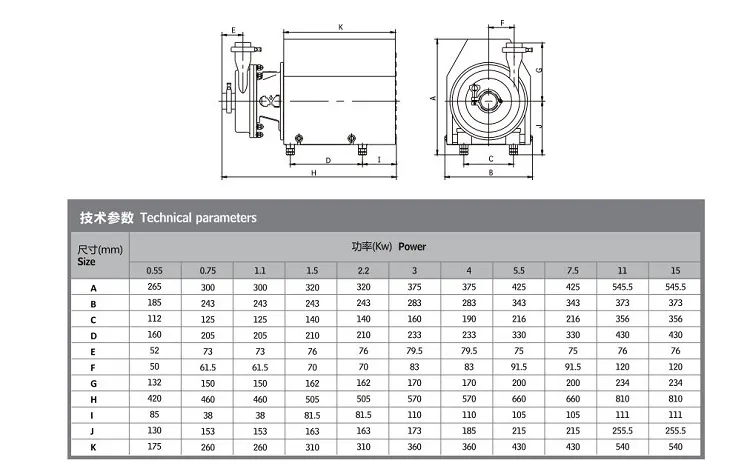

Technical Specification
Max. Discharge Head:40m
Max. Flow:120m³/h
Max. Revolution:2900r/min
Temperature Range:-20~+135ºC(EPDM)
Max. Inlet Pressure:58Psi/4Bar
Max. Outlet Pressure:94Psi/6.5Bar
Supply pressure for air actuator: 70 ~ 115psi
Voltage:AC 220V, 380V, 460V, 690V, 50HZ, 60HZ
Standards: DIN, 3A, SMS, ISO/IDF, BS/RJT, ASME/BPE
End Connections: Clamp, Union, Butt-weld, or others upon request

Sanitary Stainless Steel Clamp Low Pressure Centrifugal Pump

Q: Why would I choose you?
Wenzhou QiMing Stainless Co., Ltd has been engaging in manufacturing sanitary valves, fittings, tank components and pumps for over 15 years, outstanding in production capacity, effective management, accurate lead time, on-time shipments and problems-solvingrate after sales.
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.
Q: What's the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What's the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
