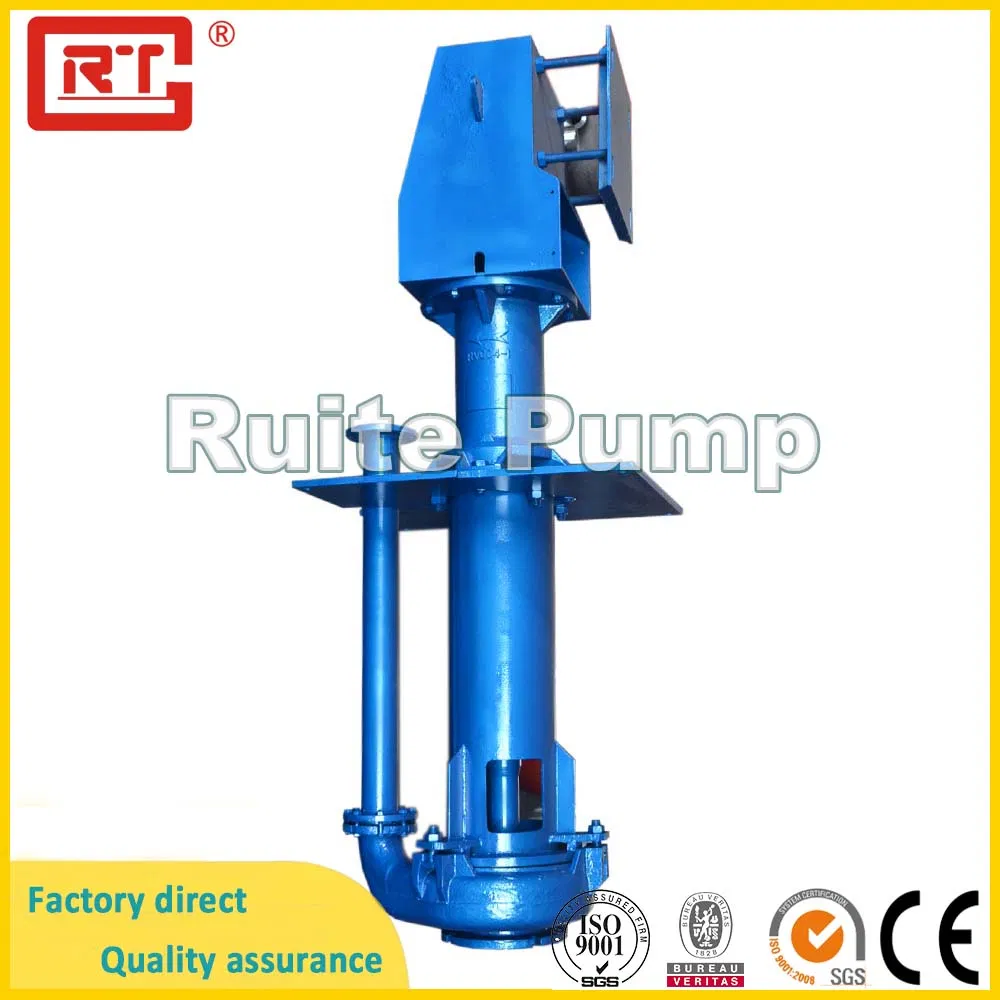

Rubber Lined Mining Vertical Slurry Pump
High quality resisting abrasive heavy duty slurry pumpType TSP pumps are vertical, centrifugal slurry pumps submerged in sump to work. They are designed for delivering abrasive, large particle and high density slurries. These pumps have no need of any shaft seal and sealing water. They can also be o......
Send Inquiry
Product Description
High quality resisting abrasive heavy duty slurry pump
Type TSP pumps are vertical, centrifugal slurry pumps submerged in sump to work. They are designed for delivering abrasive, large particle and high density slurries. These pumps have no need of any shaft seal and sealing water. They can also be operated normally for insufficient suction duties.VSD here means Vertical Sump Duty Slurry Pump.
which is suited for the working condition of deeper level. The guide bearing construction is added to the pump on the basis of the standard pump, so the pump is with both more steady operation and wider application range, but flushing water should be attached to the guide bearing.
Wet parts of type VSD pump are made of abrasion-resistant metal.
All parts of type VSD pump immersed in liquid are lined with rubber outer liner. They are suited to transport no-edge angle abrasive slurry
Bearing Assembly The bearings, shaft and housing are generously proportioned to avoid problems associated with the operation of cantilevered shafts in the first critical speed zones.
The assembly is grease lubricated and sealed by labyrinths; the upper is grease purged and the lower protected by a special flinger. The upper or drive end bearing is a parallel roller type whilst the lower bearing is a double taper roller with preset end float. This high performance bearing arrangement and robust shaft eliminates
the need for a lower submerged bearing.
Column AssemblyCompletely fabricated from mild steel.
CasingHas a simple bolt-on attachment to the base of the column. It is manufactured from a wear resistant alloy for the SP and from moulded elastomer for the VSDR.
ImpellerDouble suction impellers (top and bottom entry) induce low axial bearing loads and have heavy deep vanes for maximum wear resistance and for handling large solids. Wear resistant alloys, polyurethane and moulded elastomer impellers are interchangeable. The impeller is adusted axially within the casting during assembly by external shims under the bearing housing feet. No further adjustment is necessary.
Upper StrainerDrop-in metal mesh; snap-on elastomer or polyurethane for VSD and VSDR pumps. Strainers fit in column openings.
Lower StrainerBolted metal or polyurethane for SP; moulded snap-on elastomer for VSDR.
Discharge PipeMetal for VSD; elastomer covered for VSDR. All wetted metal parts are completely rust protected.
Submerged BearingsNone
AgitationAn external agitator spray connection arrangement can be fitted to the pump as an option. Alternatively, a mechanical agitator is fitted to an extended shaft protruding from the impeller eye.
MaterialsPumps can be manufactured in abrasive and corrosive resistant materials
Introduction:

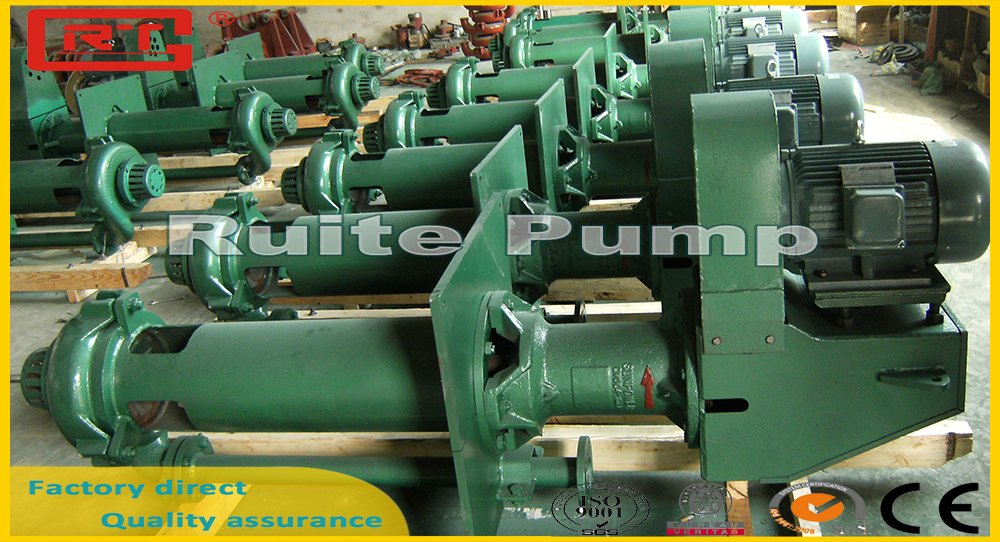

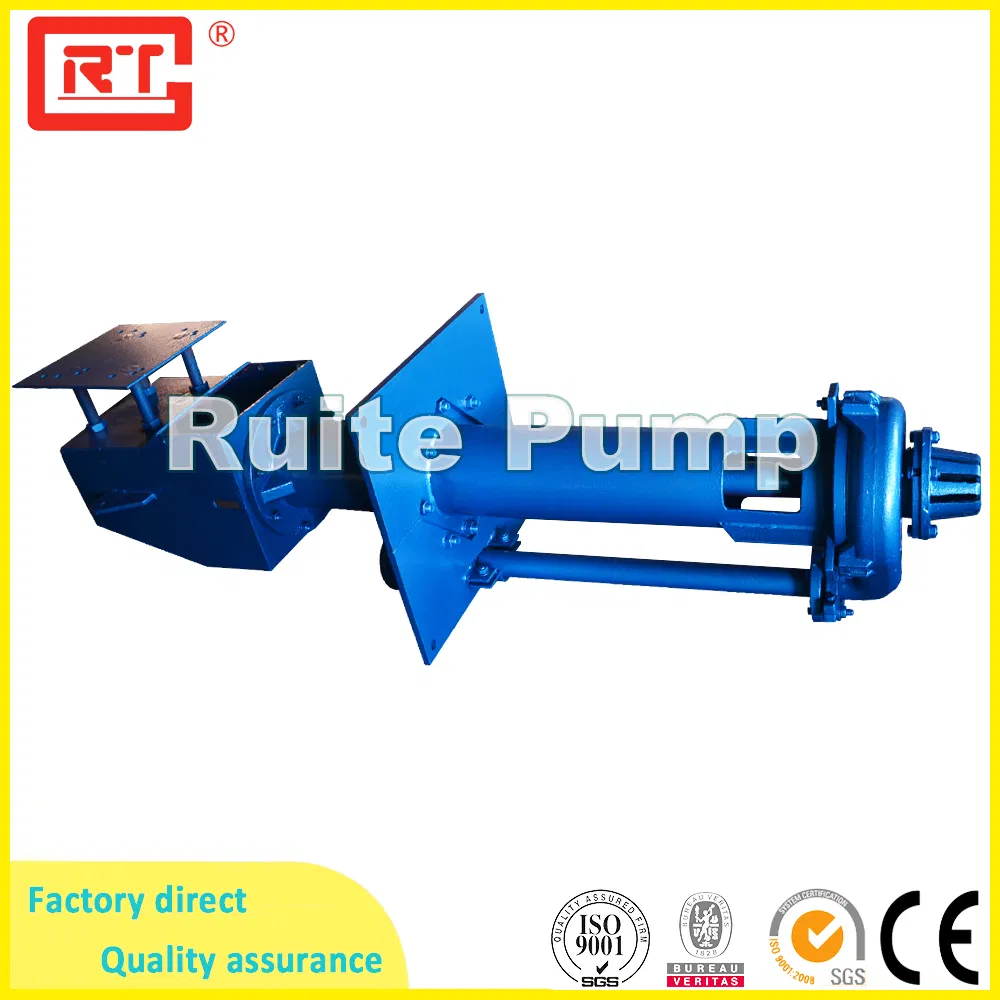

Vertical Slurry Pump is a cantilever sump pump, semi-submerged to transport high abrasive and high density
lurries with large particles. It doesn't need any seal water and can work normally even insufficient liquid.
It is well designed for hard metal lined or fully rubber lined fitted, high flow rate with double suction semi-open
impeller design, and suction agitator is also available.

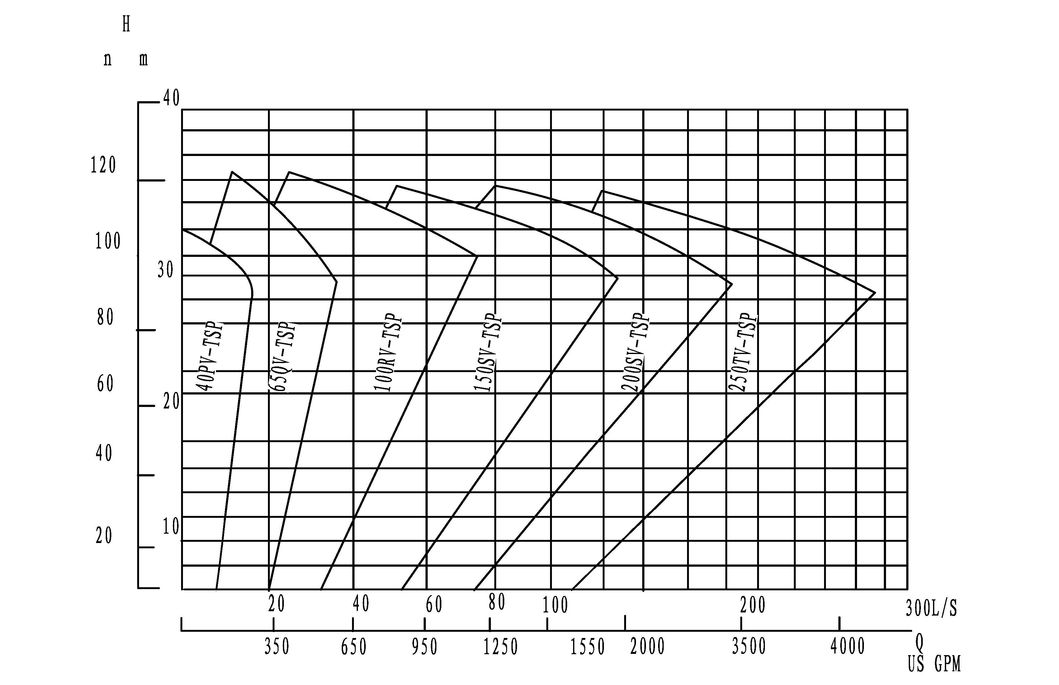

Size (discharge): 40mm to 300mm
Capacity: 7.28-1300 m3/h
Head: 3m-45 m
Handing solids: 0-79mm
Concentration: 0%-70%
Materials: high chrome alloy or anti-abrasive rubber

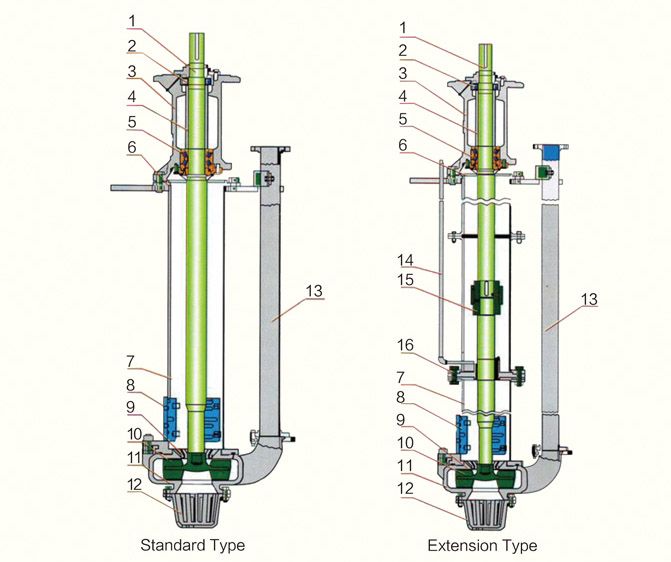

| Metal Lined Vertical Slurry Pump | Rubber Lined Vertical Slurry Pump | ||||
| No | Parts name | Materials | No | Parts name | Materials |
| 1 | Shaft | 45 High Strength Steel | 1 | Shaft | 45 High Strength Steel |
| 2 | Bearing | China Brand or SKF; NSK | 2 | Bearing | China Brand or SKF; NSK |
| 3 | Bearing Housing | HT250 | 3 | Bearing Housing | HT250 |
| 4 | Bearing spacer | Stainless Steel | 4 | Bearing spacer | Stainless Steel |
| 5 | Bearing | China Brand or SKF; NSK | 5 | Bearing | China Brand or SKF; NSK |
| 6 | Shim | Stainless steel | 6 | Shim | Stainless steel |
| 7 | Column | Stainless steel | 7 | Column | Stainless steel |
| 8 | Strainer | Cast Iron | 8 | Strainer | Natural Rubber |
| 9 | Back liner | Ultra Chrome Alloy | 9 | Back liner | Anti-abrasive Rubber |
| 10 | Impeller | Ultra Chrome Alloy | 10 | Impeller | Anti-abrasive Rubber |
| 11 | Pump casing | Ultra Chrome Alloy | 11 | Pump casing | Anti-abrasive Rubber |
| 12 | Lower strainer | Cast Iron | 12 | Lower strainer | Natural Rubber |
| 13 | Discharge pipe | Stainless steel | 13 | Discharge pipe | Stainless steel |
| 14 | Flushing pipe | Carbon steel | 14 | Flushing pipe | Carbon steel |
| 15 | Coupling | 45# Steel | 15 | Coupling | 45# Steel |
| 16 | Middle supporting parts | Stainless steel | 16 | Middle supporting parts | Stainless steel |
If you need any others pump type, please free contact us
FAQ
Q:Are you manufacturer or a trading company?
A:We are manufacturer with more than 20 years experiences.
Q:How to customize pumps and mechanical seals ?
A:Customers could send us application data, we will select suitable pump and seal types, or client could send us drawings, We are well in OEM and ODM.
Q:How can I pay for my items? What is the payment you can provide?
A:Usually by T/T, 50% payment in advance, the balance will be paid after inspection and before shipment.
Q:How long is production lead time?
A:Normally 15 working days. If client need urgently, we have a huge spare parts stock, we could finish assembly and testing in 7 days.
Q:What is the shipping terms you can provide?
A:Depnends on customer's requirements, we can provide different transportantin terms, such as EXW, FOB, CIF.
Q:Who is in charge of after-sales?
A:Ruite has professional after sales service team, we will follow up the client's comments and suggest them good solutions. Solve client's problems and keeping the clients profit.
