Rubber Impeller F6147r for 8/6 Eah Slurry Pump

                                                Rubber Impeller F6147R for 8/6 EAH Slurry Pump

Company Profile

ShiJiaZhuang Naipu Pump Co.,Ltd is the main  factory of slurry pump , sand gravel pump , dredging pump and spare parts , with more than 30 years production experience .
we also can undertake OEM  serive for casting and machning parts according the drawing or sample.



Rubber Impeller F6147R for 8/6 EAH Slurry Pump

The Impeller is the main rotating component which normally has vanes to impart the centrifugal force to the liquid. Usually, slurry pump impellers have a plain or a Francis type vane




Metal Impeller F6147A05 for 8/6E-AH Pump


Feature

Feature
Durable
High performance
Long lasting
Reasonable Price

Materials of Construction

Rubber:
• NR08 is a black natural rubber, of low to medium hardness. RU08 is used for impellers where superior erosive resistance is required in fine particle slurries.
• NR26 is a black, soft natural rubber. NR26 is used for lines where superior erosion resistance to all other materials in fine particle slurry applications.
• NR33 is a premium grade black natural NRbber of low hardness and is used for cyclone and pump liners and impellers where its superior physical properties give increased cut resistance to hard, sharp slurries.
• NR55 is premium grade black natural rubber, it is suitable for severe erosive fine particle slurries.

Metal:

1. A05  is a wear resistant white iron that offers excellent performance under erosive conditions. The alloy can be effectively used in a wide range of slurry types. The high wear resistance of alloy A05 is provided by the presence of hard carbides within its micro-structure. Alloy A05 is particularly suited to applications where mild corrosion resistance, as well as erosion resistance is required.

2. A07 Marten-sic white iron with moderate erosion resistance.

3. A49 is suitable for low pH corrosion duties, where erosive wear is also a problem. The alloy is particularly suitable for Flue Gas Desulphu-rization(FGD) and other corrosive applications, where the pH is less than . The alloy can also be used in other mildly acidic environments.A49 has an erosion resistance similar to that of Ni-Hard 1.

Non OEM Slurry Pump Impeller interchangeable with  AH Slurry Pump Code

1.5/1B-AH Slurry Pump code: B1127
2/1.5 B-AH Slurry Pump code: B15127
3/2 C-AH Slurry Pump code: C2147
4/3 C-AH Slurry Pump code: D3147
4/3 D-AH Slurry Pump code: D3147
6/4 D-AH Slurry Pump code: E4147
6/4 E-AH Slurry Pump code: E4147
8/6 E-AH Slurry Pump code: F6147
8/6 F-AH Slurry Pump code: F6147
10/8 F-AH Slurry Pump code: F8147
10/8 ST-AH Slurry Pump code: G8147
12/10 ST-AH Slurry Pump code: G10147
14/12 ST-AH Slurry Pump code: G12147

Non OEM Slurry Pump Impeller interchangeable with SP Series Vertical Slurry Pump

40PV-SP Vertical Slurry Pump impeller code: SP4206
65QV-SP Vertical Slurry Pump impeller code: SP65206
100RV-SP Vertical Slurry Pump impeller code: SP10206
150SV-SP Vertical Slurry Pump impeller code: SP15206
200SV-SP Vertical Slurry Pump impeller code: SP20206

Non OEM Gravel Pump Impeller interchangeable with G Series Sand Gravel Pump

6/4D-G Sand Gravel Pump impeller code: DG4137
8/6E-G Sand Gravel Pump impeller code: EG6137
10/8F-G Sand Gravel Pump impeller code: FG8137
12/10G-G Sand Gravel Pump impeller code: FG10137
14/12G-G Sand Gravel Pump impeller code: GG12137

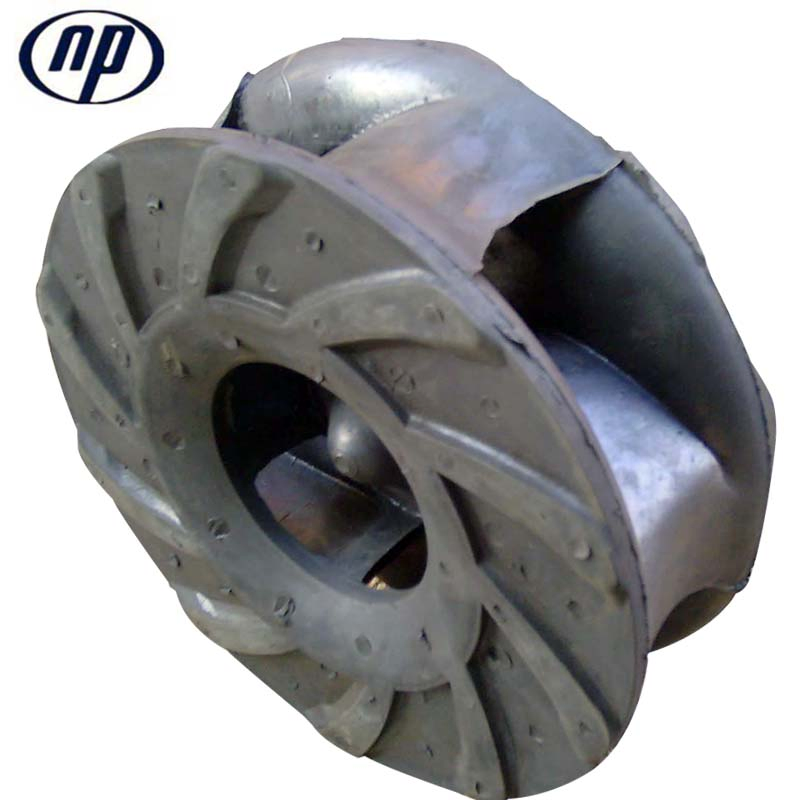

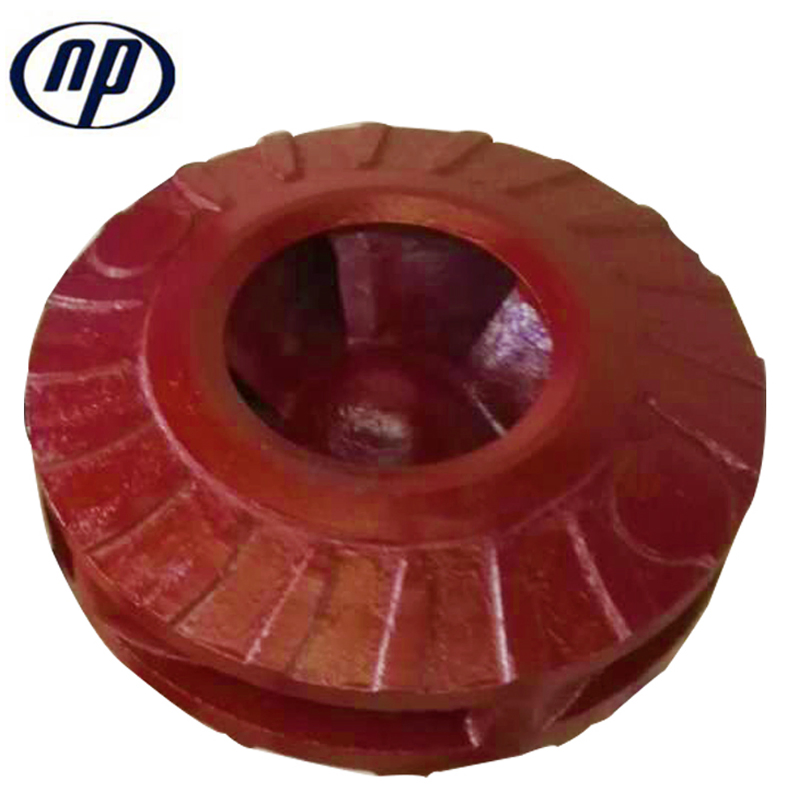

More Impeller Picture

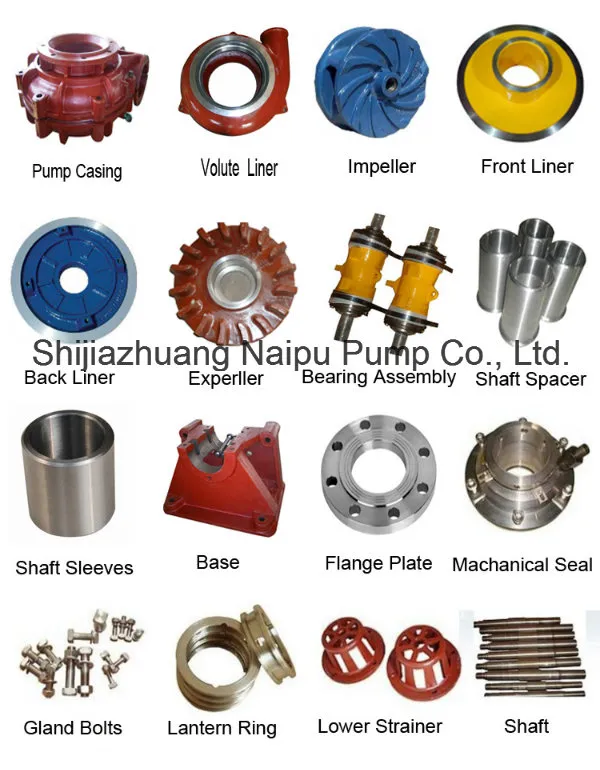

Centrifugal Pump parts


NaiPu WorkShop




Our Services

1.Quick Reply.All Message or email will get reply within 8 hours
2.We can help to give some valuable suggestion.
3.We have a group of high quality technicians with rich experience who can solve everything  during the whole process.
4.Perfect after -sales .We will be responsible for the whole life period
5.OEM order.Many material are available ,like High chrome, rubber , stainless steel and etc.,

Contact Us
ShiJiaZhuang NaiPu Pump Co.,Ltd
Contact person :Kitty Liu

Mobile/ :+86-13032609126



If you are intrested in High Chromium White iron Parts, please do not hesitate to contact us!

Welcome to visit our factory!!!
