PTFE Lining Sulphuric Acid Uhb Centrifugal Slurry Pump for Nitric Acid

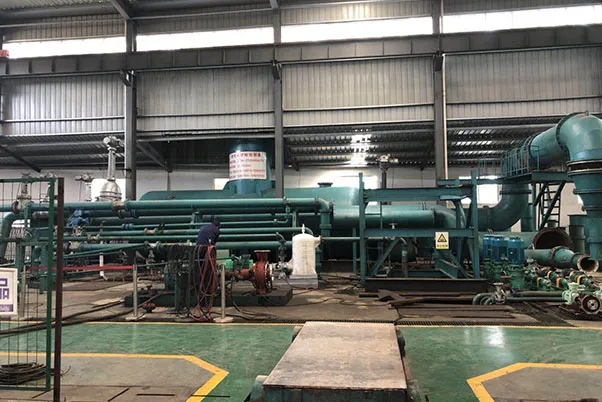

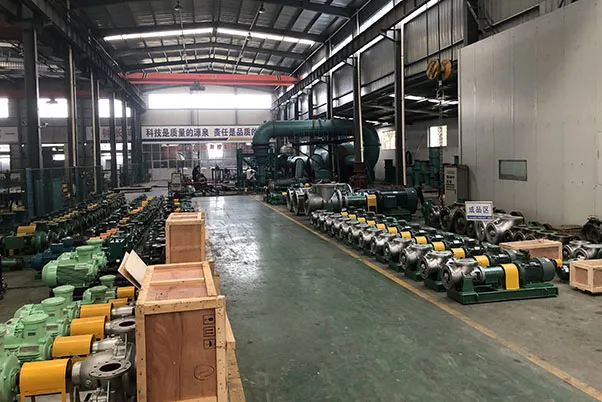

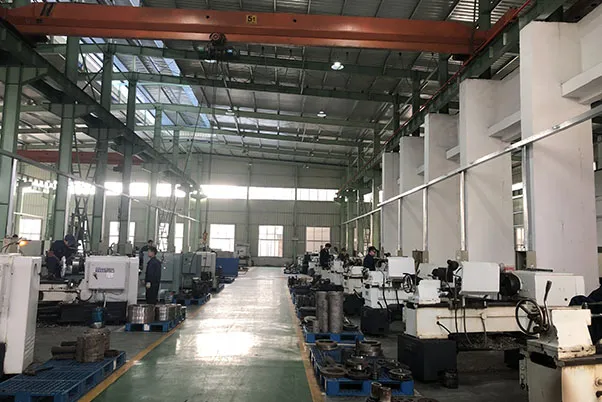

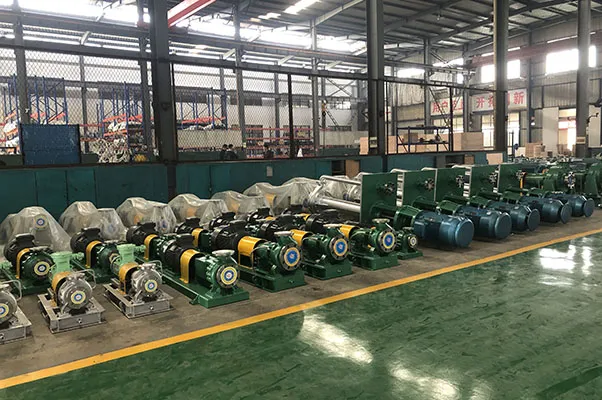

Company profile:

Product introduction:

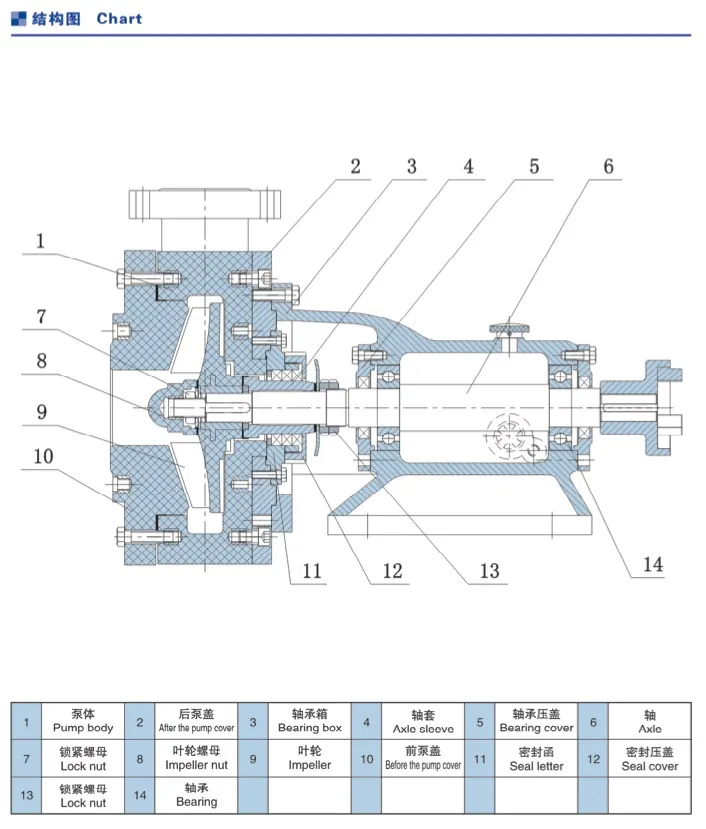

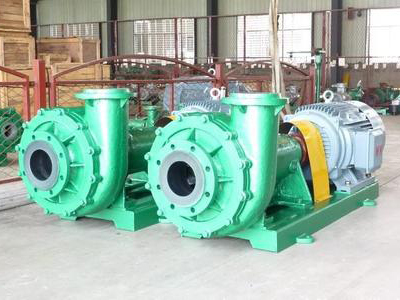

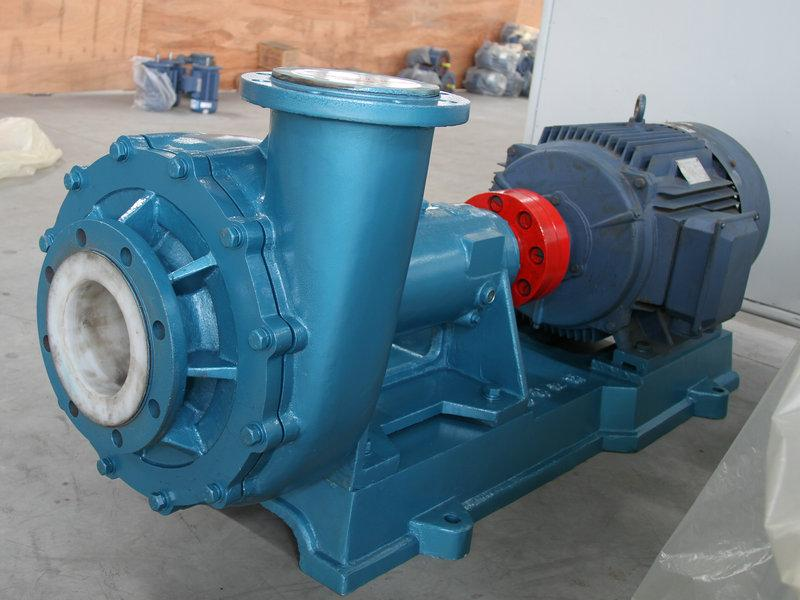

This pump series is a cantilever-type horizontal single-stage-single-suction centrifugal pump. Its flow contact parts are made of steel-lined polyethylene with ultra-high molecular weight(UHMWPE). The material is a new corrosion-and abrasion-resistant engineering plastic for the use of pump in the world. Its unique features are good resistance to abrasion, good resistance to shock(specially for low temperature shock), resistance to creep deformation(resistance to crack resulted from ambient stress), and excellent resistance to corrosion.

The pump is of remarkable characteristics: multifunction, i.e. The pump is suitable for many working conditions. For example, it can be used in conveying acid and alkali clear liquids of slurry, varieties of corrosive mine slurries of metallurgical industry, varieties of thin acids of sulfuric acid industry, varieties of waste water of environment protection industry, etc. Because of the resistance to corrosion and abrasion, it is widely used.



Application fields:

This series of pump is mainly used in industries of oil refinery, petrochemical industry, coal chemical industry, power plant, environmental protection engineering, polluted water treatment and cement plant, etc.

Suitable for transporting all kinds of clean, particle free or particle contained slurry, polluted water, neutr or corrosive medium.

Standard:

ISO2858. GB/T5656

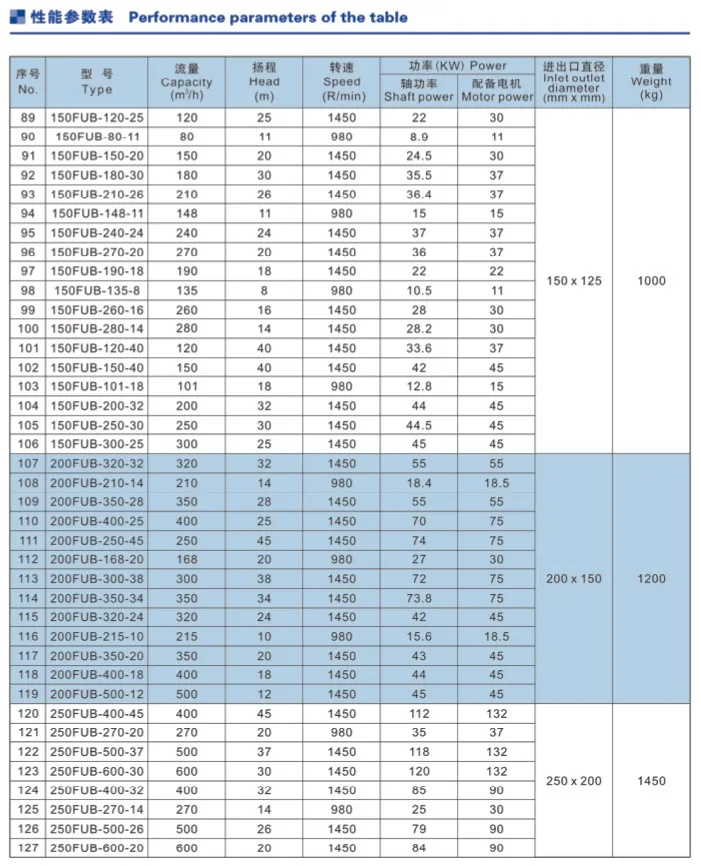

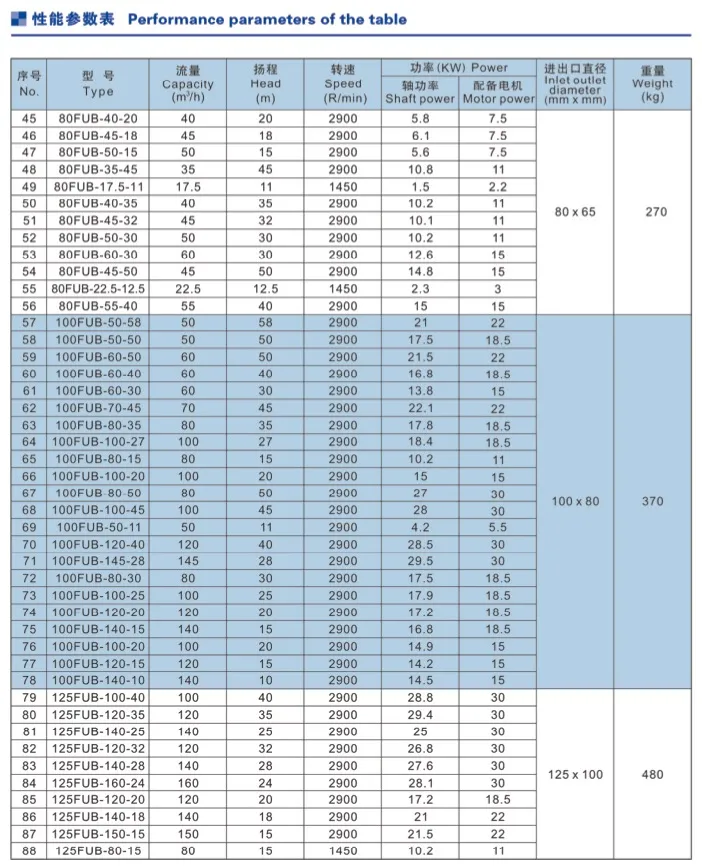

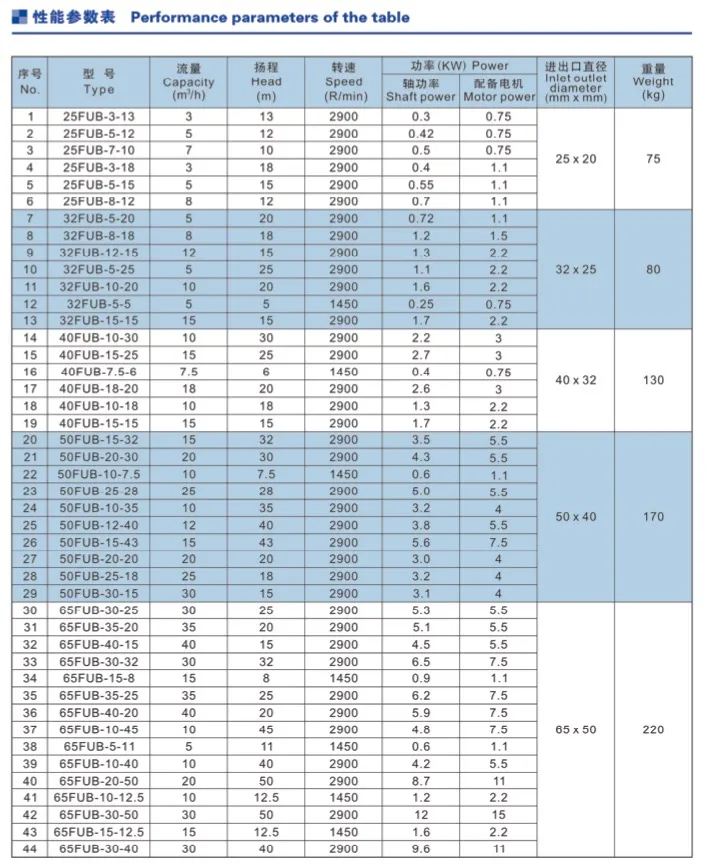

Parameter range:







Company certificate:

ISO14001:2005                             BSOHSAS18001:2007                            ISO9001:2005


FAQ:

1.Question: How about delivery time?
   Answer: It takes about 30 days for production.

2.Question: What's your payment term?
   Answer: 30% T/T in advance, 70% paid before delivery.
                 L/C at sight
                 Western Union

3.Question: What's the expected service life of your pump?
   Answer: 15 years under good condition and maintenance. We give 1 year guarantee for the pump.

4.Question: What materials of pumps you can produce?
   Answer: We can use materials such as Ni-Hard alloy, 1Cr18Ni9Ti, 304L, CW-2, 316L, 904L, CD4MCu, MM-4, 2507, double-phase steel series, J-1 alloy, JM3, JM6, Kazak B, C alloy, Monel alloy, Ti, Ni alloy.
