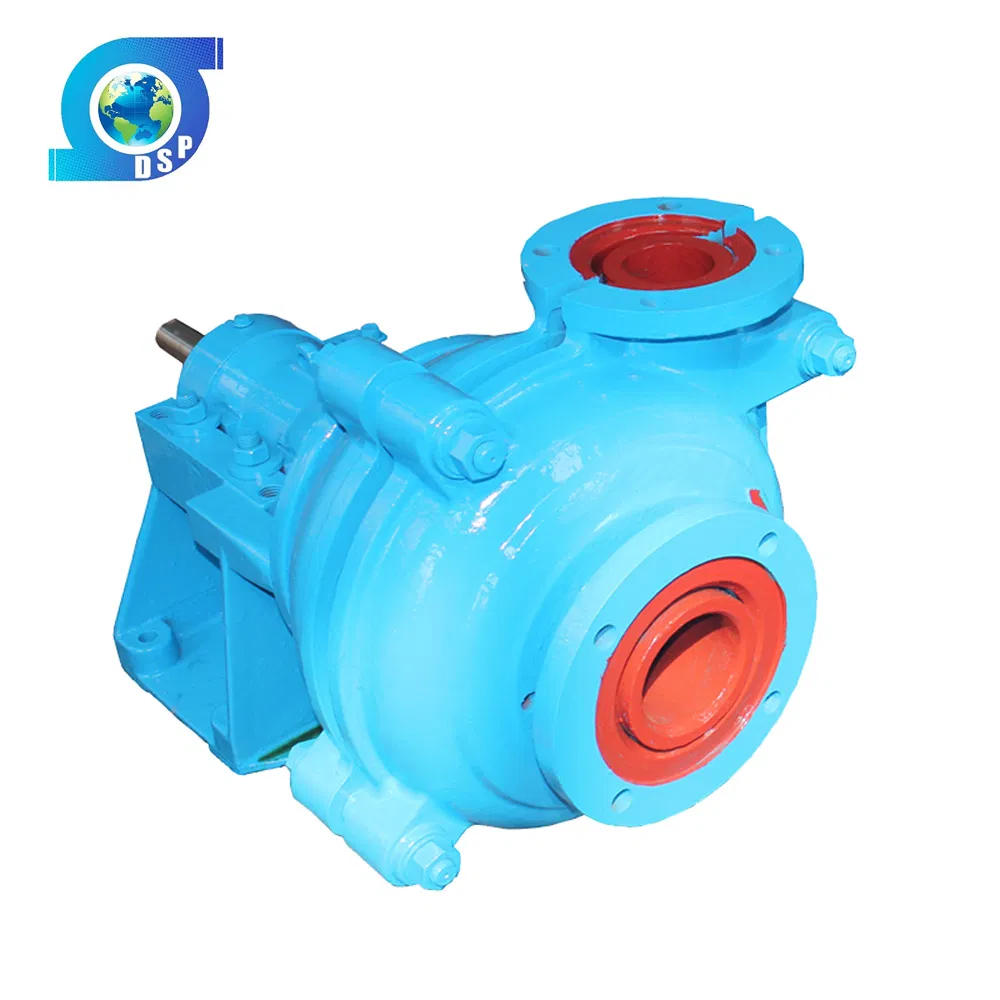

China Phosphoric Acid Mud Water Anti-Corrosive Rubber Lined Slurry Pump

Product Description

Introduction:
1. HS series slurry pump is designed for the continuous pumping of high abrasive, high density slurries with minimal maintenance requirements. The wearing parts are made of ultra chrome or and rubber. It will maintain high efficiency over the wear life of its components.

2. The metal wet parts and rubber ones can be interchangeable for handling different liquids or slurries.

3. HS slurry pumps are available in sizes ranging from 1 inch to 18 inch discharge and feature high efficiency performance capable of flow rates from 10.8 to 5400 m³/h and heads up to 125 meters for high head models.

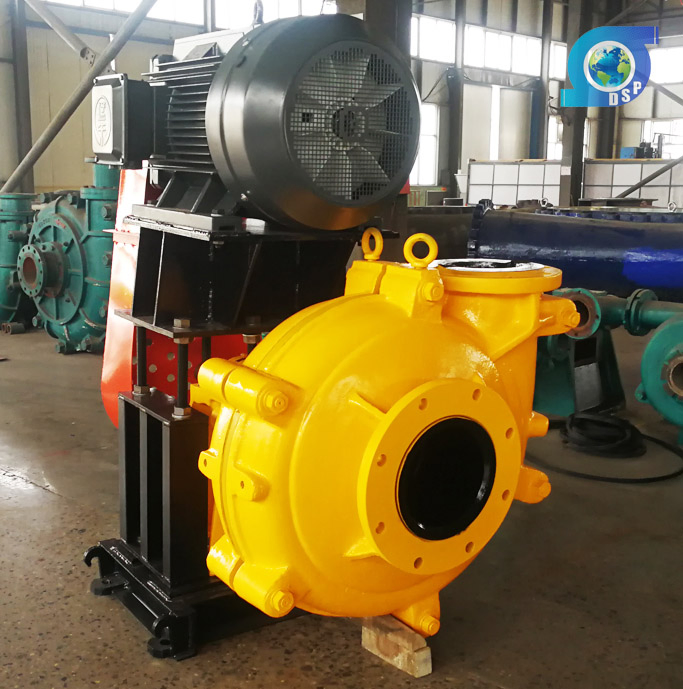

Phosphoric Acid Mud Water Anti-Corrosive Rubber Lined Slurry Pump

Features:

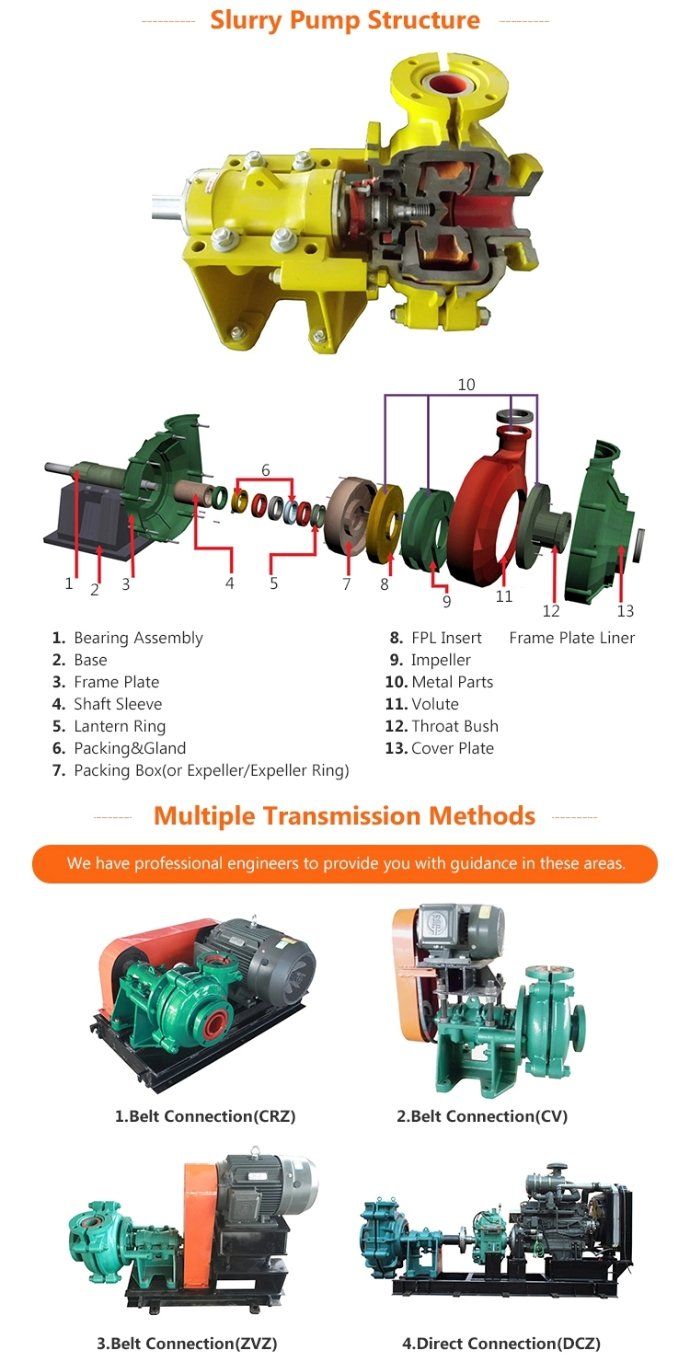

1. Cylindrical structure of bearing assembly: convenient to adjust the space between impeller and front liner
and can beremoved completely;
2. Interchangeable anti-abrasive wet parts made of high-chrome alloys;
3. Casing halves of ductile iron with external reinforcing ribs provide high operating pressure capabilities
and an extra measure of safety.
4. The discharge branch can be oriented to any eight positions at the interval of 45 degrees;
5. Various drive types: DC(direct connection), V-belt drive, gear box reducer, hydraulic couplings, VFD,
SCR control, etc;
6. The shaft seal uses the packing seal, expeller seal and mechanical seal

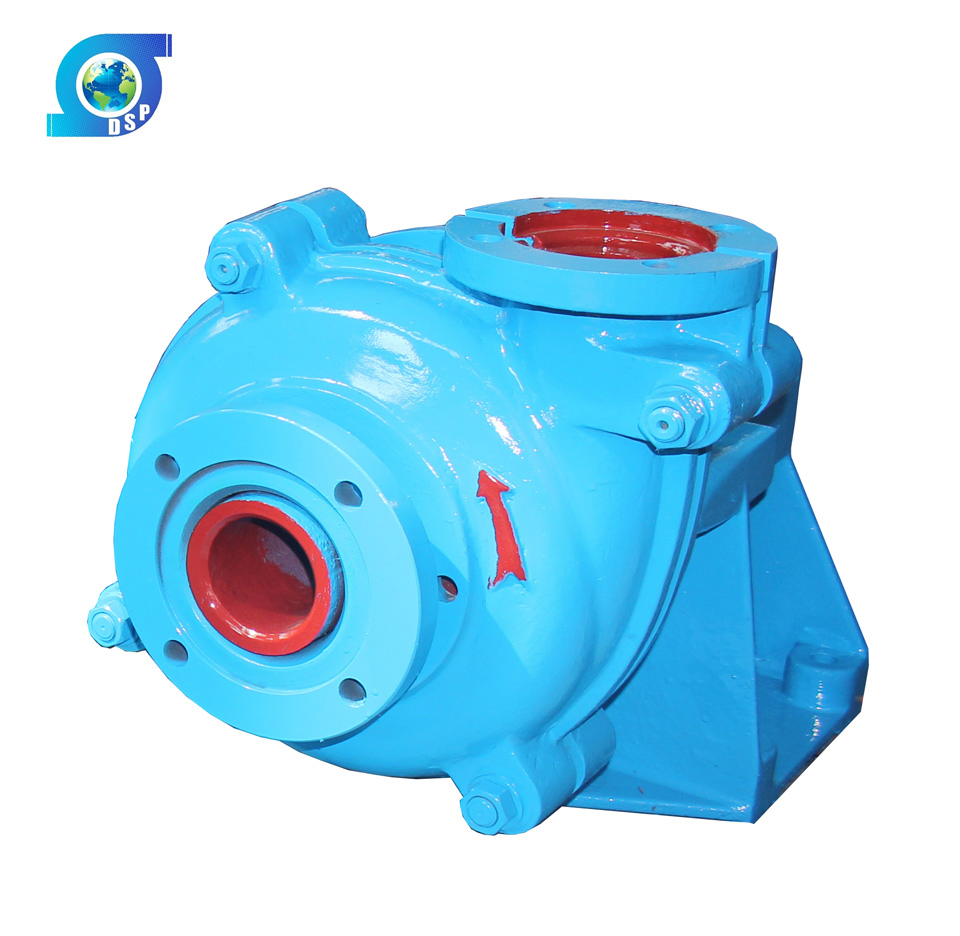

Phosphoric Acid Mud Water Anti-Corrosive Rubber Lined Slurry Pump

Typical Application:

• Mineral processing	• Mining	• Coal Washery	• Cyclone feeds
• Bentonite	• Chemical slurry	• Tailing	• Mill grinding
• Ash handing	• Tunnel	• Waste sludge	• Coarse sand
• Lime mud	• Phosphoric acid	• Dredging	• Construction
• Alumina Industry	• Power Plant	• Potash Fertilizer Plant	• Other industries
• Iron ore sand	• Copper Concentration	• Gold mine	•Molybdenum

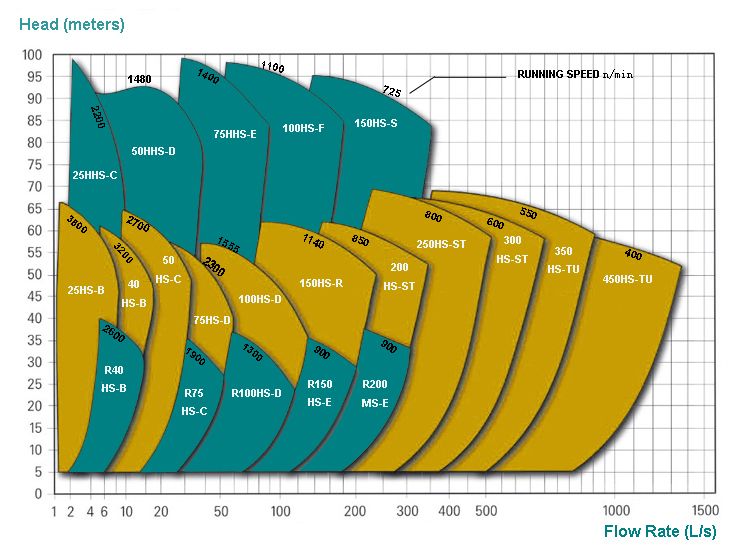

Model	Max Power (Kw)	Inlet & Outlet size (inch)	Material for Wear Parts	Flow Rate (Q)		Head (H) meter	Speed (RPM)	Impeller Dia. (mm)
Model	Max Power (Kw)	Inlet & Outlet size (inch)	Material for Wear Parts	m³/hr	l/s	Head (H) meter	Speed (RPM)	Impeller Dia. (mm)
25HS-B	15	1.5/1	M	12.6~28.8	3.5~8	6~68	1200~3800	152
25HS-B	15	1.5/1	R	10.8~25.2	3~7	7~52	1400~3400	152
40HS-B	15	2/1.5	M	32.4~72	9~20	6~58	1200~3200	184
40HS-B	15	2/1.5	R	25.2~54	7~15	5.5~41	1000~2600	178
50HS-C	30	3/2	M	39.6~86.4	11~24	12~64	1300~2700	214
50HS-C	30	3/2	R	36~75.6	10~21	13~46	1300~2300	213
75HS-C	30	4/3	M	86.4~198	24~55	9~52	1000~2200	245
75HS-C	30	4/3	R	79.2~180	22~50	5~34.5	800~1800	245
100HS-D	60	6/4	M	162~360	40~100	12~56	800~1550	365
100HS-D	60	6/4	R	144~324	40~90	12~45	800~1350	365
150HS-E	120	8/6	M	360~828	100~230	10~61	500~1140	510
150HS-E	120	8/6	R	324~720	90~200	7~49	400~1000	510
200MS-E	120	10/8	M	666~1440	185~400	14~60	600~1100	549
200HS-ST	560	10/8	M	612~1368	170~380	11~61	400~850	686
200HS-ST	560	10/8	R	540~1188	150~330	12~50	400~750	686
250HS-ST	560	12/10	M	936~1980	260~550	7~68	300~800	762
250HS-ST	560	12/10	R	720~1620	200~450	7~45	300~650	762
300HS-TU	560	14/12	M	1260~2772	350~770	13~63	300~600	965
300HS-TU	560	14/12	R	1152~2520	320~700	13~44	300~500	965
350HS-TU	1200	16/14	M	1368~3060	380~850	11~63	250~550	1067
450HS-TU	1200	20/18	M	2520~5400	700~1500	13~57	200~400	1370
25HHS-C	30	1.5/1	M	16.2~34.2	4.5~9.5	25~92	1400~2200	330
50HHS-D	60	3/2	M	68.4~136.8	19~38	25~87	850~1400	457
75HHS-E	120	4/3	M	126~252	35~70	12~97	600~1400	508
100HHS-E	120	6/4	M	324~720	90~200	30~118	600~1000	711
150HHS-S	560	8/6	M	468-1008	130~280	20~94	500~1000	711

For the material of wearing parts,
"M" = metal, ultra chromium alloy; "R" = anti-abrasive rubber

Phosphoric Acid Mud Water Anti-Corrosive Rubber Lined Slurry Pump
