Product Description
Shijiazhuang Naipu Pump Co., Ltd is a modern pump industry enterprise engages in professional
manufactore, scientific research, develop, sales and service.
Our company is specialized in manufacturing: Slurry pump and Slurry pump parts, Dredging pump and
Dredging pump parts, are widely used in mine, metallurgy, coal, electric power ,dredge and other sectors of the national economy. These pumps are sold to South America, Africa, Southeast Asia, Russia and so on more than
20 countries and regions. Our products have won unanimous favorable comments from the market.
The quality management systems of Naipu pump are accredited to ISO 9001:2000.
Naipu Pump also Accept OEM (Original Equipment Manufacture)Order,such as the shafts,shaft sleeves,bearing housing,etc. We also can design and produce the compelete pumps for your special need.

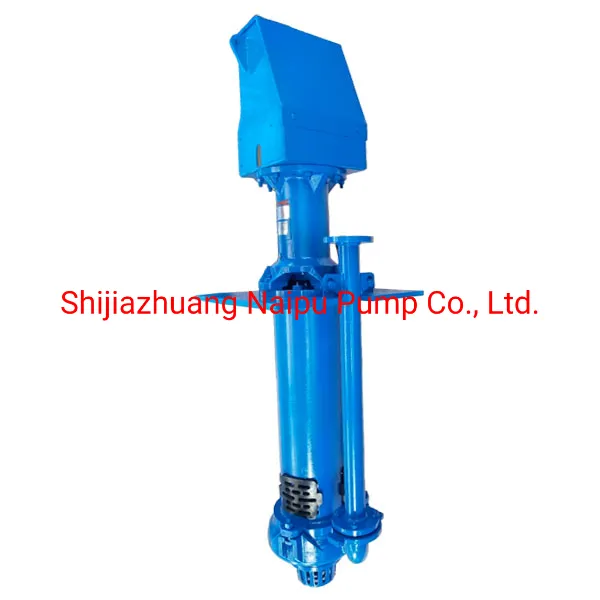

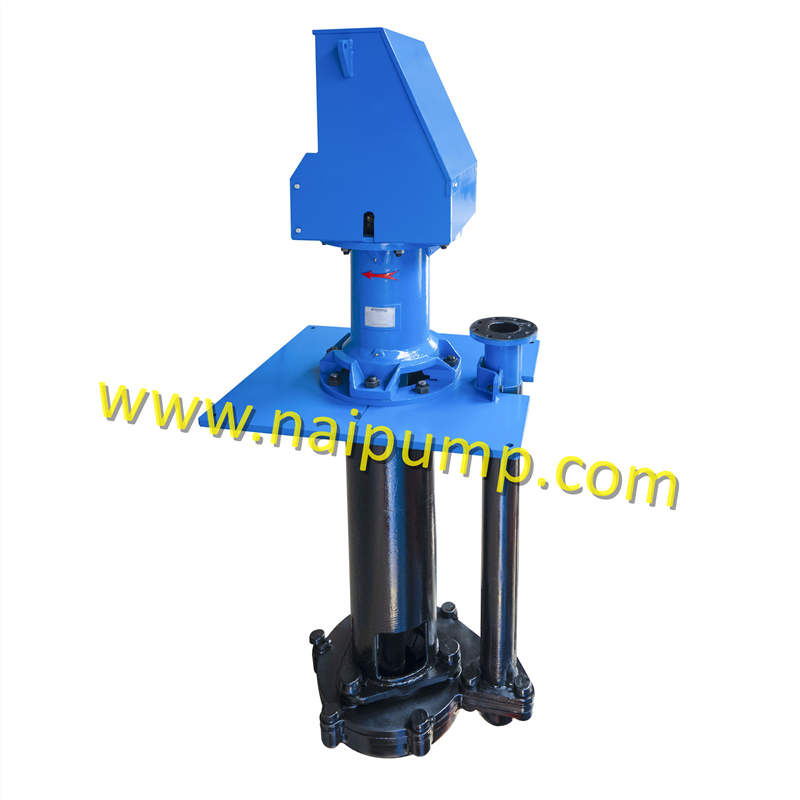

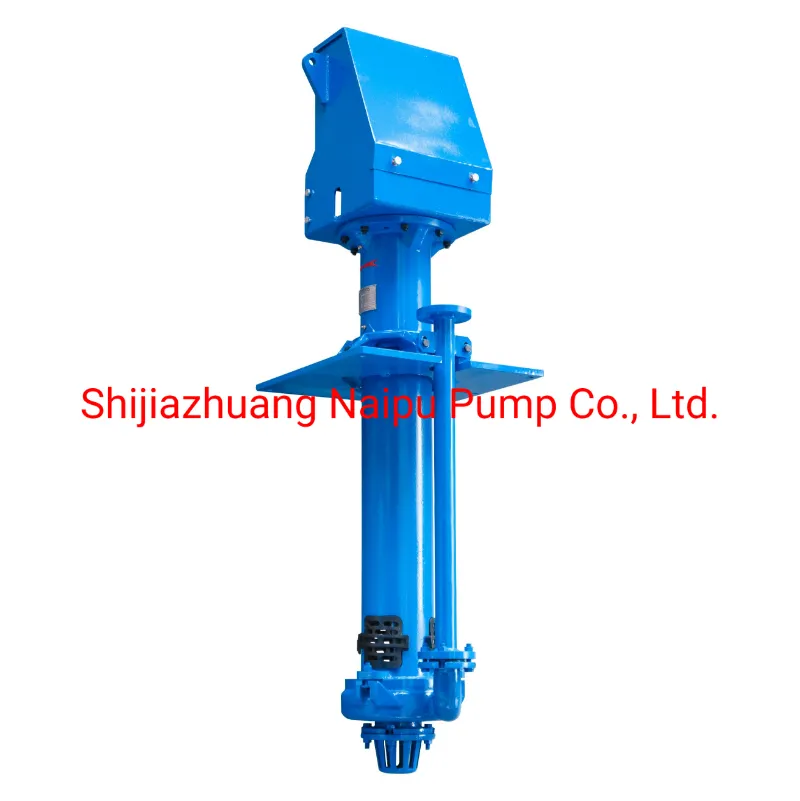

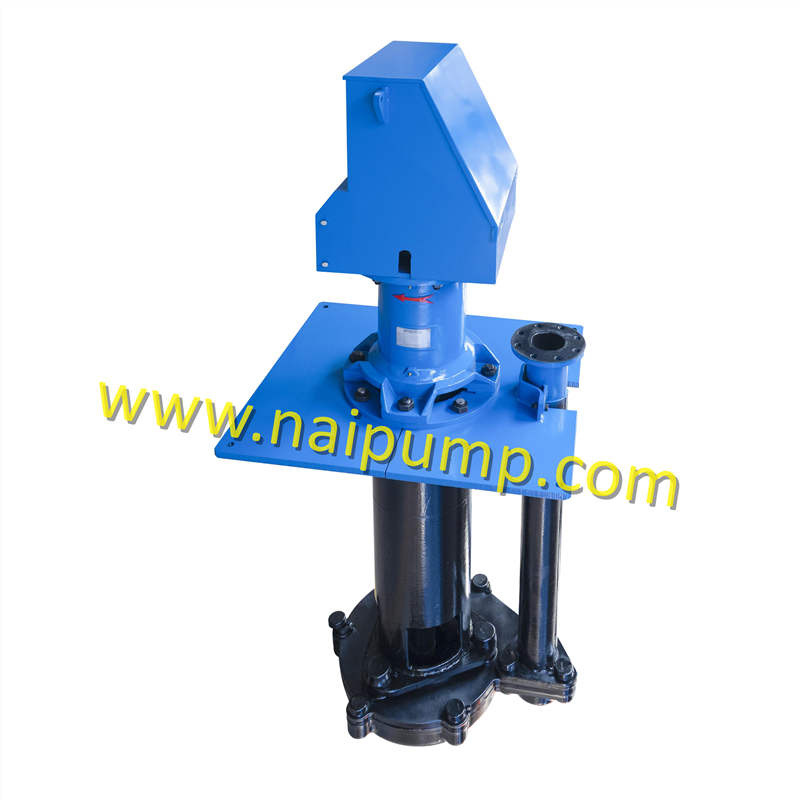

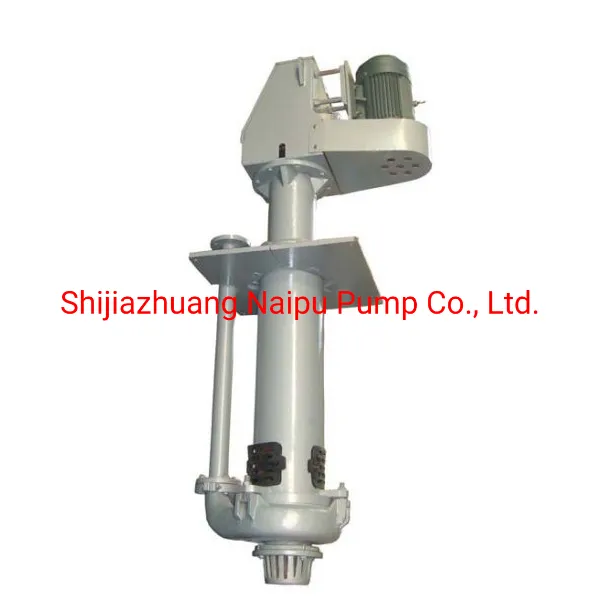

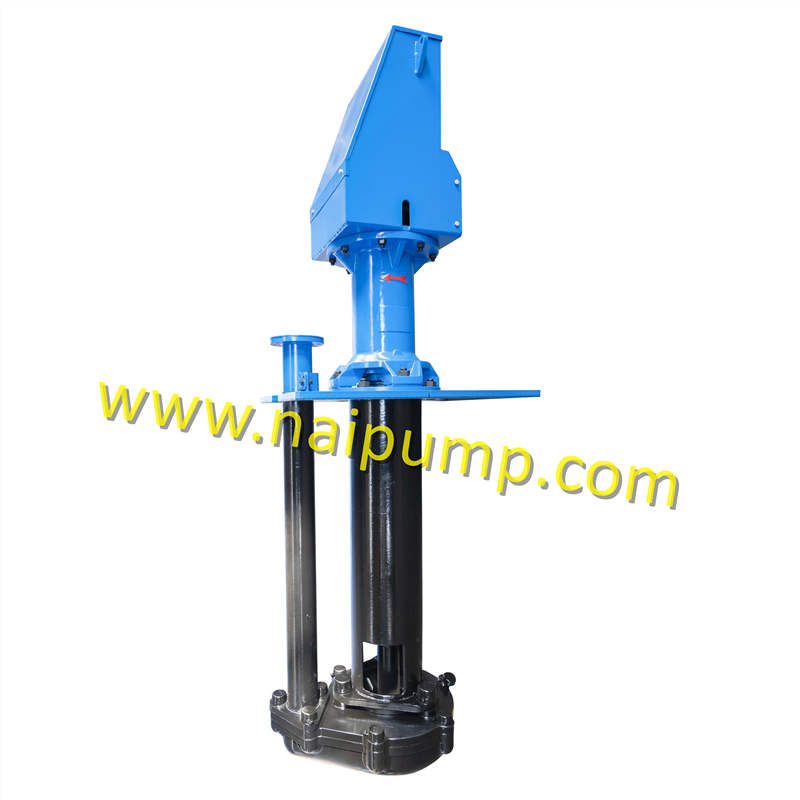

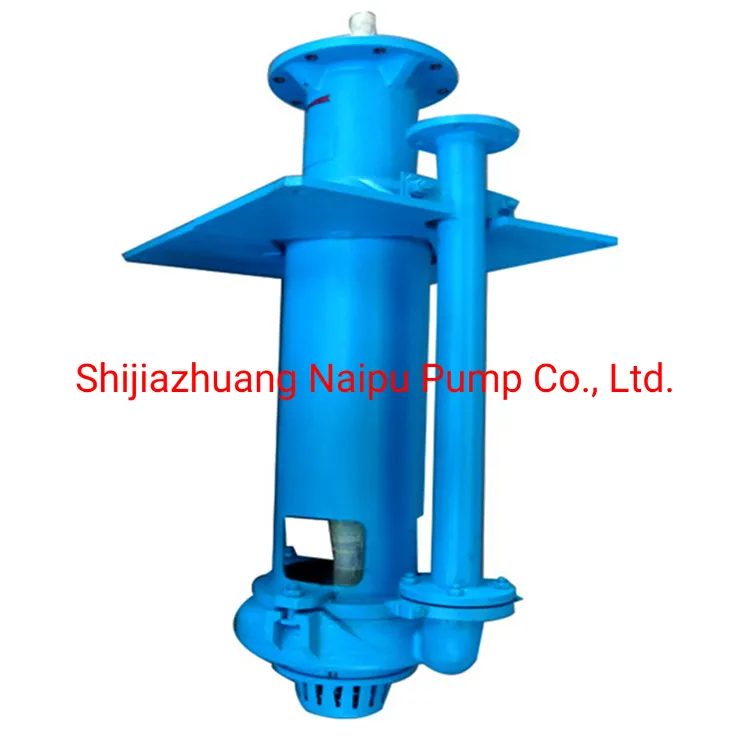

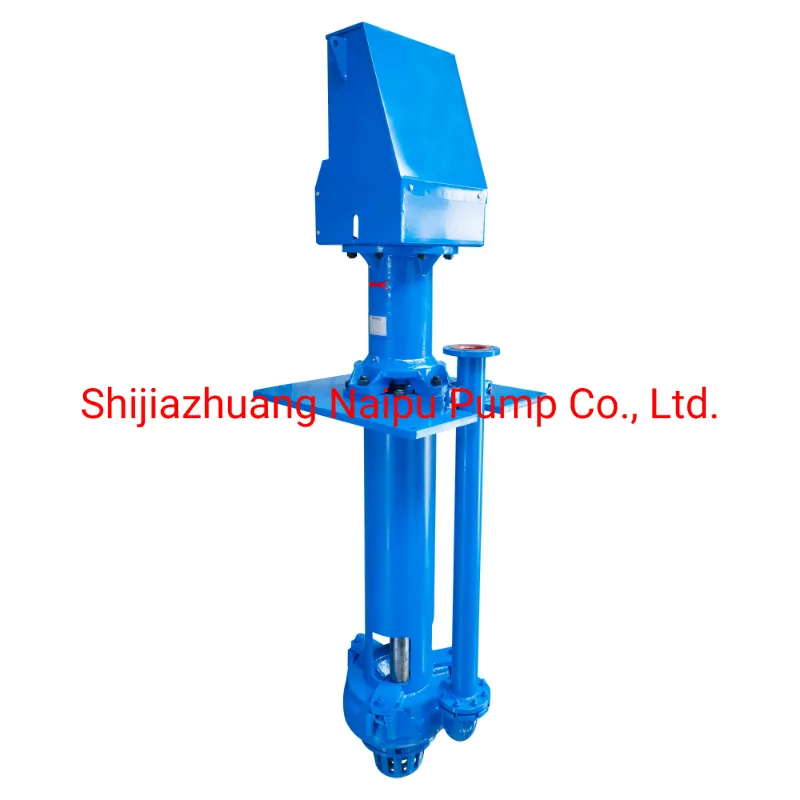

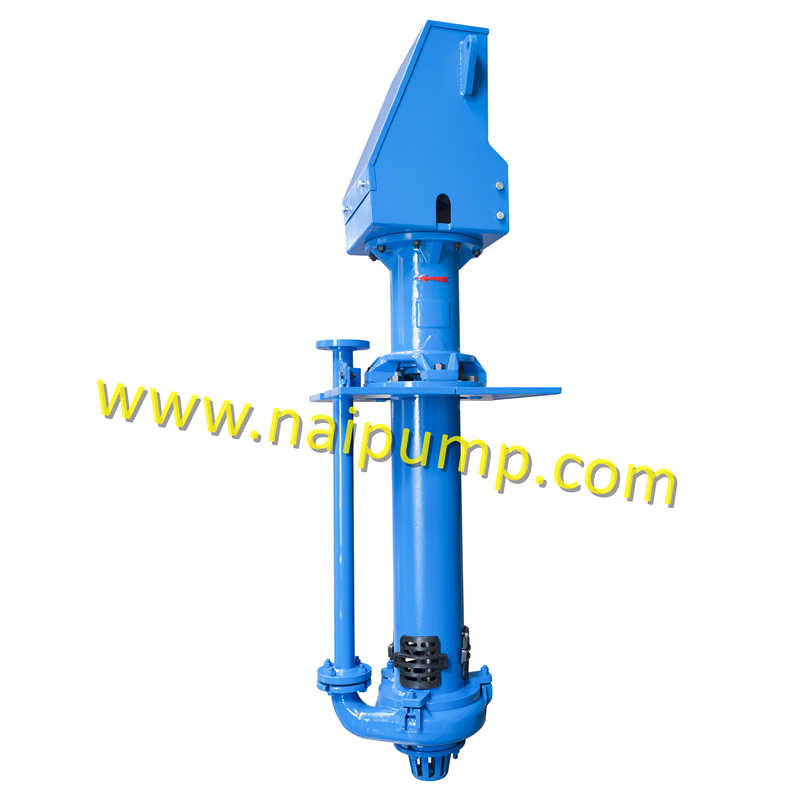

1.Naipu SP/SPR Vertical sump pump
vertical slurry pumps | |
vertical slurry pumps model | 40PV-SP(R),65QV-SP(R),100RV-SP(R),150SV-SP(R) |
Material | Cast iron or rubber or customized |
Color | Green and adjustable |
| Shaft | Vertical |
Impeller | Semi-open impeller |
Drive | Belt or coupling |
Speed | 400r/min-2200r/min, adjustable |
Theory | Centrifugal pump |
Structure | Single stage pup |
Usage | Slurry, mud |
Power | Electric or diesel |
Standard or Nonstandard | Standard |
Application | Mine, coal industry, power station |
Outlet diameter | 40-200mm |
Capacity | 7.5-828m³/h |
Head | 4-37m |
Power | 1.1-185kw |
Warranty | 1year |
Certificate | ISO9001 |
OEM | Acceptable |
Feature | Abrasion resistant, no clogging |
2.Application
The SP SPR series vertical slurry pumps are suited for handling abrasive or corrosive, dense slurry with large particle size, SP (SPR) vertical sump pump are mainly applicable to transport abrasive, coarse particle, high concentration slurry. They are widely used in metallurgy, mining, coal, electric power, building materials, environmental protection and other departments
1.Widely used for electric power.
2.Widely used for building materials.
3.Widely used for metallurgy.
4.Widely used for mining.
5.Widely used for coal.
3. Materials of Construction for Naipu SP vertical slurry pumps
wet end parts (Impeller/casing/back and front liner) | COLUMN | DISCHARGE | SEALS | |
| Standard | Metal(A05/A07) Rubber(R08/R26/S42/S31,etc) | Mild Steel Mild Steel Rubber Lined | Mild Steel Mild Steel Rubber Lined | Natural Rubber |
| Special requirements | EPDM Hypalon Polyurethane 316 SS W 151 | Nitrile 316 SS | Nitrile 316 SS | EPDM |

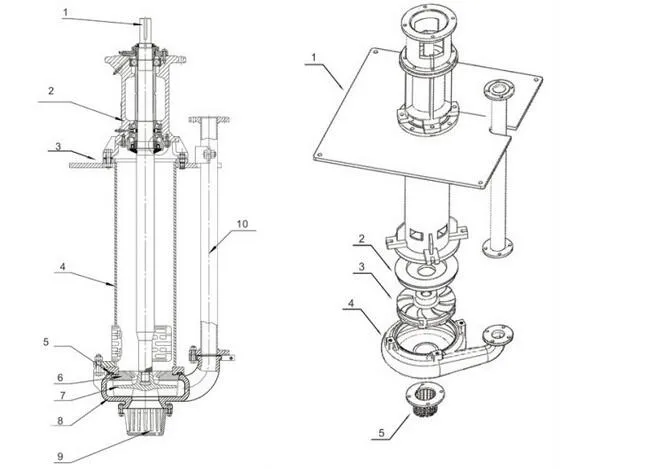

4. Construction drawing of SP/SPR pump
| 1.Shaft | 2.Bearing assembly | 3.mounting plate |
| 4. support | 5.seal gasket | 6.Back Guard Plate |
| 7.impeller | 8.pump body | 9.Filter Screen |
| 10. discharge pipe |
| 1.mounting plate | 2.Back Guard Plate | 3.impeller | 4. pump body | 5. filter screen |

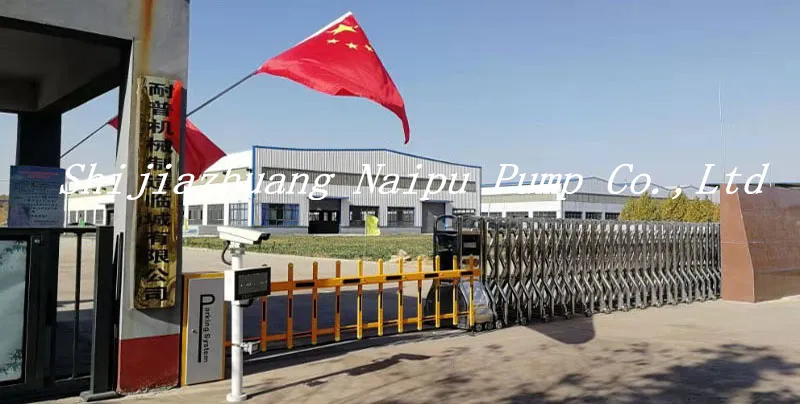

Our factory:
How to contact us?

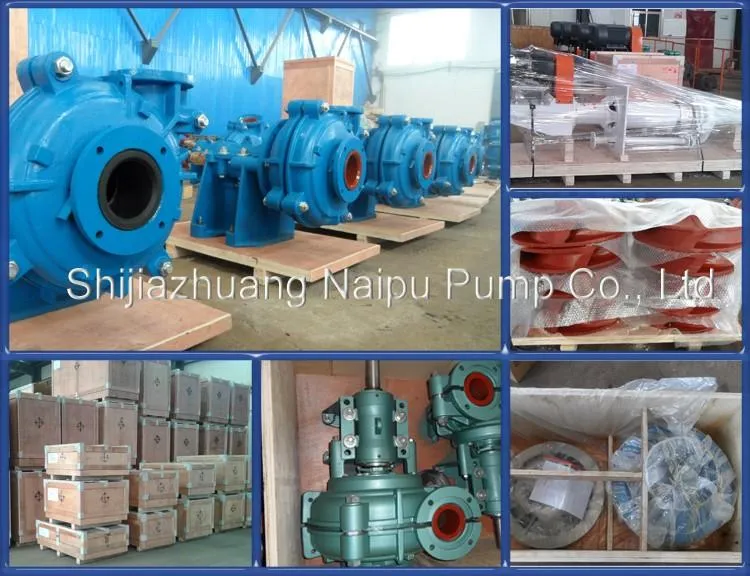

Packing and shipping:
FAQ:
Q1. What is your product range?
A: Centrifugal pump, slurry pump, sand pump ,gravel pump, Dredging pump, clean water pump, sewage pump, chemical pump, single stage pump, double suction pump, industry pump, paper pulp pump, mud pump, Sludge pump ,etc
Q2. Are you a manufacturer?
A:Yes, Our Factory located in Shijiazhuang , Hebei , China . Welcome to visit.
Q3. What information should I let you know if I want to get a quotation?
A: Usage , Pump capacity, pump head , Slurry SG, The More the Better.
If you are using slurry pump, Please let me know the type you are using now.
Q4. What the the MQQ?
A: 1 set
Even 1 piece pump spare
Q5. How the Delivery terms?
A:By sea.By plane, as per customer's request
Q6. How to gurantee the quality.
A: All our pump and spare parts pass ISO 9001:2008 and CE certificate. Warranty time is 12 month.
We want establish long term cooperation, Quality is our life.
