Mineral Processing Slurry Pump
Model: BL, BM BH, BHHCapacity: 10.8~5400m3 /hHead: 3~118mMotor power: 15~1200KWIntroduction: BL BM, BH and BHH series pumps contain cantilever and horizontal centrifugal pumps, which apply to transport slurry with strong corrosion proof and high concentration for many industries such as metallurgy, ......
Send Inquiry
Product Description
Model: BL, BM BH, BHH
Capacity: 10.8~5400m3 /h
Head: 3~118m
Motor power: 15~1200KW

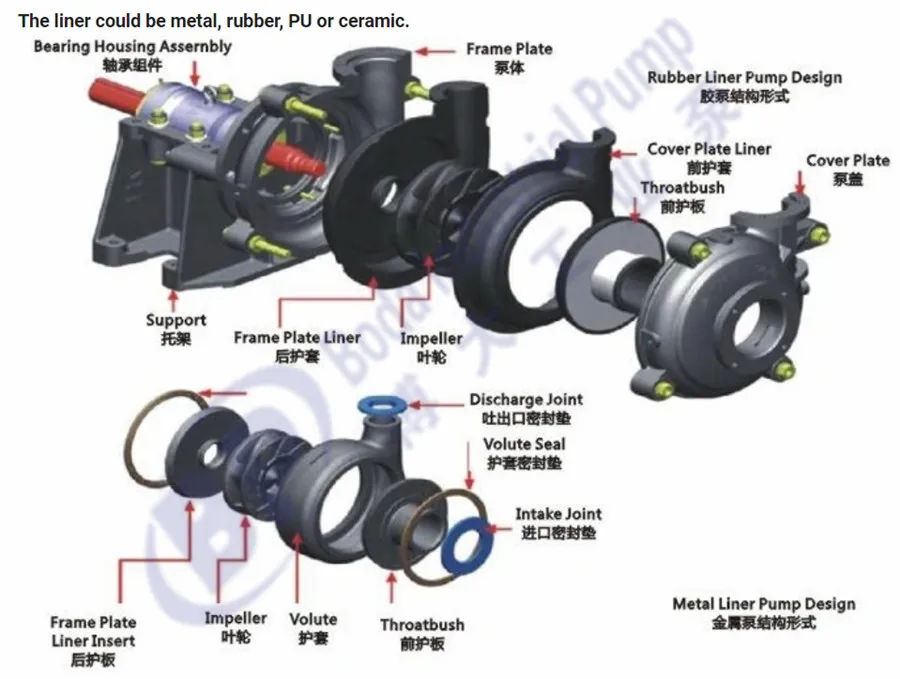

Introduction: BL BM, BH and BHH series pumps contain cantilever and horizontal centrifugal pumps, which apply to transport slurry with strong corrosion proof and high concentration for many industries such as metallurgy, mine, coal, electric power, building materials and so on. The kind of pump can be used in series for multi stages. Its pump body consist of replaceable antifriction metal lining or rubber lining, and its impeller is made of antifriction metal or rubber. The pump body lining and impeller of BHH serial pump are made of antifriction metal only. The shaft seal of BL .BM, BH and BHH serials pumps may adopt packing seal or centrifugal seal. Pump outlet can be spaced by 45. According to requirement, and it may be installed by rotating eight different angles.
Slurry Pump Performance Table:
OEM Service
Based on many years of rich experience in slurry pump manufacturing and design, BODA can undertake OEM customization for the whole set of pump and various spare parts. The slurry pump spare parts can be made of various material according to customer's requirement, Such as: Alloy 20, Hastelloy Alloy, A (6 1 ) and so on.
Our company undertakes the design, processing and transformation of various special pump parts. According to the user's requirements, BODA Factory can manufacture various materials and components to meet the needs of different working conditions. Or in accordance with user requirements on the existing equipment technology transformation, combined with our company's rich hydraulic model, through advanced computer simulation technology, to provide users with a complete and effective solution.
Application:
The parts are widely used in Main Applications: Heavy Mining Mineral Processing Sand and Gravel Coal Prep Cyclone Feeds Aggregate Processing Fine Primary Mill Grinding Chemical Slurry Service Tailings Secondary Grinding Industrial Processing Pulp And Paper Food Processing Cracking Operations Ash Handling Pipeline Transport High Velocity Hydraulic Transport Food Processing Explosive Sludge In Metal Smelting River And Pond Dredging Heavy Refuse Removal Larger Particle Or Low NPSHA Applications Continuous (Snore) Sump Pump Operation Abrasive Slurries High Density Slurries Large Particle Slurries Sump Drainage Wash down Floor Drainage Mixing Iron Ore Cooper Diamond Alumina Coal Gold Kaolin Phosphorite Steel Palm Suger Chemical Power FGD Frac Sand Blending Construction City Sewage etc.

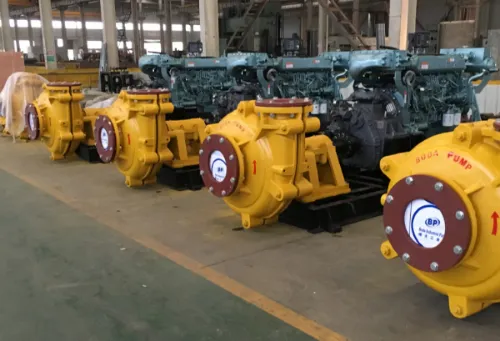

Slurry Pump, gear box and diesel engine

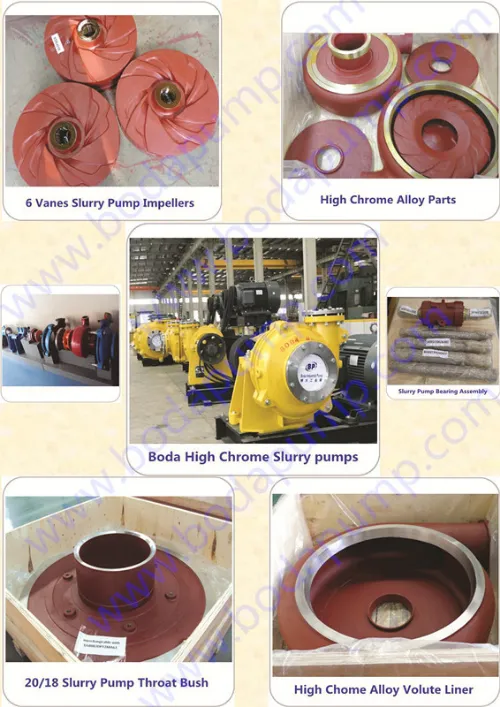

High Chrome Alloy Slurry Pump Parts:

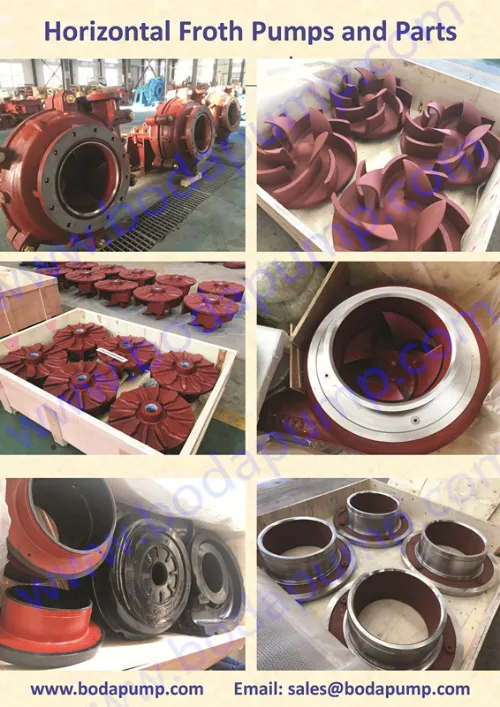

Horizontal Froht Pump and Pump Spare :
FAQ
1. What Products does BODA pump mainly produce?
BODA mainly Produce Slurry Pump, Gravel sand Pump, Dredging Pump, Centrifugal water pump and Spare Parts. Not only Pump parts, but also others wear casting parts if there is drawing or sample.
2. Is BODA direct factory or trader?
BODA own foundry workshop, Machining Workshop, and Assembly workshop.
Welcome to visit our factory anytime.
3. The Min MQQ
The MQQ is one pcs spare parts or one set bare pump
4. What information is required for quotes?
If you need the spare parts, we need to know the parts Code and material.
If you need the whole pump set, we need to know the usage? The flow, head, and SG, Corrosive or not? The more detailed the better.
Welcome to Contact Me
Shijiazhuang Boda Industrial Pump Co.,Ltd : alisa
Capacity: 10.8~5400m3 /h
Head: 3~118m
Motor power: 15~1200KW
Introduction: BL BM, BH and BHH series pumps contain cantilever and horizontal centrifugal pumps, which apply to transport slurry with strong corrosion proof and high concentration for many industries such as metallurgy, mine, coal, electric power, building materials and so on. The kind of pump can be used in series for multi stages. Its pump body consist of replaceable antifriction metal lining or rubber lining, and its impeller is made of antifriction metal or rubber. The pump body lining and impeller of BHH serial pump are made of antifriction metal only. The shaft seal of BL .BM, BH and BHH serials pumps may adopt packing seal or centrifugal seal. Pump outlet can be spaced by 45. According to requirement, and it may be installed by rotating eight different angles.
Slurry Pump Performance Table:
Type BM BH | Allowable Mating Max.Power (kw) | Clear Water Performance | Impeller | ||||||
| Capacity Q | Head H (m) | Speed n (r/min) | Max EFF η(%) | NPSH) (m) | No of Vanes | Impel Dia(mm) | |||
| (m 3 /h) | (L/S) | ||||||||
| 1.5/1B-BH | 15 | 12.6-28.8 | 3.5-8 | 6-68 | 1200-3800 | 40 | 2-4 | 5 | 152 |
| 2/1.5B-BH | 15 | 32.4-72 | 9-20 | 6-58 | 1200-3200 | 45 | 3.5-8 | 5 | 184 |
| 3/2C-BH | 30 | 39.6-86.4 | 11-24 | 12-64 | 1300-2700 | 55 | 4-6 | 5 | 214 |
| 4/3C-BH | 30 | 86.4-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 5 | 245 |
| 4/3D-BH | 60 | ||||||||
| 6/4D-BH | 60 | 162-360 | 45-100 | 12-56 | 800-1550 | 65 | 5-8 | 5 | 365 |
| 6/4E-BH | 120 | ||||||||
| 6/4D-BH | 60 | 180-396 | 50-110 | 7-61 | 600-1600 | 55 | 3-8 | 4 | 372 |
| 6/4E-BH | 120 | ||||||||
| 8/6E-BH | 120 | 360-828 | 100-230 | 10-61 | 500-1140 | 72 | 2-9 | 5 | 510 |
| 8/6R-BH | 300 | ||||||||
| 8/6E-BH | 120 | 360-828 | 100-230 | 7-52 | 400-1000 | 70 | 2.5-6 | 4 | 536 |
| 8/6R-BH | 300 | 360-828 | 100-230 | 7-52 | 400-1000 | 70 | 2.5-6 | 4 | 536 |
| 10/8ST-BH | 560 | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 5 | 686 |
| 12/10ST-BH | 560 | 936-1980 | 260-550 | 7-68 | 300-800 | 82 | 6 | 5 | 762 |
| 14/12ST-BH | 560 | 1260-2772 | 350-770 | 13-63 | 300-600 | 77 | 3-10 | 5 | 965 |
| 16/14ST-BH | 560 | 1368-3060 | 380-850 | 11-63 | 250-550 | 79 | 4-10 | 5 | 1067 |
| 16/14TU-BH | 1200 | ||||||||
| 10/8E-BM | 120 | 540-1440 | 150-400 | 14-60 | 600-1100 | 73 | 4-10 | 5 | 549 |
| 10/8R-BM | 300 | ||||||||
| Type BL | Allowable Mating Max. Power (Kw) | Clear Water Performance | Impeller | ||||||
| Capacity/ Q m ³ /hr | Head/m | Speed /rpm | Max Efficiency /% | NPSH /m | Nos of Vane s | Impeller Diameter /mm | |||
| 20A-BL | 7.5 | 2.34-10.8 | 6--37 | 1400--3000 | 30 | 4 | 152.4 | ||
| 50B-BL | 15 | 16.2--76 | 9--44 | 1400--2800 | 55 | 3.5--8 | 5 | 190 | |
| 75C-BL | 30 | 18-151 | 4--45 | 900--2400 | 57 | 3--6 | 4 | 229 | |
| 100D-BL | 60 | 50-252 | 7-46 | 800--1800 | 60 | 2--3.5 | 4 | 305 | |
| 150E-BL | 120 | 115--486 | 12-51.5 | 800--1500 | 65 | 2--6 | 4 | 381 | |
| 200E-BL | 120 | 234--910 | 9.5--40 | 600--1100 | 64 | 3-6 | 4 | 457 | |
| 250E-BL | 120 | 396--1425 | 8--30 | 500--800 | 77 | 2--10 | 5 | 550 | |
| 300S-BL | 560 | 468--2538 | 8--60 | 400--950 | 79 | 2-10 | 5 | 653 | |
| 350S-BL | 560 | 650--2800 | 10--59 | 400--840 | 81 | 3--10 | 5 | 736 | |
| 400ST-BL | 560 | 720--3312 | 7--51 | 300--700 | 80 | 2--10 | 5 | 825 | |
| 450 ST-BL | 560 | 1008--4356 | 9--48 | 300--600 | 80 | 2--9 | 5 | 933 | |
| 550 TU-BL | 1200 | 1980-7920 | 10-50 | 250-475 | 86 | 4-10 | 5 | 1213 | |
OEM Service
Based on many years of rich experience in slurry pump manufacturing and design, BODA can undertake OEM customization for the whole set of pump and various spare parts. The slurry pump spare parts can be made of various material according to customer's requirement, Such as: Alloy 20, Hastelloy Alloy, A (6 1 ) and so on.
Our company undertakes the design, processing and transformation of various special pump parts. According to the user's requirements, BODA Factory can manufacture various materials and components to meet the needs of different working conditions. Or in accordance with user requirements on the existing equipment technology transformation, combined with our company's rich hydraulic model, through advanced computer simulation technology, to provide users with a complete and effective solution.
Application:
The parts are widely used in Main Applications: Heavy Mining Mineral Processing Sand and Gravel Coal Prep Cyclone Feeds Aggregate Processing Fine Primary Mill Grinding Chemical Slurry Service Tailings Secondary Grinding Industrial Processing Pulp And Paper Food Processing Cracking Operations Ash Handling Pipeline Transport High Velocity Hydraulic Transport Food Processing Explosive Sludge In Metal Smelting River And Pond Dredging Heavy Refuse Removal Larger Particle Or Low NPSHA Applications Continuous (Snore) Sump Pump Operation Abrasive Slurries High Density Slurries Large Particle Slurries Sump Drainage Wash down Floor Drainage Mixing Iron Ore Cooper Diamond Alumina Coal Gold Kaolin Phosphorite Steel Palm Suger Chemical Power FGD Frac Sand Blending Construction City Sewage etc.
Slurry Pump, gear box and diesel engine
High Chrome Alloy Slurry Pump Parts:
Horizontal Froht Pump and Pump Spare :
FAQ
1. What Products does BODA pump mainly produce?
BODA mainly Produce Slurry Pump, Gravel sand Pump, Dredging Pump, Centrifugal water pump and Spare Parts. Not only Pump parts, but also others wear casting parts if there is drawing or sample.
2. Is BODA direct factory or trader?
BODA own foundry workshop, Machining Workshop, and Assembly workshop.
Welcome to visit our factory anytime.
3. The Min MQQ
The MQQ is one pcs spare parts or one set bare pump
4. What information is required for quotes?
If you need the spare parts, we need to know the parts Code and material.
If you need the whole pump set, we need to know the usage? The flow, head, and SG, Corrosive or not? The more detailed the better.
Welcome to Contact Me
Shijiazhuang Boda Industrial Pump Co.,Ltd : alisa
