Mhf5a 2inch Outlet Centrifugal Water Pump for Industry Water Supply
MHF5A 2inch outlet centrifugal water pump for industry water supplyPUMPCast iron pump body and supportStainless steel/Brass impellerMax. Liquid temperature: +40ºCMax.Suction:+8m MOTORInsulation class: B or FProtection class: IPX4Max. ambient temperature: +40ºCCooling: External vent......
Send Inquiry
Product Description
MHF5A 2inch outlet centrifugal water pump for industry water supply
PUMP
Cast iron pump body and support
Stainless steel/Brass impeller
Max. Liquid temperature: +40ºC
Max.Suction:+8m
MOTOR
Insulation class: B or F
Protection class: IPX4
Max. ambient temperature: +40ºC
Cooling: External ventilation
PUMP INSTALLATION AND APPLICATIONS
It can be used to transfer clean water or other liquids similar to water in physical and chemical properties. It is suitable for industrial use and urban water supply, garden irrigation, long-distance water transfer, heating ventilation and air controlling, circulation and pressure bossting for cold and hot water, and supporting equipment etc

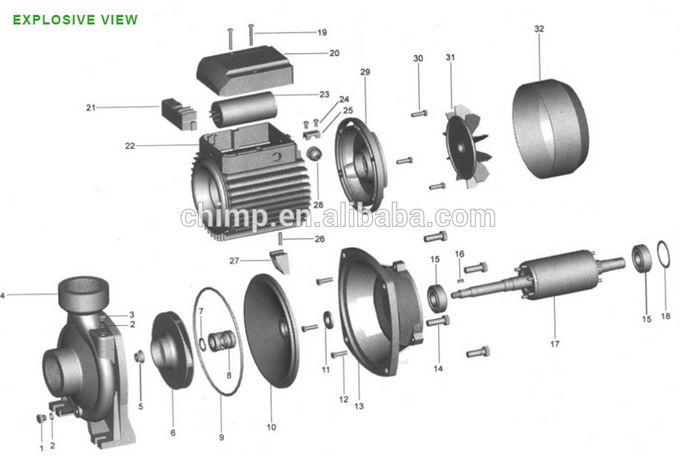

| NO. | DESCRIPTION | NO. | DESCRIPTION | NO. | DESCRIPTION | NO. | DESCRIPTION |
| 1 | Discharge plug | 9 | "O" ring | 17 | Rotor | 25 | Cable presser |
| 2 | "O" ring | 10 | Pump casing cover | 18 | Split ring | 26 | Stand pin |
| 3 | Charge | 11 | Drops guard | 19 | Bolt | 27 | Stand |
| 4 | Pump casing | 12 | Bolt | 20 | Terminal cover | 28 | Fairlead |
| 5 | Nut | 13 | Pump support | 21 | Terminal board | 29 | Driving cap |
| 6 | Impeller | 14 | Bolt | 22 | Casing with wound stator | 30 | Bolt |
| 7 | Snap ring | 15 | Bearing | 23 | Capacitor | 31 | Fan |
| 8 | Mechanical Seal | 16 | Key | 24 | Screw | 32 | Fan cover |
PRODUCTS TECHNIQUE
| MODEL | POWER | MAX.FLOW | MAX.HEAD | MAX.SUCT | INLET/OUTLET | GW | PACKING DIMENSION(CM) | |
| kW | HP | (l/min) | (M) | (M) | (inch) | (kgs) | ||
| MHF5B | 0.75 | 1 | 350 | 13.5 | 8 | 2"x 2" | 15 | 37.5*21.5*28.5 |
| MHF5A | 1.1 | 1.5 | 400 | 15 | 8 | 2"x 2" | 19 | 41*24*29 |
| MHF5AM | 1.5 | 2 | 450 | 18 | 8 | 2"x 2" | 21 | 41*24*29 |
| MHF6C | 1.1 | 1.5 | 500 | 14 | 8 | 3"x 3" | 25 | 42.5*26*32.5 |
| MHF6B | 1.5 | 2 | 750 | 14 | 8 | 3"x 3" | 28.5 | 42.5*26*32.5 |
| MHF6A | 2.2 | 3 | 800 | 15 | 8 | 3"x 3" | 31 | 42.5*26*32.5 |
| MHF6AR | 3 | 4 | 900 | 12 | 8 | 4"x 4" | 37.5 | 48*26*32.5 |
| MHF6AF-A | 1.5 | 2 | 450 | 15 | 8 | 3"x 3" | 38 | 44*26*33 |
| MHF6AF-B | 2.2 | 3 | 850 | 15 | 8 | 3"x 3" | 41 | 44*26*33 |
FAQ
Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container, first time cooperation, we accept trial order to check quality.
Q: Is it acceptable to make customers' own brand?
A: Sure, we can do OEM.
Q: What are your payment terms?
A: 30% T/T deposit, 70% against documents, or L/C at sight.
Q: How long is your warranty?
A: One year!
Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.
