Product Description

ISW series pumps,designed in ac-cordance with ISO2858 standard,are single-stage single-suction horizontal centrifugal pumps featured by inte-grated simple construction for less space, easy installation, smooth op-eration with less noise and free of daily maintenance due to the intro-duction of high quality mechanical seals and closed coupling.
Features

1.Integrated horizontal construction and smooth operation with closed coupling for space and cost saving.

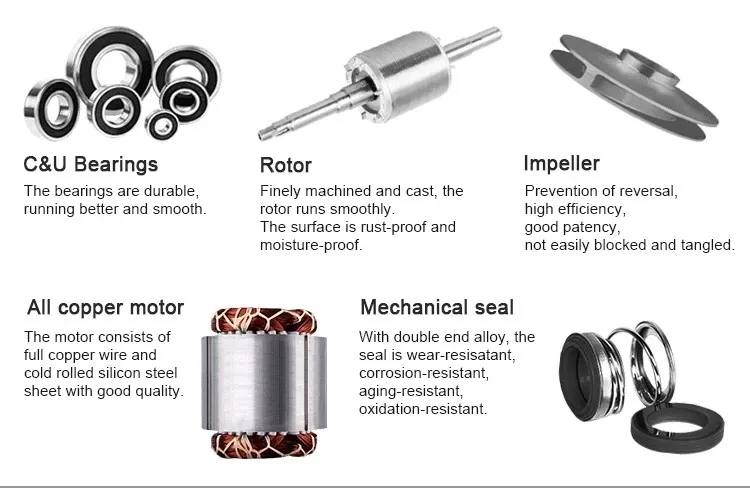

2.Low noise and Leak proof operation with mechanical seals of hard alloy materials.
3.Vent valve designed on pump cover and water release at pump bottom, pressure detecting holes at flange inlet and outlet for on-line operation monitor.
4.Working pressure up to 1.6Mpa.

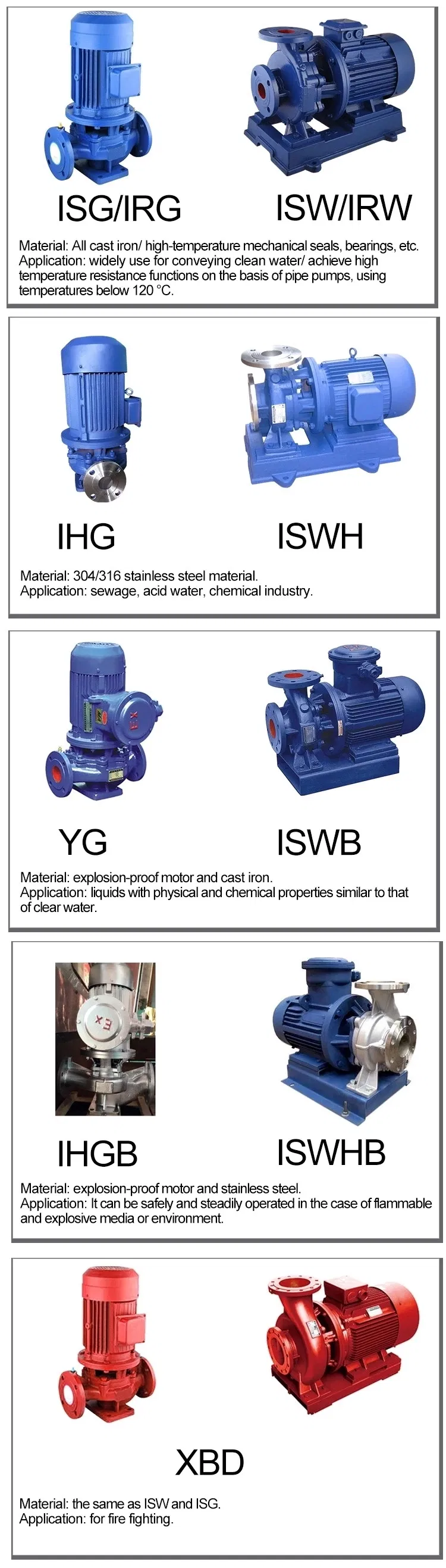

4 types of ISW series pumps are available for different applications, namely:
ISW:for application of clean water or similar liquids within the temperature range of 0 ~ 80ºC, for instance cold/hot water circulation for air conditioning systems, water supply for high build- ings, water boosting for fire fighting systems, long distance water delivery, process circulation
boost for industrial production, sprinkling irrigation for gardens etc..

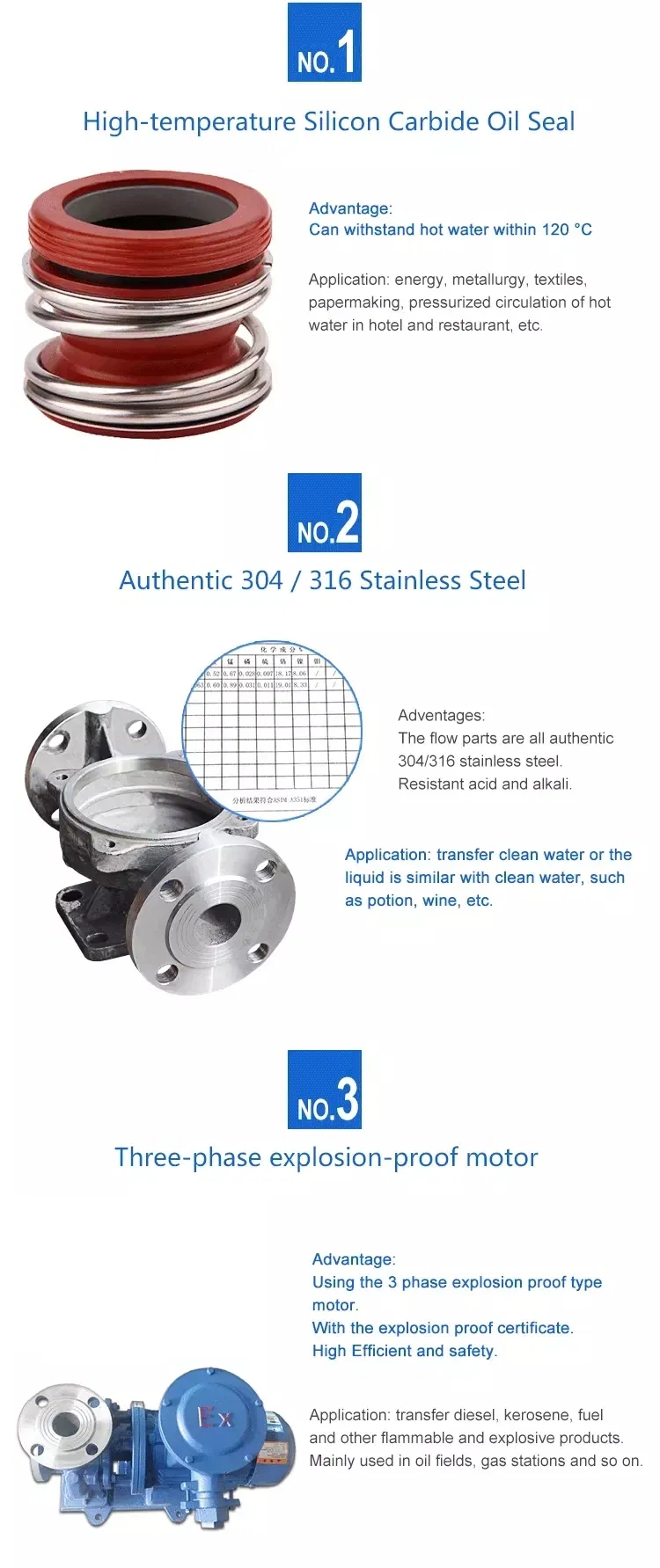

1.ISWR:for pumping of hot water (up 120ºC) circulating in greenhouse, boiler, bathroom and other HVAC systems. Also applicable to circulation boost of non-corrosive hot water in various in-dustries.

2.ISWH:for pumping and boosting of various kinds of corrosive liquids (≤120ºC)in industries like chemical, environment protection, foodstuff and brewery, pharmacy, papermaking and textiles etc..

3.ISWB:for pumping of non-corrosive oil and petrochemicals or any other flammable and explosive liquids (viscosity<120mm 2 /s) within the temperature range of -20 ~ 120ºC

Performance Data
Capacity Range:1.5 ~ 1203m 3 /hr
Head Range:8 ~133m
Speed:1450rmp/2900rpm
Max. working pressure: 1.6Mpa
Suction pressure: up to 1.0Mpa

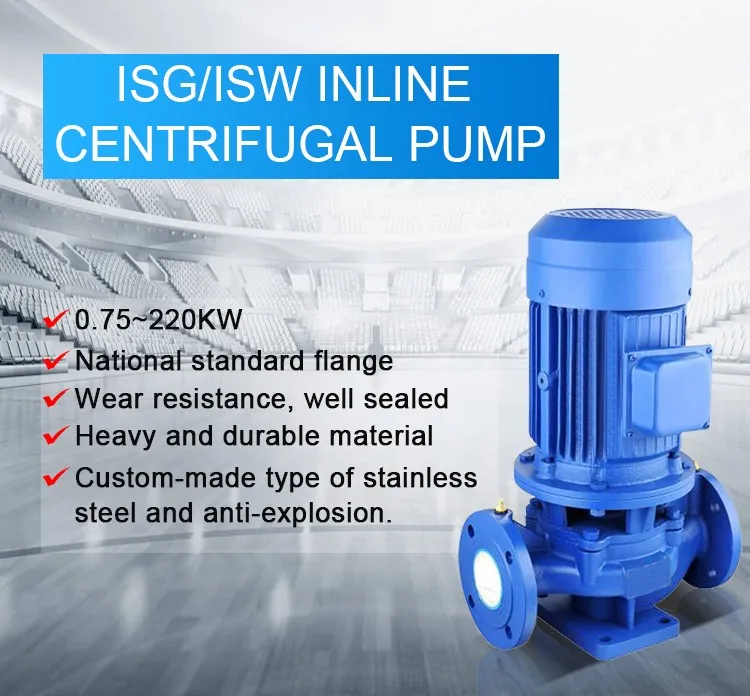

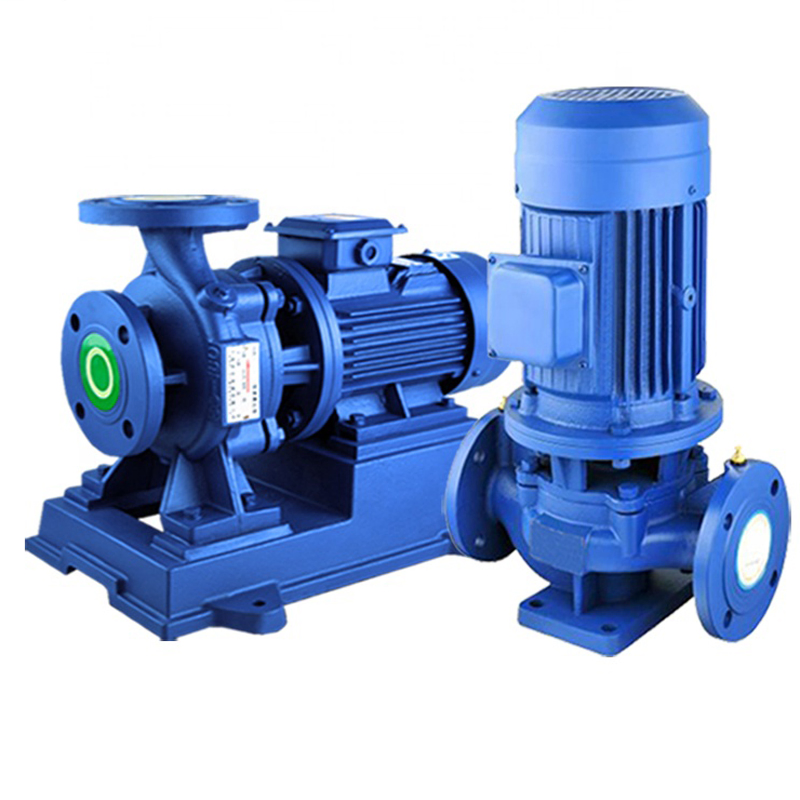

Isw/Isg Horizontal and Vertical Pipeline Centrifugal Pump

Isw/Isg Horizontal and Vertical Pipeline Centrifugal Pump

specification:

Model	Flow(m3/h)	Head(m)	Power(kw)	Outlet(mm)	Voltage(v)	Speed(r/min)
20-160	2.5	32	1.1	20	380	2900
25-125	4	20	0.75	25	380	2900
25-160	4	32	1.5	25	380	2900
32-125	4.5	20	0.75	32	380	2900
40-100	6.3	32	2.2	40	380	2900
40-125	6.3	20	1.1	40	380	2900
40-200	6.3	80	7.5	40	380	2900
50-100	12.5	12.5	1.1	50	380	2900
50-125	12.5	20	1.5	50	380	2900
50-160	12.5	32	6	50	380	2900
50-250	12.5	80	11	50	380	2900
65-125	25	12.5	3	65	380	2900
65-160	25	20	4	65	380	2900
65-250	25	50	15	65	380	2900
80-125	50	20	5.5	80	380	2900
80-160	50	32	7.5	80	380	2900
80-250	50	80	22	80	380	2900
80-350	50	150	55	80	380	2900
100-125	100	20	11	100	380	2900
100-200	100	50	22	100	380	2900
125-100	160	12.5	11	125	380	2900
125-160	160	32	22	125	380	2900
125-250	160	80	55	125	380	2900
150-125	160	20	15	150	380	2900
150-200	160	50	37	150	380	2900
200-270	400	80	132	200	380	2900
200-330	400	128	220	200	380	2900

If you need more model information, please contact us!

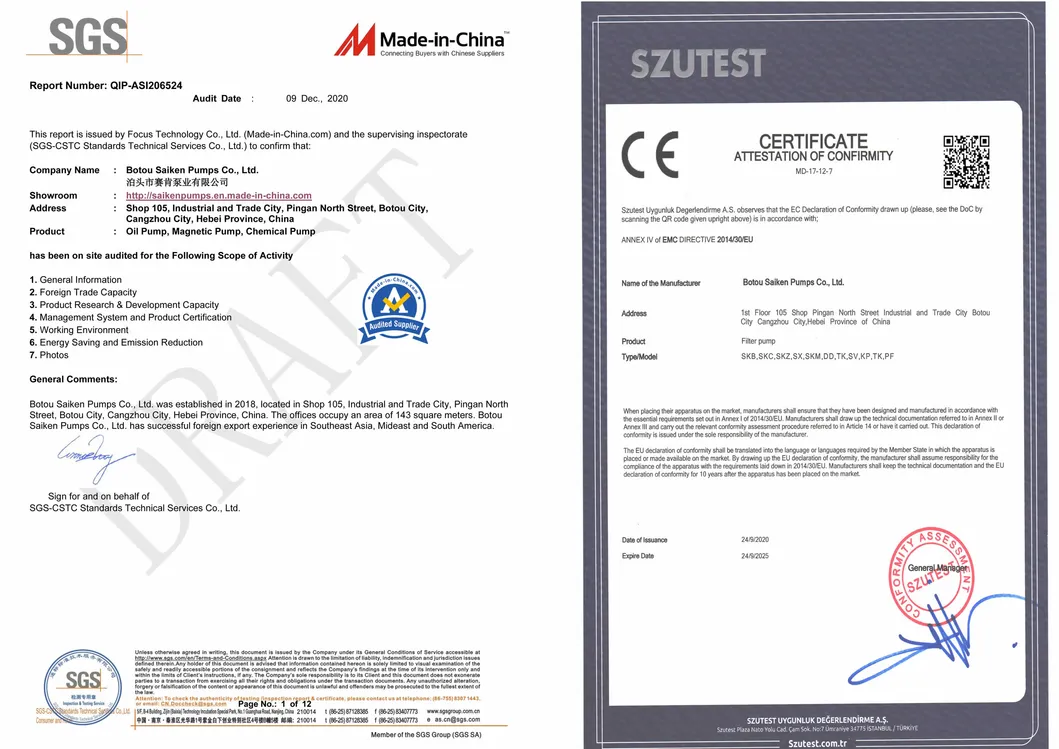

Our Certificates:

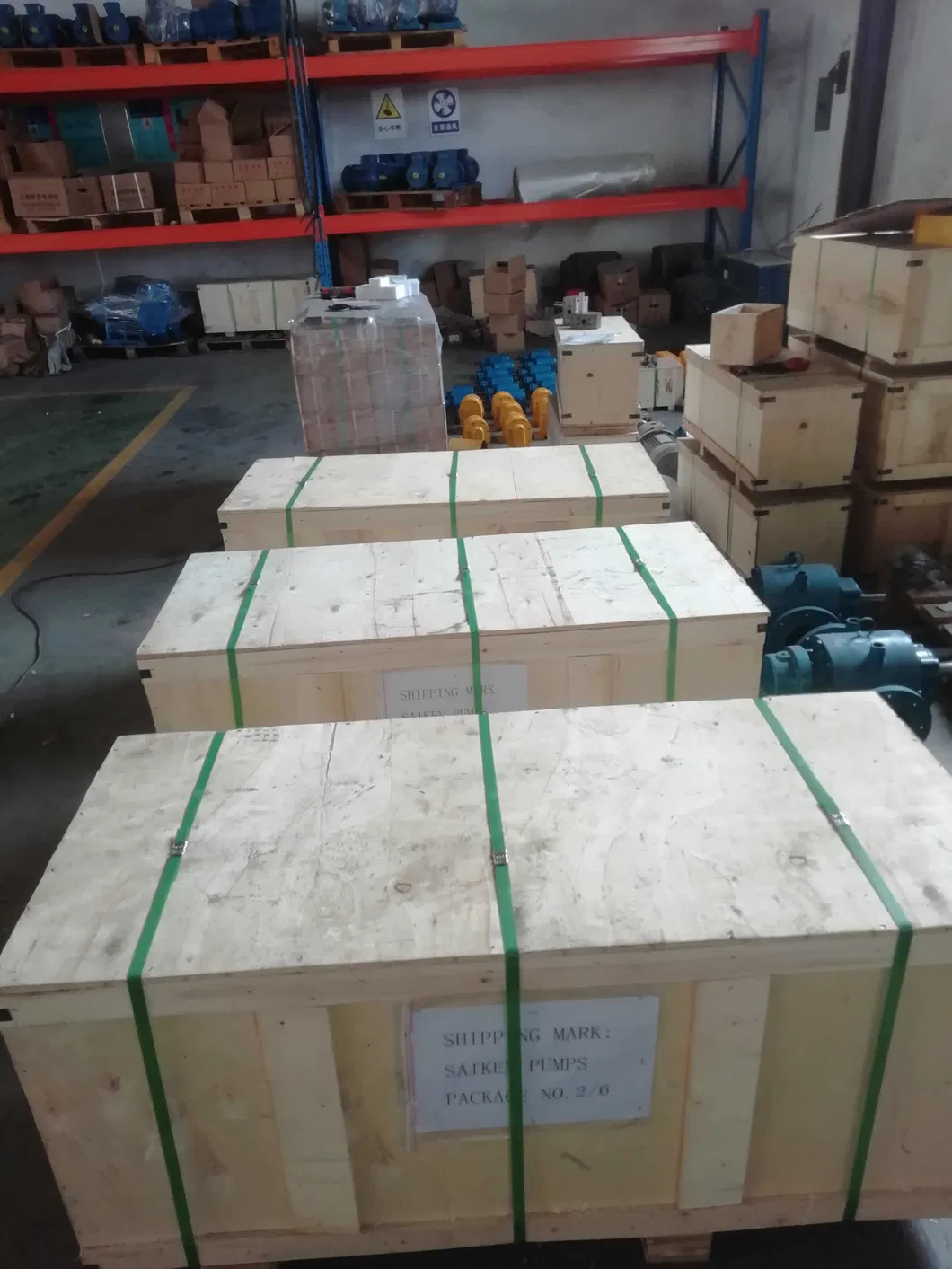

Packaging & Shipping:

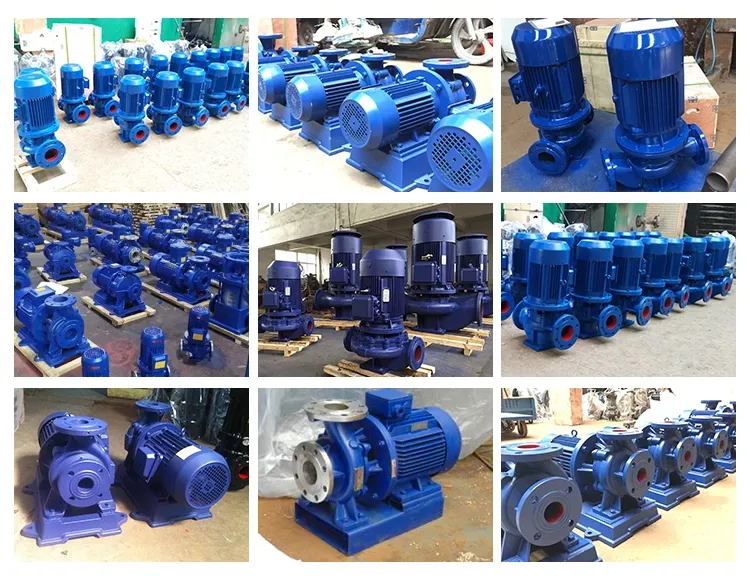

Isw/Isg Horizontal and Vertical Pipeline Centrifugal Pump

Why Choose Us:

Specialists in Custom of Pump-Oil transfer Pump Supplier,China Pump Exporter
Saiken Pumps are a specialist pump manufacturer & supplier for the marine and industrial markets for most applications but not limited transfer of water, fuels oil and lubricants. Assured quality, technical expertise and application experience is what you can expect. Our added value is our knowledge in specifying the right pump for your requirements.
With a large portion of Saiken Pumps' customers being from overseas, we have great experience in handling pump enquiries and projects for export throughout 70 different countries worldwide.

Payment terms:

Payment : 50% or 100% T/T
MOQ: 1pcs
Warranty: 12 months
Package information: Carton or wooden case
