Ihf PTFE Lined Centrifugal Chemical Process Pump Transfer Sulfuric Acid Pump
IHF fluoroplastic alloy chemical pumpa) Caliber: DN40-DN125mmb) Flow: 6.3-250m3/hrc) Head:20-100 md) Rotate speed: 2900r/mine) Motor power:1.5-90 kwIHF Series single stage single suction fluoroplastic alloy centrifugal pump is manufactured according to international design and principle of nonmeter ......
Send Inquiry
Product Description
IHF fluoroplastic alloy chemical pump
a) Caliber: DN40-DN125mm
b) Flow: 6.3-250m3/hr
c) Head:20-100 m
d) Rotate speed: 2900r/min
e) Motor power:1.5-90 kw
IHF Series single stage single suction fluoroplastic alloy centrifugal pump is manufactured according to international design and principle of nonmeter pump. The pump has the advantages such as anticorrosion, wearable, anti-high temperature, no aging, high mechanical strength and no toxin decomposer etc. The medium temperature is -85ºC-200ºC. The pumps are widely used to transport the liuquid, wastewater and add acid etc, in chemical, pharmaceutical, petroleum, metallurgical, power, electroplating, pickling, pesticides, paper and other industries. The pump can be used in transporting strong corrosive medium of any concentration, such as sulfuric acid, hydrochloric acid, nitric acid, acetic acid, aqua regia, strong alkali, strong oxidants and organic solvents, etc. It is one of the most advanced corrosion-resistant equipment.
Description:

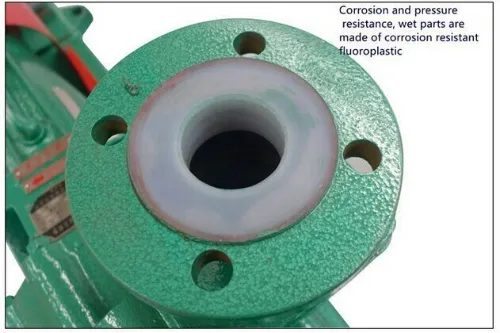

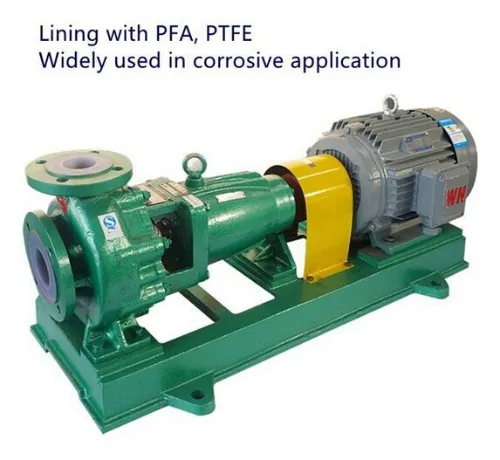

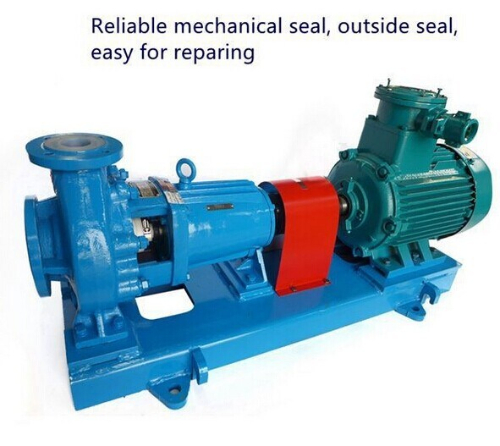

IHF Series are single-stage, single suction and fluoroplastic Alloy centrifugal pumps.The pump has a corrosion-resistant, wear-resistant, high temperature resistant, non-aging, high mechanical strength, non-toxic decomposition. The pump body is made by metal housing and FEP (F46) lining, pump cover, impeller and shaft sleeve are made by integrated sintering and pressure molding of metal insert and Fluoro plastic housing, shaft seal is sealed by external bellow mechanical seal.
b) Flow: 6.3-250m3/hr
c) Head:20-100 m
d) Rotate speed: 2900r/min
e) Motor power:1.5-90 kw
IHF Series single stage single suction fluoroplastic alloy centrifugal pump is manufactured according to international design and principle of nonmeter pump. The pump has the advantages such as anticorrosion, wearable, anti-high temperature, no aging, high mechanical strength and no toxin decomposer etc. The medium temperature is -85ºC-200ºC. The pumps are widely used to transport the liuquid, wastewater and add acid etc, in chemical, pharmaceutical, petroleum, metallurgical, power, electroplating, pickling, pesticides, paper and other industries. The pump can be used in transporting strong corrosive medium of any concentration, such as sulfuric acid, hydrochloric acid, nitric acid, acetic acid, aqua regia, strong alkali, strong oxidants and organic solvents, etc. It is one of the most advanced corrosion-resistant equipment.
Description:
IHF Series are single-stage, single suction and fluoroplastic Alloy centrifugal pumps.The pump has a corrosion-resistant, wear-resistant, high temperature resistant, non-aging, high mechanical strength, non-toxic decomposition. The pump body is made by metal housing and FEP (F46) lining, pump cover, impeller and shaft sleeve are made by integrated sintering and pressure molding of metal insert and Fluoro plastic housing, shaft seal is sealed by external bellow mechanical seal.
Main Features:
a) Has advanced and logical structure
b) Reliable sealing performance
c) Stable operation
d) Low noise and long life-span
Main Uage:
IHF series are widely used with the chemical, pharmaceutical, petroleum, metallurgy, electricity, electroplating, pickling, pesticide, paper and other industries in the liquid delivery, wastewater treatment and processing acids, etc. process.

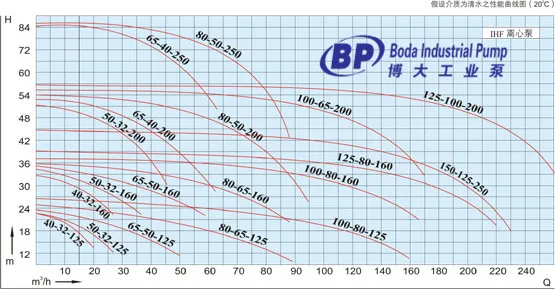

Selection Chart:
| Model | Speed n=2900 r/min | n=1450 r/min | ||||||||
| Q(m³/h) | Head (m) | Motor Power Kw | NPSH (m) | Dffiency(%) | Q m³/h | Head (m) | Motor Power Kw | NPSH(m) | Efficieny(%) | |
| IHF40-25-125 | 6.3 | 20 | 1.5 | 3.0 | 51 | | ||||
| IHF40-25-160 | 6.3 | 32 | 2.2 | 3.0 | 46 | |||||
| IHF40-25-200 | 6.3 | 50 | 4 | 3.0 | 39 | |||||
| IHF40-25-250 | 6.3 | 80 | 11 | 3.0 | 41 | |||||
| IHF50-32-125 | 12.5 | 20 | 2.2 | 3.0 | 51 | 6.3 | 5 | 0.55 | 3.0 | 45 |
| IHF50-32-160 | 12.5 | 32 | 4 | 3.0 | 46 | 6.3 | 8 | 0.55 | 3.0 | 40 |
| IHF50-32-200 | 12.5 | 50 | 7.5 | 3.0 | 39 | 6.3 | 12.5 | 1.1 | 3.0 | 33 |
| IHF65-50-125 | 25 | 20 | 3 | 3.5 | 62 | 12.5 | 5 | 0.55 | 3.5 | 55 |
| IHF65-50-160 | 25 | 32 | 5.5 | 3.5 | 57 | 12.5 | 8 | 1.1 | 3.5 | 51 |
| IHF65-40-200 | 25 | 50 | 11 | 3.5 | 52 | 12.5 | 12.5 | 1.5 | 3.5 | 46 |
| IHF65-40-250 | 25 | 80 | 18.5 | 3.5 | 50 | 12.5 | 20 | 3 | 3.5 | 43 |
| IHF80-65-125 | 50 | 20 | 5.5 | 4.0 | 69 | 25 | 5 | 1.1 | 4.0 | 64 |
| IHF80-65-160 | 50 | 32 | 11 | 4.0 | 67 | 25 | 8 | 1.5 | 4.0 | 62 |
| IHF80-50-200 | 50 | 50 | 15 | 4.0 | 63 | 25 | 12.5 | 2.2 | 4.0 | 57 |
| IHF80-50-250 | 50 | 80 | 30 | 4.0 | 66 | 25 | 20 | 5.5 | 4.0 | 51 |
| IHF100-80-125 | 100 | 20 | 11 | 4.5 | 77 | 50 | 5 | 1.5 | 4.5 | 74 |
| IHF100-80-160 | 100 | 32 | 15 | 4.5 | 73 | 50 | 8 | 2.2 | 4.5 | 69 |
| IHF100-65-200 | 100 | 50 | 30 | 4.5 | 73 | 50 | 12.5 | 5.5 | 4.5 | 68 |
| IHF125-80-160 | 160 | 32 | 30 | 5.0 | 70 | 80 | 8 | 5.5 | 5.0 | 74 |
| IHF125-100-200 | 250 | 50 | 55 | 5.0 | 65 | 100 | 12.5 | 11 | 5.0 | 71 |
| IHF125-100-280 | 200 | 100 | 90 | 5.0 | 73 | 100 | 25 | 15 | 5.0 | 73 |
| IHF150-125-315 | | | | | | 200 | 32 | 30 | 5.0 | 73 |
| IHF150-125-400 | 200 | 50 | 45 | 5.5 | 74 | |||||
| IHF200-150-315 | 400 | 32 | 55 | 5.5 | 74 | |||||
| IHF200-150-400 | 400 | 50 | 90 | 5.5 | 74 | |||||
1. What Products does BODA pump mainly produce?
BODA mainly Produce Slurry Pump, Gravel sand Pump, Dredging Pump, Centrifugal water pump and Spare Parts. Not only Pump parts, but also others wear casting parts if there is drawing or sample.
2. Is BODA direct factory or trader?
BODA own foundry workshop, Machining Workshop, and Assembly workshop.
Welcome to visit our factory anytime.
3. The Min MQQ
The MQQ is one pcs spare parts or one set bare pump
4. What information is required for quotes?
If you need the spare parts, we need to know the parts Code and material.
If you need the whole pump set, we need to know the usage? The flow, head, and SG, Corrosive or not? The more detailed the better.
Our service
1.Any inquires will be replied within 8 working hours.
2.Professional centrifugal pump manufacturer, welcome to visit our website (on-line store) and factory.
3.Customized design is available, OEM and ODM are welcomed.
4.High quality, reasonable & competitive price.
5.Fast lead time, 5-25days for bulk pump production
6.Payment: we usual accept payment by T/T, L/C and western union.
7.We have strong cooperation with forwarder, you also can chose your own shipping forwarder.
8.After-sale service: all centrifugal pumps will have been strictly quality checked in house before packing. All centrifugal pumps will be well packed as request before shipping.
