China Huge Flow Horizontal Motor Split Case Centrifugal Dewatering Pump

Product Description

Huge Flow Horizontal Motor Split Case Centrifugal Dewatering Pump

1.Technical Parameters

Pump Model	Capacity		Head (m)	Speed (r/min)	Power	Efficiency (%)	NPSH r(m)	Impeller's Dia(mm)	Net Pump Weight(kg)
Pump Model	m3/h	L/S	Head (m)	Speed (r/min)	Shaft Power (kw)	Efficiency (%)	NPSH r(m)	Impeller's Dia(mm)	Net Pump Weight(kg)
TPOW125-300	100	27.8	32	1480	17.1	51	1.9	301	350
	242.5	67.4	25		19.9	83
	370	102.8	17.1		24.1	71.5
TPOW125-300A	90.3	25.1	26.3		12.9	50		276
	222.3	61.8	21		15.5	82
	290	80.6	15		16.8	70.5
TPOW125-300B	80	22.2	22.1		10.2	47		254
	202.9	56.4	17.5		12.2	79
	250	69.4	13.2		13.3	67.5
TPOW125-300C	70.1	19.5	17.3		7.5	44		232
	179.5	49.9	13.7		8.8	76
	210	58.3	11.9		10.6	64.5
TPOW125-300	230	63.9	113	2950	120	59	7.9	301	350
	479	133.1	100		157.2	83
	558	155	92		181.6	77
TPOW125-300A	182	50.5	93		79.5	58		276
	437.7	121.6	83.5		121.4	82
	504	140	75		135.4	76
TPOW125-300B	128	35.6	80		50.7	55		254
	400.8	111.3	70		96.7	79
	468	130	63		110	73
TPOW125-300C	80.5	23.6	63		26.6	52		232
	355.2	98.7	55		70	76
	414	115	48		77.3	70

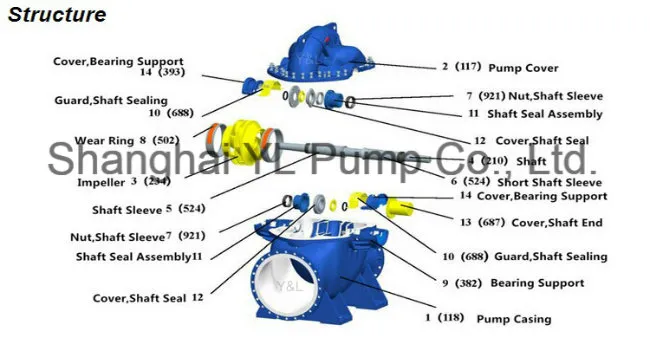

2.Structure
Huge Flow Horizontal Motor Split Case Centrifugal Dewatering Pump

TPOW series double suction centrifugal pump is mainly used for transporting water or liquid which has the similar physical and chemical properties to water, It has large flow because there are two suction inlets on the impeller, so our centrifugal pump can be applied to urban flood drainage, power station, water supply, farm irrigation, water plant, pumping station, water circulation for air conditioner, heating water circulation, industrial water supply system, fire water supply and other fields.

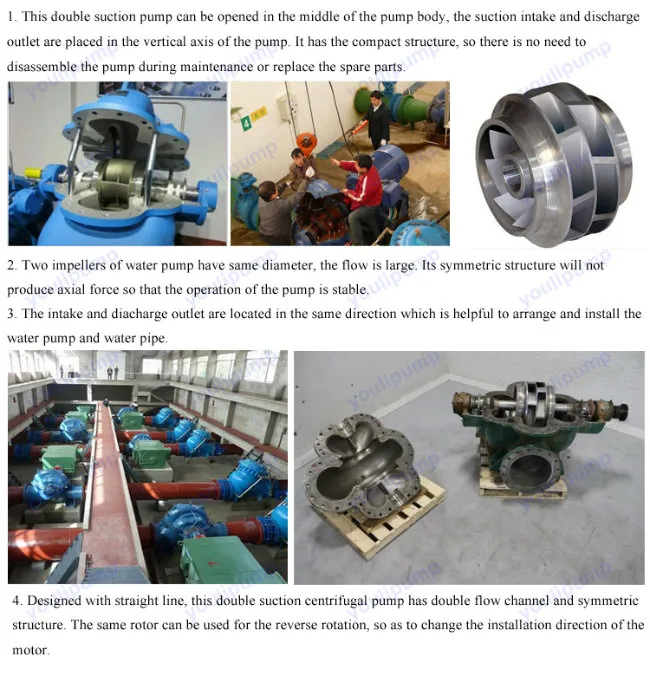

3.Feature
Huge Flow Horizontal Motor Split Case Centrifugal Dewatering Pump

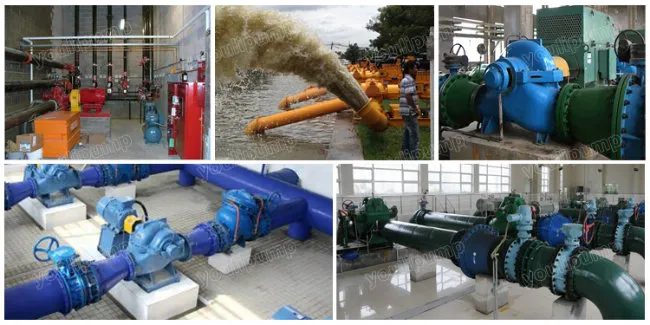

4.Application
1.the pump can be used for fire extinguishing for motor, transformer, factory and oil system. It can be used as standby fire pump in fire water system.
2.The double suction centrifugal pump is widely used in urban drainage, urban water supply, water plant. central heating system drainage for power plant. paper mill, water supply for air-conditioning system.
3.This kind of water pump has large flow, it is applied to farmland irrigation and drainage water conservancy.
4.The large solid particles which can be passed through are 20% of the pump impeller, our centrifugal pump is used for conveying wastewater, sewage in mine, drainage pumping station, iron and steel metallurgy, petrochemical refining and other fields.
Huge Flow Horizontal Motor Split Case Centrifugal Dewatering Pump

5.Service

1.Quality: we will test our pump before delivery, and we will follow up the pump working conditions per three months when the pump put into use. If you need spare parts, we can send to you in 1 or 2 weeks.
2. On-sales Service: we will clear show you everything in fact when you place an order with us. We will take photos or videos to show you our production situation, and report the production situation to you.
3. Package: We use plywood case to pack our pump, which is durable for ocean transport.
4. Delivery: Delivery time will be on time as the contract. Usually, our company need 25 working days for diesel engine pump, and for bare shaft pump, it takes 15 working days,
5. Warranty: 12 month for the pump body, 3 month for the main working parts.

6.Factory
Huge Flow Horizontal Motor Split Case Centrifugal Dewatering Pump
