Product Description

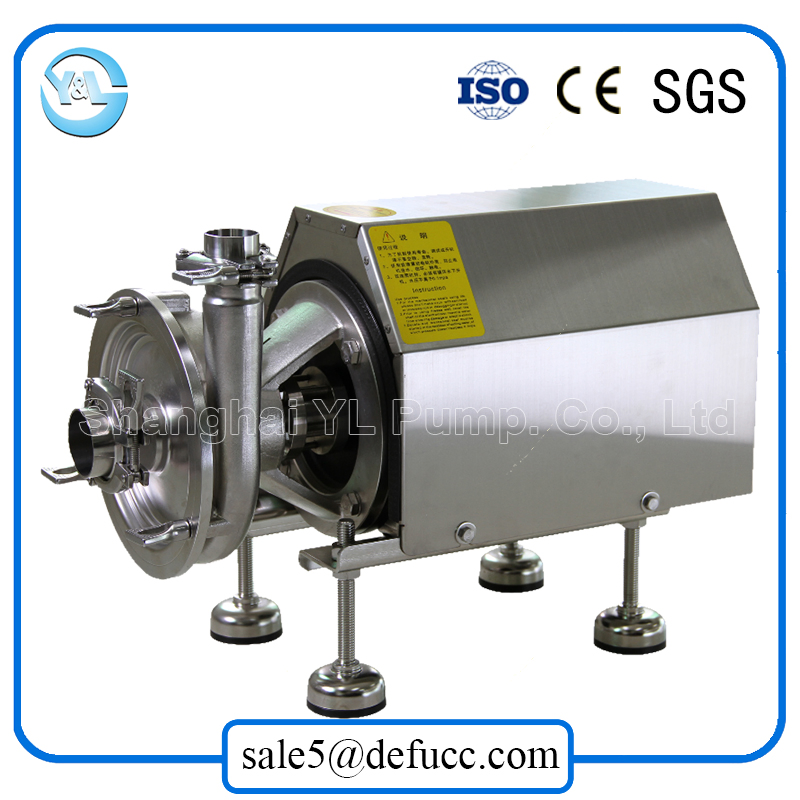

YL high grade hot water pump is simple, easy to dismantle, also with adjustable-feet, shock-proof, little noise, high efficiency, long time running.
Main Features

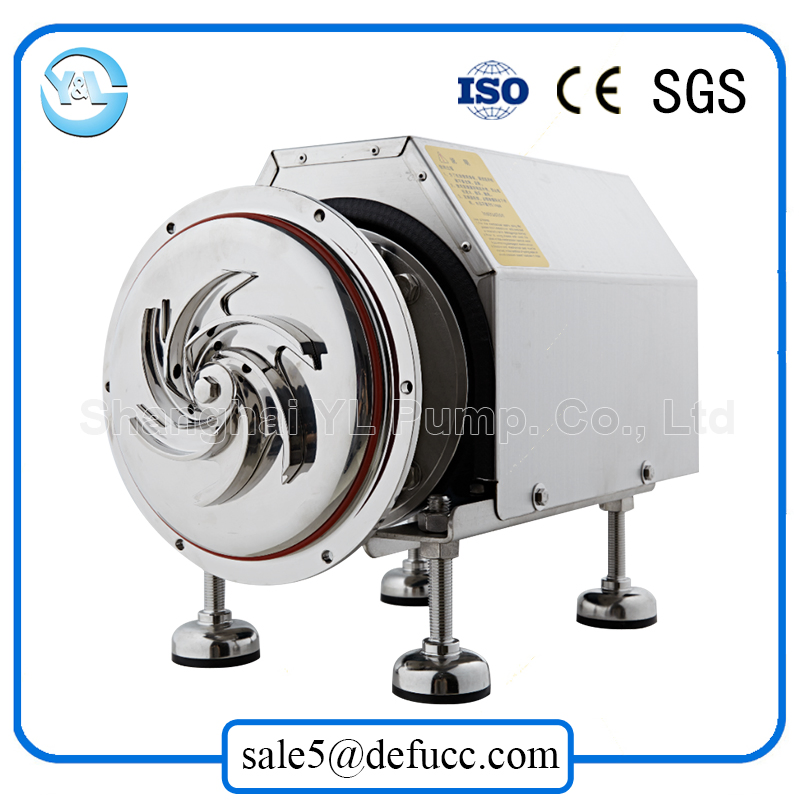

1. The impeller is designed as open type impeller, which deepens the inlet cavity of impeller, enhance the inlet feature of pump and avoid cavitation, with sanitary mirror polishing.
2. The impeller and shaft are designed as taper matching, and the locking nut is provided with seal to prevent the liquid from entering the shaft sleeve and thread, or else, dead comer will be produced.
3. The mechanical seal is so designed that there is no bolt and spring contacting material ,which can be thoroughly cleaned without any pollution.
4. The pump body is provided with drain valve to discharge residua liquid so as to guarantee there is no dead corner.
5. Materials: the liquid passing parts (wetted parts) can be made of SS304 or SS316L. The roughness after fine mirror polishing is Ra<0.4um.
6. The parts and connections that the liquid will pass must be cleaned and there shall have no residuals after cleaning and sterilization, so as to realize the sanitary and aseptic conception in a real sense.
Main applications
1. Apply to the transfer of the mediums that are low/middle viscosity, low corrosive & with suspended solid.
2. Mainly used for pharmacy, liquor industry, food industry, chemical industry, drink and other industries.
Product details
| Working Principle: | Centrifugal |
| Main applications: | Food fluid, wine, water, mink, etc |
| Driver: | Electric motor |
| Max.permissible fluid temperature: | 100°C(212°F) / 150°C(302°F) anti-heat seal |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Stainless Steel/Stainless steel |
| Drive rating: | Up to 37KW(50HP) |
| Maximum caliber: | 102mm(4inch) |
| Maximum discharge-side pressure: | 0.8MPa(8bar) |
| Maximum head: | 80m(262.47ft) |
| Flow rate range: | 1-150m3/h(4.4-660US.GPM) |
Performance data
| Model | Capacity (m3/h) | Head (m) | Inlet | Outlet | Power (KW) | ||
| (mm) | (Inch) | (mm) | (Inch) | ||||
| GKH-1-10 | 1 | 15 | 32 | 1 1/4" | 25 | 1 " | 0.37/0.55 |
| GKH-3-18 | 3 | 20 | 38 | 1 1/2" | 32 | 1 1/4" | 0.75/1.1 |
| GKH-5-25/30 | 5 | 25/30 | 51 | 2" | 38 | 1 1/2" | 1.5 |
| GKH-10-25/35 | 10 | 25/35 | 51 | 2" | 38 | 1 1/2" | 2.2 |
| GKH-15-32/42 | 15 | 32/42 | 51 | 2" | 51 | 2" | 3 |
| GKH-20-36/45 | 20 | 36/45 | 51 | 2" | 51 | 2" | 4 |
| GKH-25-36 | 25 | 40/50 | 63 | 2 1/2" | 51 | 2" | 5.5 |
| GKH-30-40/50 | 30 | 40/55 | 63 | 2 1/2" | 51 | 2" | 7.5 |
| GKH-50-36 | 50 | 50/65 | 76 | 3" | 63 | 2 1/2" | 11 |
| GKH-60-50/65 | 60 | 50/65 | 76 | 3" | 63 | 2 1/2" | 15 |
| GKH-80-50 | 80 | 50/70 | 76 | 3" | 76 | 3" | 18.5 |
| GKHM-100-50/70 | 100 | 50/80 | 89 | 3 1/2" | 76 | 3" | 22 |
| GKH-120-50/80 | 120 | 50/80 | 102 | 4" | 89 | 3 1/2" | 30 |
| GKH-150-50/80 | 150 | 50/80 | 102 | 4" | 102 | 4" | 37 |
Motor specification:
Voltage: 110~240V single phase (0.75~1.5KW), 220~440V 3phase
Frequency: 50Hz or 60Hz
Type: Ordinary fixed speed, Frequency adjustable speed, Explosion proof
Brand: China high quality brand, Shanghai ABB, Siemens, Beide, ABB, etc

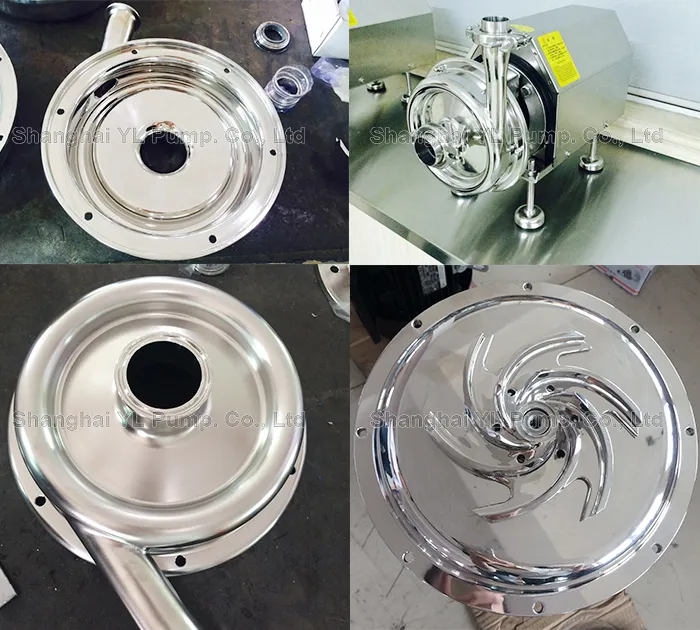

Pump Structure

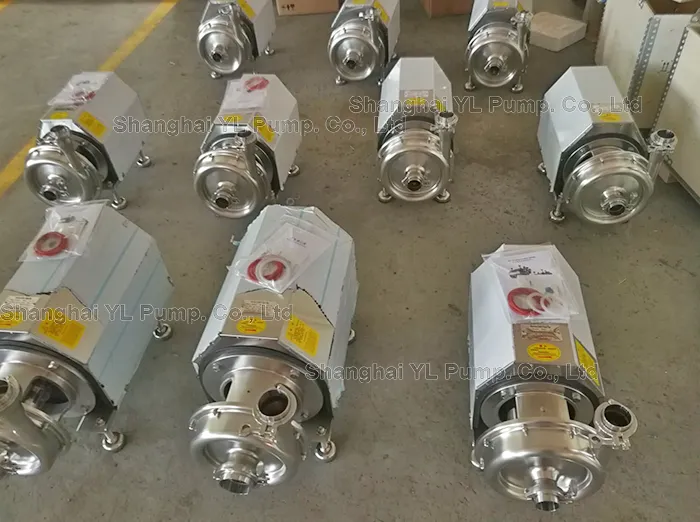

PicturesExcellent pumps are fabricated by high-precision equipments and carefully selected high-quality materials.
For your high viscosity liquid products transfer, pls refer to our rotary lobe pumps.

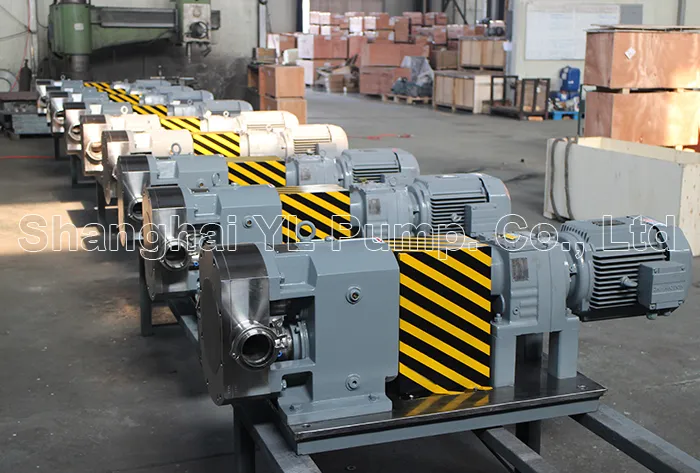

Photo for rotary lobe pumps.
Technical parameters for rotary lobe pumps
Model | Displace-ment (L/r) | Speed range (r/min) | Capacity | Max. (Mpa) | Power (Kw) | Suction pressure (Mpa) | Inlet &outlet (mm) | Max. (cp) |
25BV12-2 | 0.15 | 20-600 | 0.09-4.32 | 1.2 | 2.2 | -0.02~-0.08 | 25 | 1000000 |
40BV12-5 | 0.32 | 20-550 | 0.18-7.92 | 1.2 | 4 | -0.02~-0.08 | 40 | 1000000 |
50BV12-8 | 0.47 | 20-550 | 0.28-12.4 | 1.2 | 5.5 | -0.02~-0.08 | 50 | 1000000 |
50BV12-10 | 0.65 | 20-550 | 0.39-17.16 | 1.2 | 7.5 | -0.02~-0.08 | 50 | 1000000 |
65BV12-20 | 1.74 | 20-550 | 1.04-45.94 | 1.2 | 15 | -0.02~-0.08 | 65 | 1000000 |
80BV12-30 | 2.5 | 20-550 | 1.5-66.00 | 1.2 | 22 | -0.02~-0.08 | 80 | 1000000 |
80BV12-40 | 3.65 | 20-550 | 2.19-96.00 | 1.2 | 30 | -0.02~-0.08 | 80 | 1000000 |
125BV12-50 | 4.6 | 20-420 | 2.76-92.74 | 1.2 | 37 | -0.02~-0.08 | 125 | 1000000 |
125BV12-70 | 6.1 | 20-420 | 3.66-122.98 | 1.2 | 45 | -0.02~-0.08 | 125 | 1000000 |
125BV12-80 | 7.0 | 20-420 | 4.20-141.12 | 1.2 | 55 | -0.02~-0.08 | 125 | 1000000 |
150BV12-100 | 11.4 | 20-420 | 6.84-229.82 | 1.2 | 75 | -0.02~-0.08 | 150 | 1000000 |
150BV12-150 | 12.5 | 20-420 | 7.50-252.00 | 1.2 | 90 | -0.02~-0.08 | 150 | 1000000 |
175BV12-200 | 16.7 | 20-420 | 10.02-336.67 | 1.2 | 110 | -0.02~-0.08 | 175 | 1000000 |
Note*
1. Tested medium: water. Your liquid's density, viscosity and temperature are necessary to supply when choose the pump.2. Speed, flow rate, electrical power and pressure will be varified according to different liquid properties.
3. Port size can be changed as needed.
4. YL reserves the right to change specifications without prior notification.
