China Horizontal Multistage High Pressure Electric Motor Centrifugal Water Pump

Product Description

Horizontal Multistage High Pressure Electric Motor
Centrifugal Water Pump

1.Model Table

D(DF,DY,MD)25-30×(2-10)
Stage	Capacity		Head	Rating Speed	Efficiency	Shaft power	Power	NPSHr	Impeller Dia	Pump Weight
	Capacity		Head	Rating Speed	Efficiency	Shaft power	Power	NPSHr	Impeller Dia	Pump Weight
	m3/h	L/s	m	r/min	%	KW	KW	m	mm	kg
2	15	4.17	68	2950	50	5.56	11	2.2	φ160	150.7
	25	6.94	60		62	6.58		2.2
	30	8.33	55		63	7.14		2.4
3	15	4.17	102	2950	50	8.33	15	2.2	φ160	166.3
	25	6.94	90		62	9.88		2.2
	30	8.33	82.5		63	10.7		2.4
4	15	4.17	136	2950	50	11.11	18.5	2.2	φ160	181.8
	25	6.94	120		62	13.1		2.2
	30	8.33	110		63	14.26		2.4
5	15	4.17	170	2950	50	13.89	22	2.2	φ160	197.3
	25	6.94	150		62	16.47		2.2
	30	8.33	137.5		63	17.83		2.4
6	15	4.17	204	2950	50	16.67	30	2.2	φ160	212.9
	25	6.94	180		62	19.77		2.2
	30	8.33	165		63	21.4		2.4
7	15	4.17	238	2950	50	19.44	30	2.2	φ160	228.4
	25	6.94	210		62	23.1		2.2
	30	8.33	192.5		63	24.96		2.4
8	15	4.17	272	2950	50	22.22	37	2.2	φ160	244.0
	25	6.94	240		62	26.4		2.2
	30	8.33	220		63	28.53		2.4
9	15	4.17	306	2950	50	25.0	37	2.2	φ160	259.5
	25	6.94	270		62	29.65		2.2
	30	8.33	247.5		63	32.1		2.4
10	15	4.17	340	2950	50	27.8	45	2.2	φ160	275.0
	25	6.94	300		62	32.9		2.2
	30	8.33	275		63	35.7		2.4

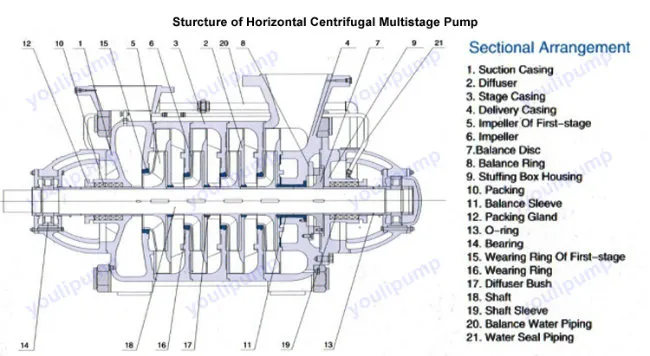

2.Structure
Horizontal Multistage High Pressure Electric Motor Centrifugal Water Pump

The pump is efficient, reliable, and durable with low noise performance, easy maintenance and wide scope of usage. It has D, DF,DY and MD series of single-suction multistage centrifugal pumps. Our pump is applicable to deliver those fluid without solid, particles or any other suspended stuff, water for instance.

3.charateristic
1..High efficiency and energy saving
2.Advanced process equipment
3.Unique structure
4.Material choosing
5.Fine appearance

4.Aplication
Our horizontal multistage centrifugal pump can be applied for transporting clear water or liquid with physical or chemical property similar to that of the clear water. There shall be no solid particle, abrasive material or suspended solid containing in the liquid. Particularly, this multistage centrifugal pump can be used for delivering hot water, oil, corrosive liquid or medium containing abrasive material through special employment of material, sealing mode, or cooling system.
Horizontal Multistage High Pressure Electric Motor Centrifugal Water Pump

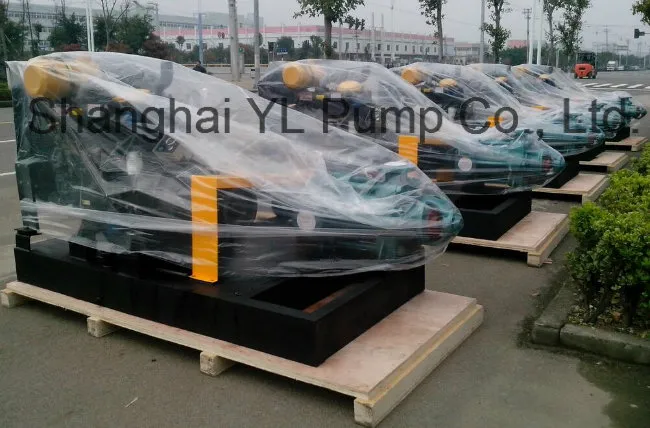

5.Package Picture
Horizontal Multistage High Pressure Electric Motor Centrifugal Water Pump

6.The service
1.Delivery: Delivery time will be on time as the contact. Usually, the delivery time is of centrifugal pump is for 15-25 working days.
2.Warranty: 1 year for the pump body, 3 months for the main working parts.
3.Package:According to your quantity, we use plywood case which is durable for ocean transport.
4.Shipping: By Sea and By Air
5.Payment: We are accept T/T,L/C,West Union and so on.
6.Pre-sales Service:According to your requirement, we will give your our profession advice of pump solution.
7.On-sales Service:We will clearly show you everything in fact when you place an order with us. We will takes photos or videos to show you order production situation.
8.After-sales Service: We will full report you the production progress and plan. Meanwhile, we will follow up the pump working conditions per three months when the pumps put into use, and can send the spare parts to you within one week if you need.
