Product Description
Tag:High Quality Sanitary Stainless Steel Liquid Transfer elivery pump Centrifugal Pump
Standard design

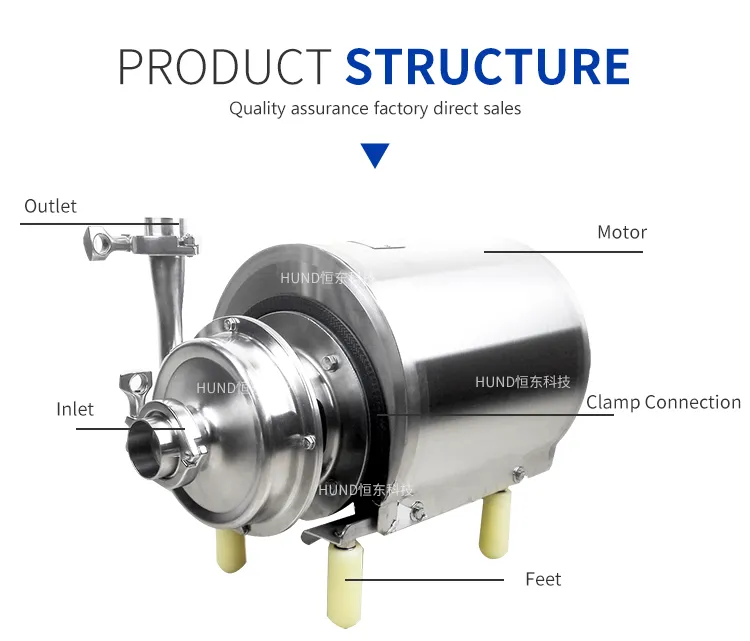

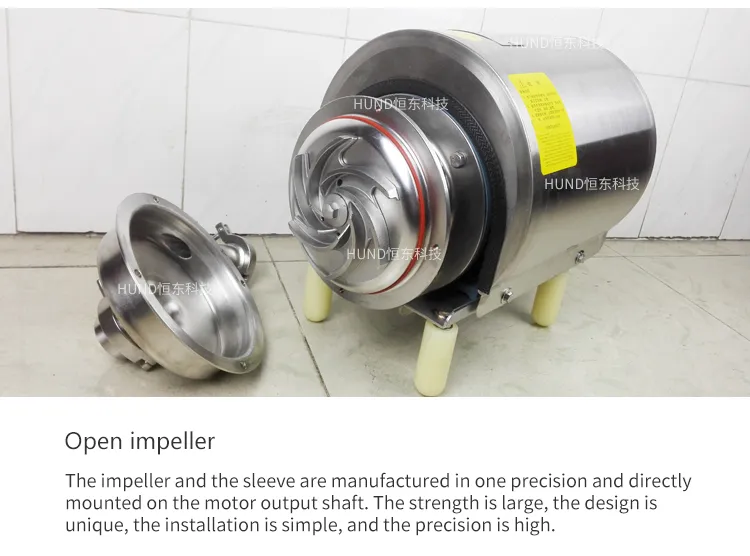

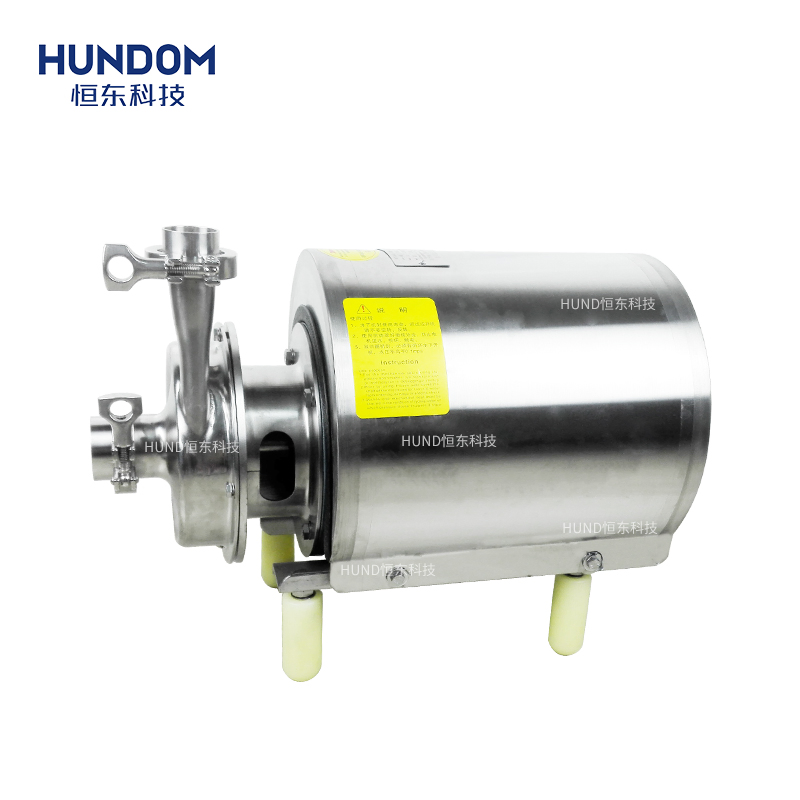

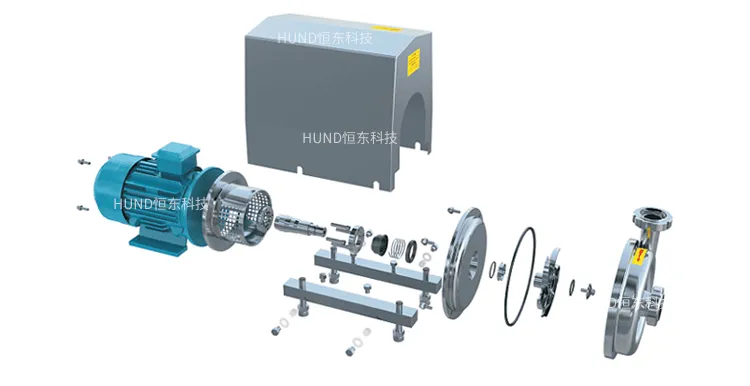

The santiary centrifugal pump is composed of motor,pump shaft,mechanical clamping jacket,
sanitary mechanicl seal,connection support,rear plate,impeller,pump shell etc.The sanitary
centrifugal pump has large internal round chamfer and cleaning type seal.The BLS series sanitary
centrifugal pump specially designed for CIP has the staineless steel protection cover used for protecting the motor and the equipment is supported by four adjustable feet.
Materials
Materials of liquid passing parts:AISI316L.AISI316 or AISI304 stainless steel
Material of other parts: AISI304 stainless steel
Mix flow:150m3 /H
Max.working pressure:7bar/99PSI
Motor power:0.75/1.1/1.5/2.2/......37kw
Voltage:110v,220v,380v,440v
Motor choice:ABB/SIEMENS/DOMESTIC
Motor Frequency:50Hz.60Hz
Technical Parameters
| Model | Flow(m³/h) | Pump Head | Power(kw) | Inlet(mm) | Outlet(mm) |
| HD03-15 | 3 | 15 | 0.75 | 38 | 32 |
| HD03-20 | 3 | 20 | 1.1 | 38 | 32 |
| HD05-24 | 5 | 24 | 1.5 | 51 | 38 |
| HD05-32 | 5 | 32 | 2.2 | 51 | 38 |
| HD10-24 | 10 | 24 | 2.2 | 51 | 38 |
| HD10-32 | 10 | 32 | 3 | 51 | 38 |
| HD15-24 | 15 | 24 | 3 | 51 | 51 |
| HD20-24 | 20 | 24 | 4 | 51 | 51 |
| HD20-35 | 20 | 35 | 5.5 | 63.5 | 51 |
| HD30-24 | 30 | 24 | 5.5 | 63.5 | 51 |
| HD30-35 | 30 | 35 | 7.5 | 63.5 | 51 |
| HD40-24 | 40 | 24 | 7.5 | 76 | 63.5 |
| HD50-24 | 50 | 24 | 7.5 | 76 | 63.5 |
| HD50-35 | 50 | 35 | 11 | 76 | 63.5 |
| HD80-30 | 80 | 30 | 15 | 89 | 76 |
| HD80-40 | 80 | 40 | 18.5 | 102 | 89 |
