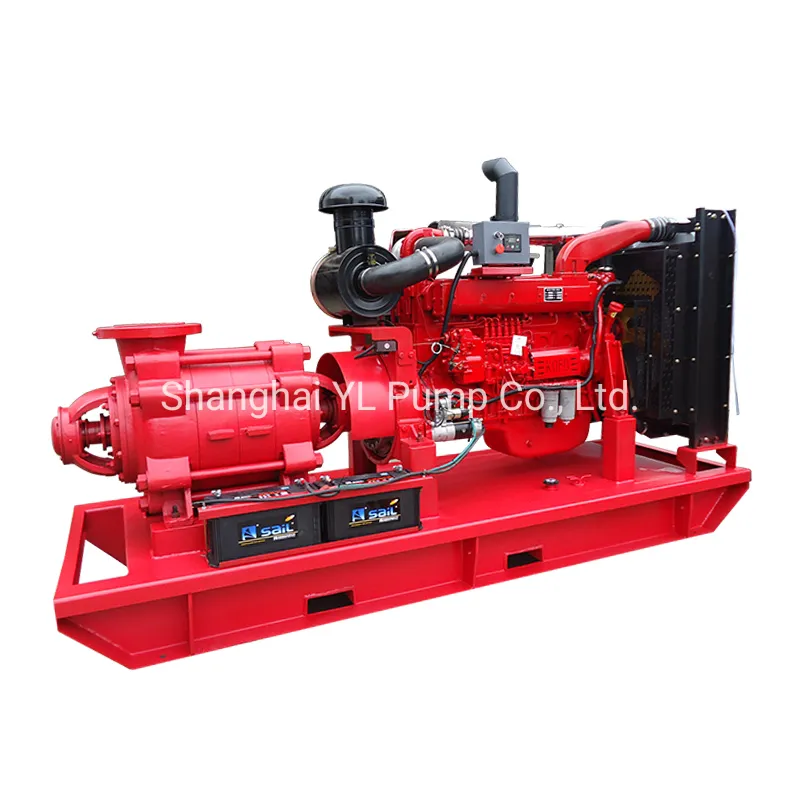

High Pressure Diesel Enigne Multistage Mining Pump for Sale

Product Description

High Pressure Diesel Enigne Multistage Mining Pump for Sale

1.Technical Parameters

D(DF,DY,MD) 155-30× (2-10) / 150 D(DF,DY,MD) 30× (2-10)
Stage	Capacity		Head	Rating Speed	Efficiency	Shaft power	NPSHr	Impeller Dia	Pump Weight
	Capacity		Head	Rating Speed	Efficiency	Shaft power	NPSHr	Impeller Dia	Pump Weight
	m3/h	L/s	m	r/min	%	KW	m	mm	kg
2	119	33	64	1480	69.5	29.8	3.2	φ305	476
	155	43	60		75	33.71	3.9
	190	52.8	54		76	36.95	4.8
3	119	33	96	1480	69.5	44.7	3.2	φ305	546
	155	43	90		75	50.57	3.9
	190	52.8	81		76	55.42	4.8
4	119	33	128	1480	69.5	59.6	3.2	φ305	617
	155	43	120		75	67.42	3.9
	190	52.8	108		76	73.9	4.8
5	119	33	160	1480	69.5	74.5	3.2	φ305	687
	155	43	150		75	84.28	3.9
	190	52.8	135		76	92.37	4.8
6	119	33	192	1480	69.5	89.4	3.2	φ305	757
	155	43	180		75	101.1	3.9
	190	52.8	162		76	110.8	4.8
7	119	33	224	1480	69.5	104.3	3.2	φ305	827
	155	43	210		75	118.0	3.9
	190	52.8	189		76	129.3	4.8
8	119	33	256	1480	69.5	119.2	3.2	φ305	897
	155	43	240		75	134.8	3.9
	190	52.8	216		76	147.8	4.8
9	119	33	288	1480	69.5	134.1	3.2	φ305	968
	155	43	270		75	151.7	3.9
	190	52.8	243		76	166.3	4.8
10	119	33	320	1480	69.5	149.0	3.2	φ305	1038
	155	43	300		75	168.6	3.9
	190	52.8	270		76	184.7	4.8

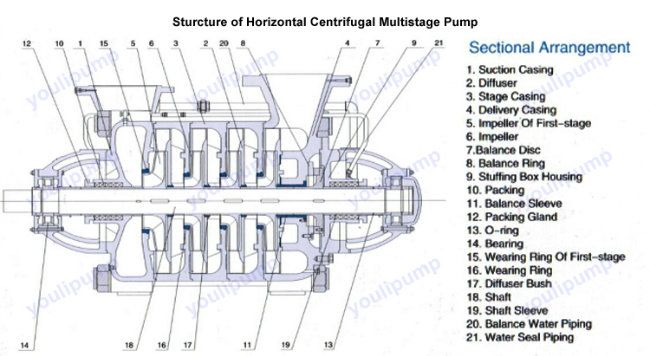

2.Structure
High Pressure Diesel Enigne Multistage Mining Pump for Sale

3.Introduction
The pump is of sub-horizontal, multistage single suction and centrifugal , using state-recommended hydromodule. The pump is efficient, reliable, and durable with low noise performance, easy maintenance and wide scope of usages.

4. Technical Features
1.High efficiency and energy saving
2.advanced process equipment
3.Unique Structure
4.Material choosing
5.Fine appearance

5.Application
1.Transporting clean water or liquid with physicochemical property similar to that of the clear water.
2.Delivering hot water ,oil, corrosive liquid or medium containing abrasive material through special employment of material .sealing mode,or cooling system.
High Pressure Diesel Enigne Multistage Mining Pump for Sale

6.The Service
1.Delivery: Delivery time will be on time as the contact. Usually, the delivery time is of centrifugal pump is for 15-25 working days.
2.Warranty: 1 year for the pump body, 3 months for the main working parts.
3.Package:According to your quantity, we use plywood case which is durable for ocean transport.
4.Shipping: By Sea and By Air
5.Payment: We are accept T/T,L/C,West Union and so on.
6.Pre-sales Service:According to your requirement, we will give your our profession advice of pump solution.
7.On-sales Service:We will clearly show you everything in fact when you place an order with us. We will takes photos or videos to show you order production situation.
8.After-sales Service: We will full report you the production progress and plan. Meanwhile, we will follow up the pump working conditions per three months when the pumps put into use, and can send the spare parts to you within one week if you need.

7.About US
High Pressure Diesel Enigne Multistage Mining Pump for Sale
