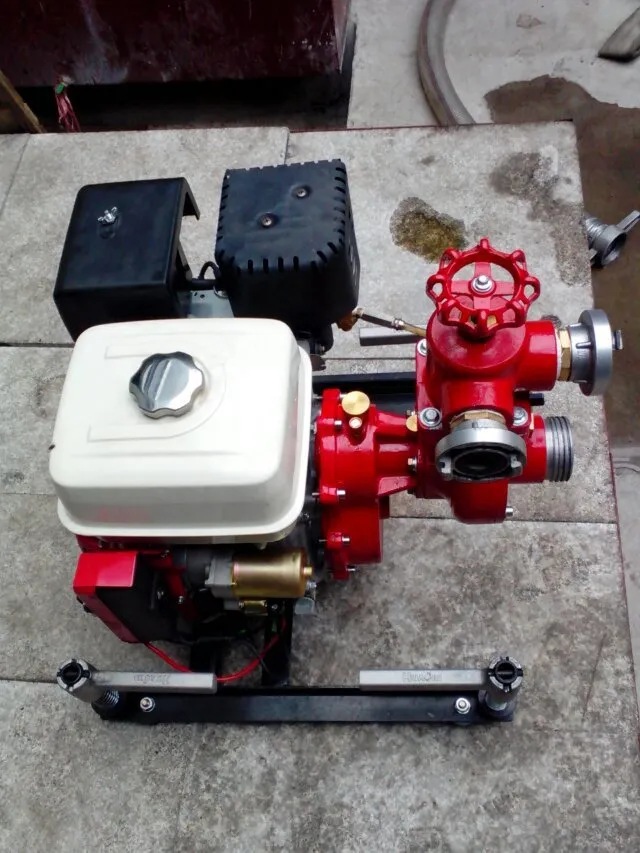

High Pressure 10 Bar Head 150m Forest Fire Fighting Pump
Product DescriptionJBQ10/3.6 Forest fire pumpEngine:4 stroke,air cooled engine,Kohler CH440 or Honda GX390Output power:14HP (10.3KW) or 13 HP (9.6KW)Pump performance220 L/min at 1.0MPa400 L/min at 0.8 MPa500 L/min at 0.6 MPaWeight:67KGSize:610 x 560 x 600 mmProduct ParametersType4 strokeCylinder no.......
Send Inquiry
Product Description

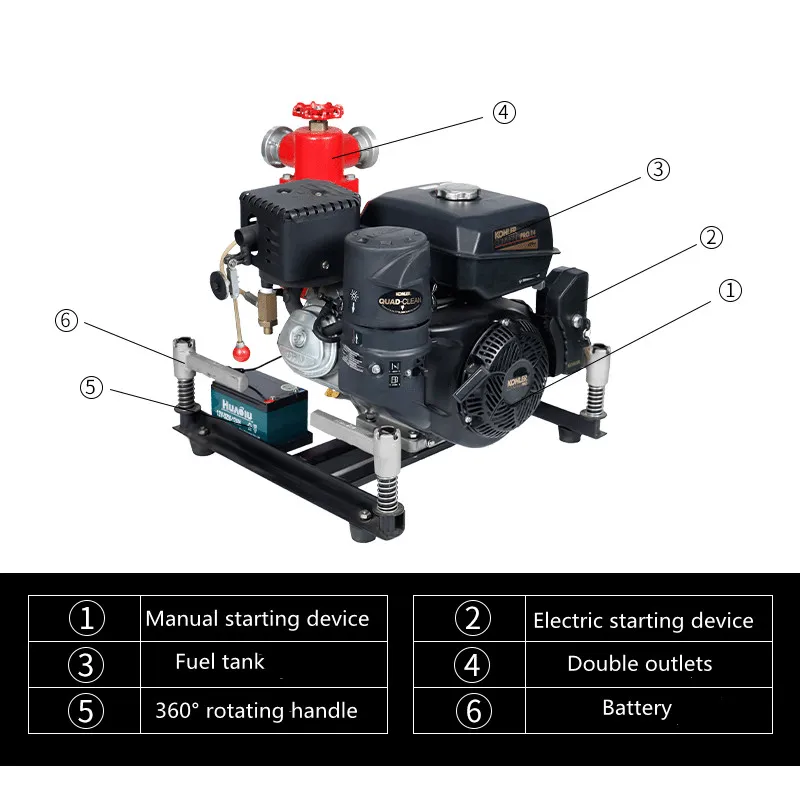

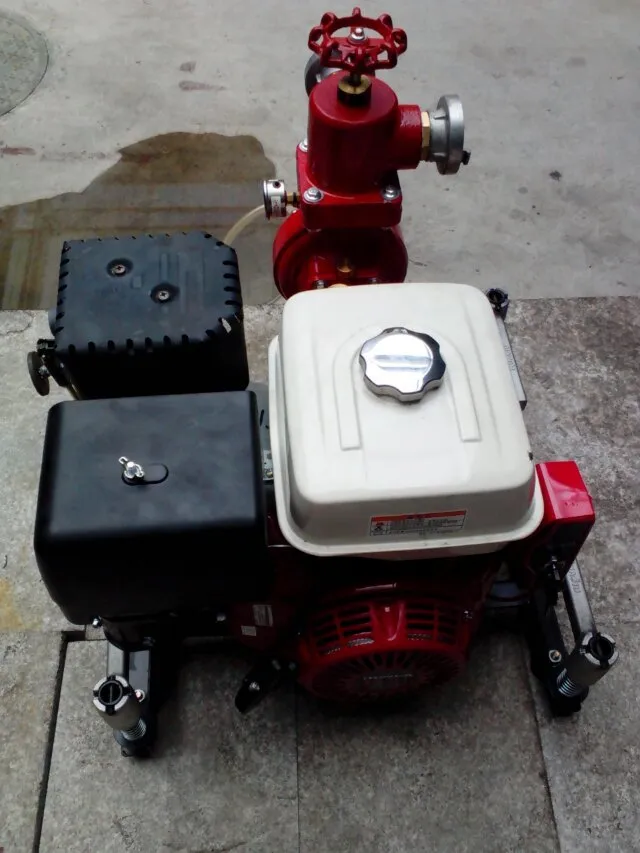

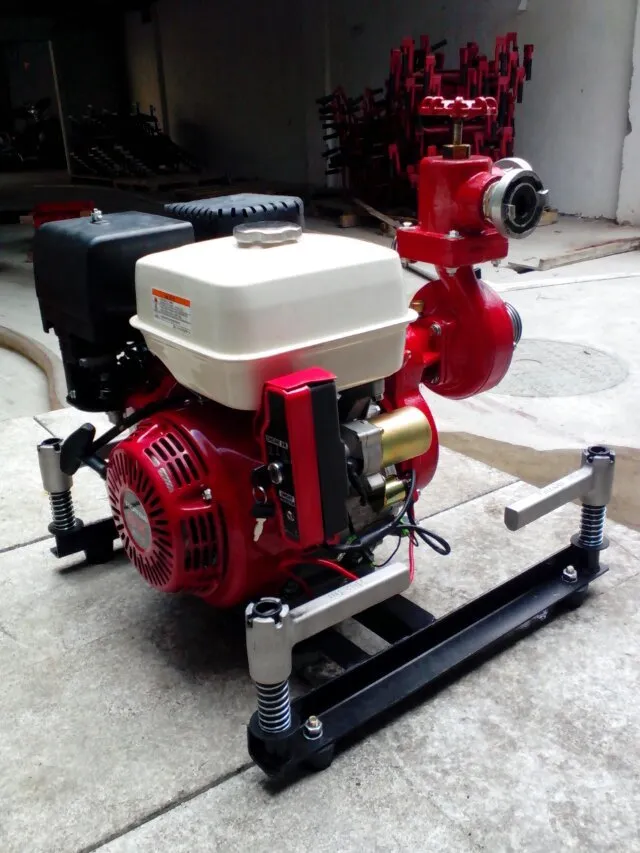

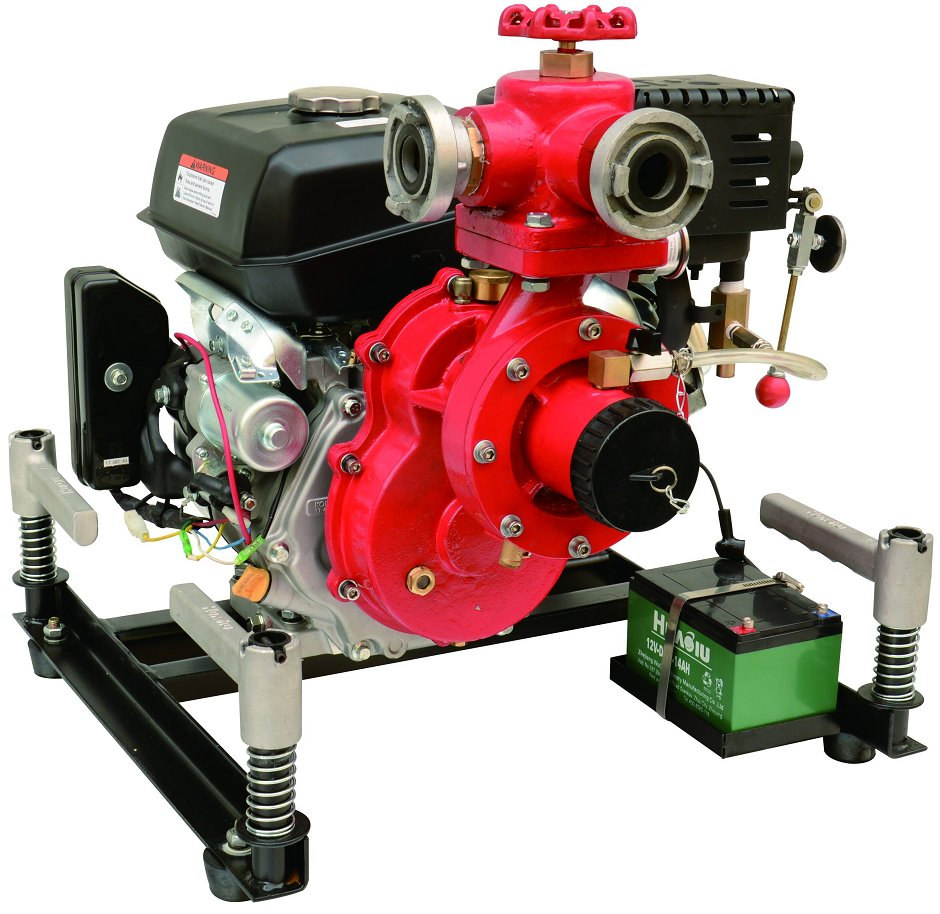

JBQ10/3.6 Forest fire pump
Engine:4 stroke,air cooled engine,Kohler CH440 or Honda GX390
Output power:14HP (10.3KW) or 13 HP (9.6KW)
Pump performance
220 L/min at 1.0MPa
400 L/min at 0.8 MPa
500 L/min at 0.6 MPa
Weight:67KG
Size:610 x 560 x 600 mm
| Type | 4 stroke |
| Cylinder no. | Single cylinder |
| Fuel tank capacity | 6.5L |
| Fuel system | Carburetor,manual choke |
| Lubrication system | Splash lubrication |
| Engine oil capacity | 0.9L |
| Starting | Manual/electric(option for remote control) |
| Ignition | Transistorized coil electric ignition |
| Fuel consumption | 3.5L/h |
| Pump type | SIngle suction single stage impeller |
| Suction Dia | 2.5''(65mm) |
| Outlet Dia | 1.5''(40mm) |
| Outlet qty | 2PC |
| Method of drawing water | Exhaust water diversion(option for vacuum pump priming water) |
| Time of drawing water | Less than 35s |
| Maximum suction height | 6m |
| Maximum head | 150m |
| Nominal flow | 220 L/min |
| Nominal pressure | 1.0Mpa |
