Fire Equipment 27HP 6bar 960lpm Honda Gx690 Portable Fighting Pump
Product DescriptionJBQ6.0/14.5-H Portable fire pumpEngine:4 stroke,air-cooled gasoline engine,Honda GX690(Option for Lifan 2V78F engine)Output power27 HP(20 KW)Pump performance960 L/min at 0.6MPa1180 L/min at 0.4 MPa1500 L/min at 0.2MPaWeight:85 kgSize:690x600x630(mm)Product Parameters Type4 strokeC......
Send Inquiry
Product Description

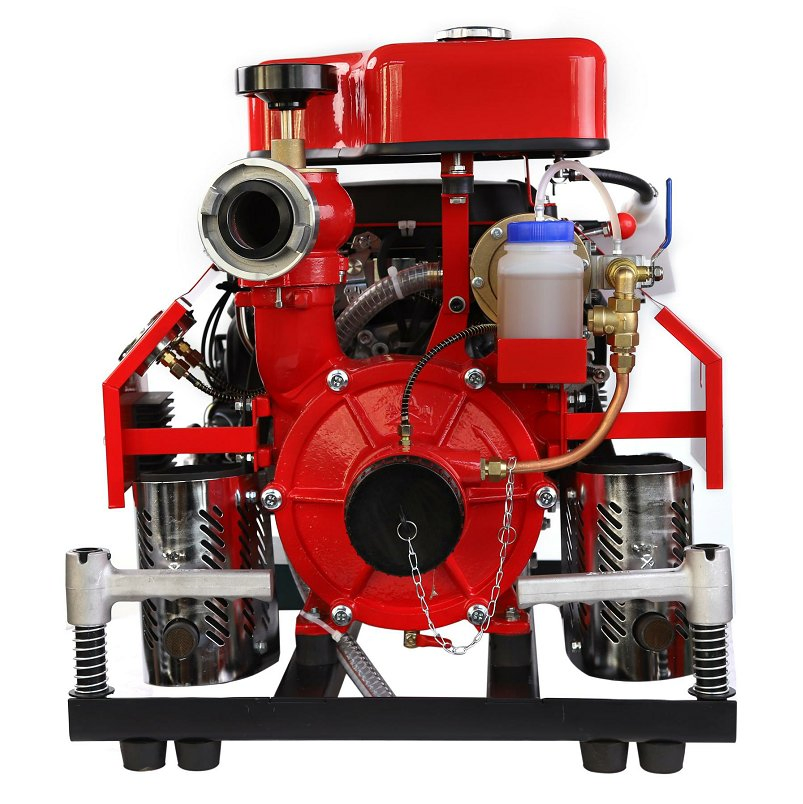

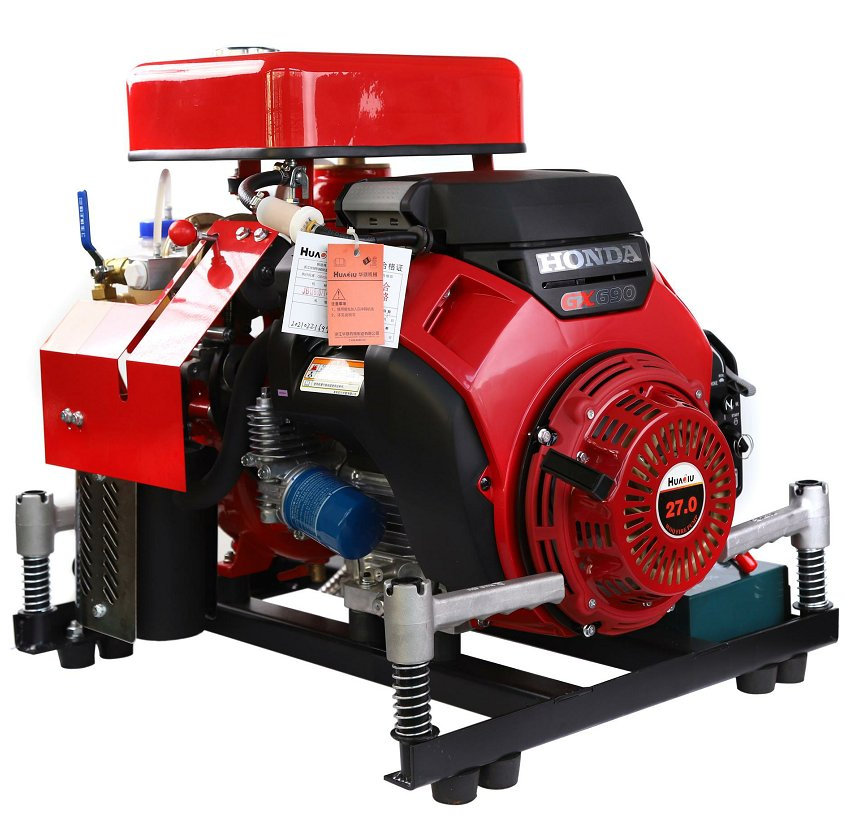

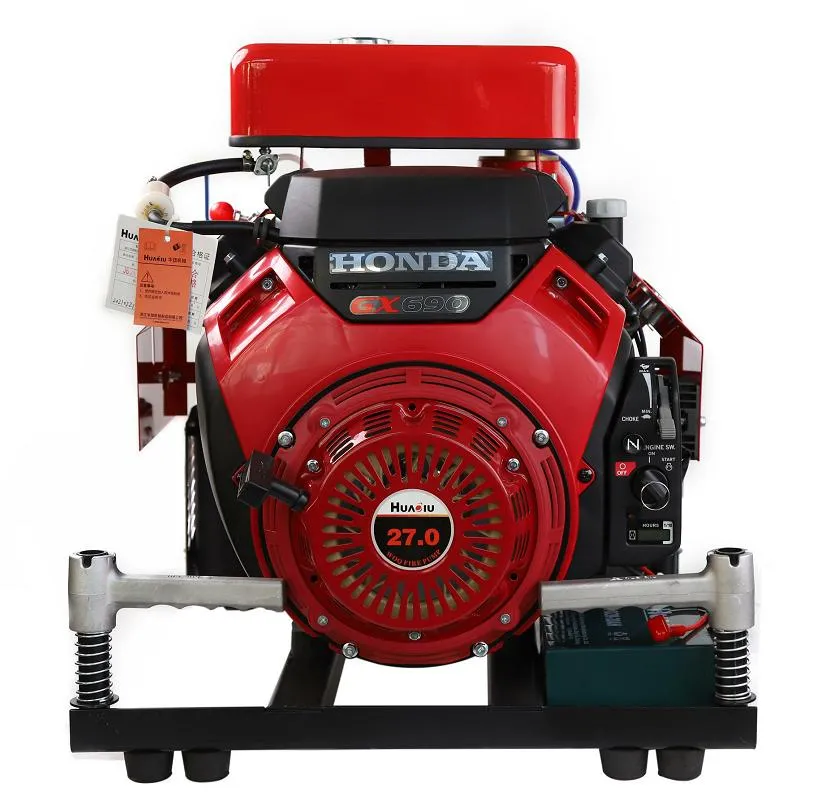

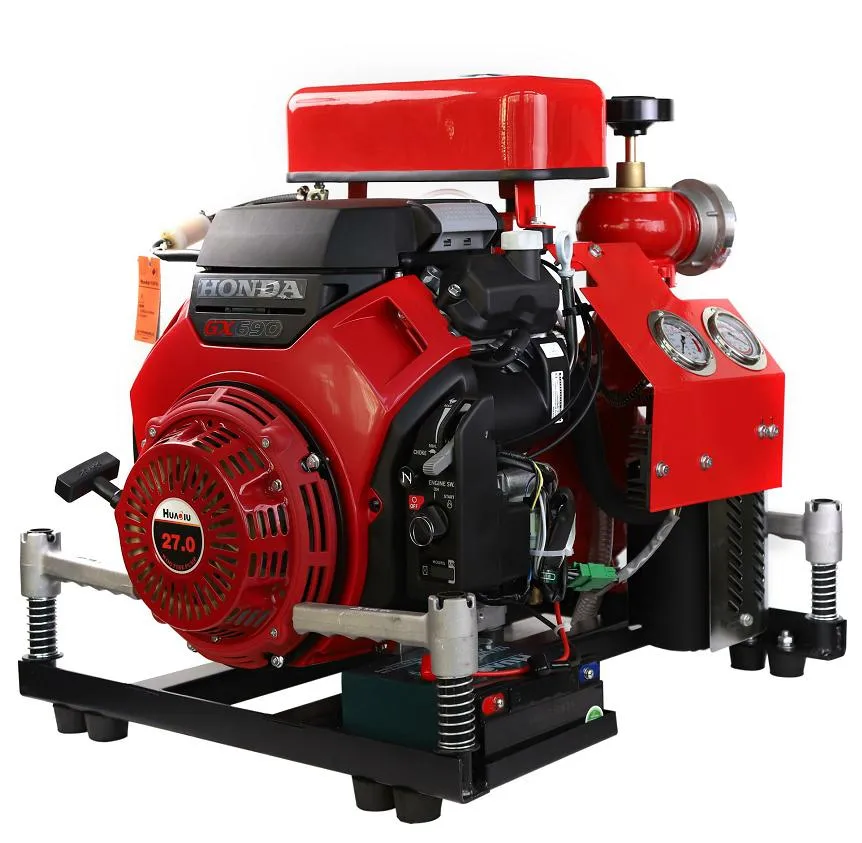

JBQ6.0/14.5-H Portable fire pump
Engine:4 stroke,air-cooled gasoline engine,Honda GX690(Option for Lifan 2V78F engine)
Output power
27 HP(20 KW)
Pump performance
960 L/min at 0.6MPa
1180 L/min at 0.4 MPa
1500 L/min at 0.2MPa
Weight:85 kg
Size:690x600x630(mm)
| Type | 4 stroke |
| Cylinder No. | Double cylinder |
| Fuel type | unleaded gasoline min 87 octane |
| Fuel tank | 7L |
| Fuel system | Solenoid valve,carburetor |
| Lubrication system | Forced lubrication |
| Engine oil capacity | 1.6L |
| Starting | Manual/Electric |
| Ignition | Transistorized coil electric ignition |
| Pump type | Single suction single stage impeller |
| Fuel consumption | 6L/h |
| Suction Dia | 3''(80mm) |
| Outlet Dia | 2.5''(65mm) |
| Outlet qty | 1PC |
| Outlet valve type | Ball valve |
| Method of drawing water | Rotary vane vacuum pump water diversion |
| Time of drawing water | Less than 15s |
| Max suction height | 9m |
| Max head | 85m |
| Max flow | 1500 L/min |
| Nominal flow | 900 L/min |
| Nominal flow | 0.6MPa |
