China Electric Motor Driven Multistage Horizontal Centrifugal Water Pump

Product Description

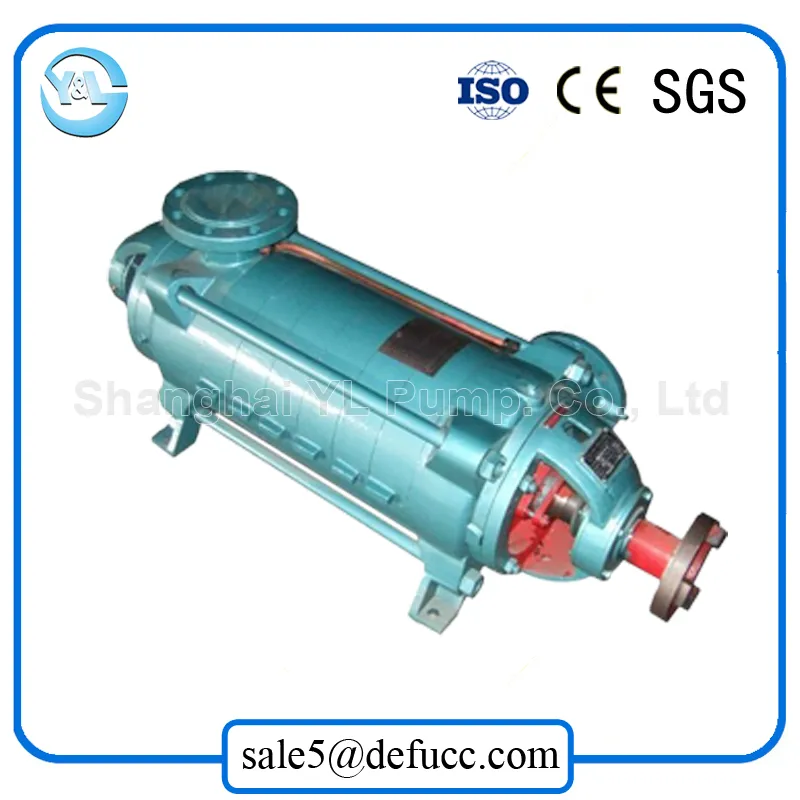

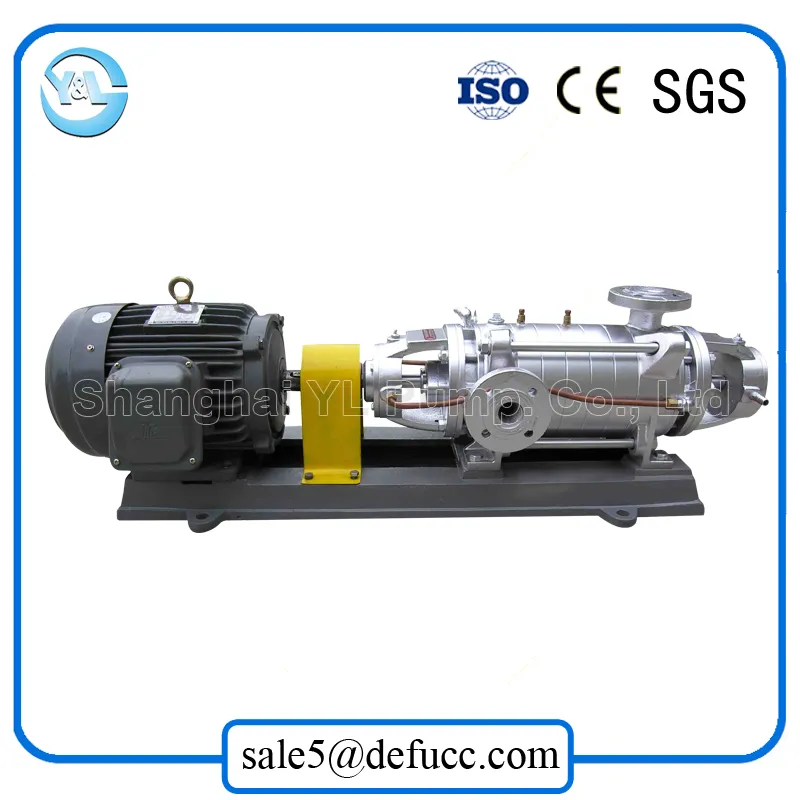

Electric Motor Driven Multistage Horizontal Centrifugal Water Pump

Structure
Electric Motor Driven Multistage Horizontal Centrifugal Water Pump

The multistage centrifugal pump is driven by electric motor. The head of pump will higher because of the stage added. Our pump is applicable to deliver those fluid without solid, particles or any other suspended stuff, water for instance.

Specification

D(DF,DY,MD)6-50×(2-14)
Stage	Capacity		Head	Rating Speed	Efficiency	Shaft power	NPSHr	Impeller Dia	Pump Weight
	Capacity		Head	Rating Speed	Efficiency	Shaft power	NPSHr	Impeller Dia	Pump Weight
	m3/h	L/s	m	r/min	%	KW	m	mm	kg
2	3.75	1.04	104	2950	28	3.79	3.0	φ198	142.0
	6.3	1.75	100		30	5.72	3.0
	7.5	2.08	96		29	6.76	3.5
3	3.75	1.04	156	2950	28	5.69	3.0	φ198	156.0
	6.3	1.75	150		30	8.58	3.0
	7.5	2.08	144		29	10.1	3.5
4	3.75	1.04	208	2950	28	7.58	3.0	φ198	170.0
	6.3	1.75	200		30	11.4	3.0
	7.5	2.08	192		29	13.5	3.5
5	3.75	1.04	260	2950	28	9.48	3.0	φ198	183.6
	6.3	1.75	250		30	14.3	3.0
	7.5	2.08	240		29	16.9	3.5
6	3.75	1.04	312	2950	28	11.4	3.0	φ198	197.2
	6.3	1.75	300		30	17.2	3.0
	7.5	2.08	288		29	20.3	3.5
7	3.75	1.04	364	2950	28	13.3	3.0	φ198	210.9
	6.3	1.75	350		30	20.0	3.0
	7.5	2.08	336		29	23.7	3.5
8	3.75	1.04	416	2950	28	15.2	3.0	φ198	224.5
	6.3	1.75	400		30	22.9	3.0
	7.5	2.08	384		29	27.0	3.5
9	3.75	1.04	468	2950	28	17.1	3.0	φ198	238.1
	6.3	1.75	450		30	25.7	3.0
	7.5	2.08	432		29	30.4	3.5
10	3.75	1.04	520	2950	28	19.0	3.0	φ198	251.7
	6.3	1.75	500		30	28.6	3.0
	7.5	2.08	480		29	33.8	3.5
11	3.75	1.04	572	2950	28	20.8	3.0	φ198	265.3
	6.3	1.75	550		30	31.4	3.0
	7.5	2.08	528		29	37.2	3.5
12	3.75	1.04	624	2950	28	22.7	3.0	φ198	279.0
	6.3	1.75	600		30	34.3	3.0
	7.5	2.08	576		29	40.6	3.5
13	3.75	1.04	676	2950	28	24.6	3.0	φ198	293.0
	6.3	1.75	650		30	37.1	3.0
	7.5	2.08	624		29	43.9	3.5
14	3.75	1.04	728	2950	28	26.5	3.0	φ198	308.0
	6.3	1.75	700		30	40.0	3.0
	7.5	2.08	672		29	47.4	3.5

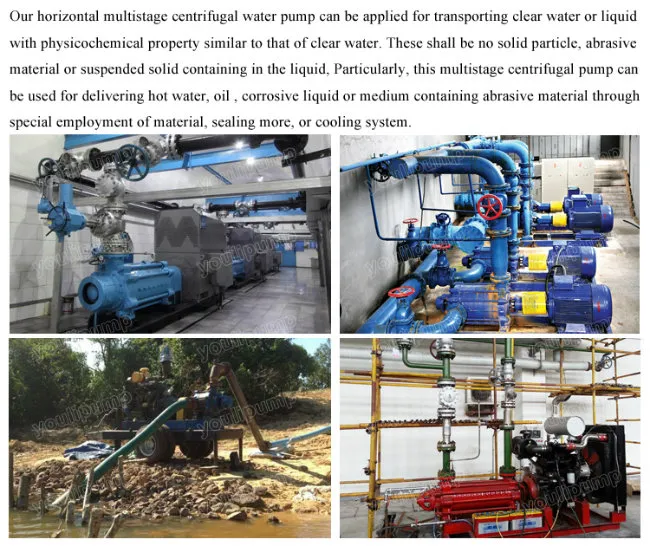

Application Electric Motor Driven Multistage Horizontal Centrifugal Water Pump

Our Client
Electric Motor Driven Multistage Horizontal Centrifugal Water Pump

Our Service
1.Delivery: Delivery time will be on time as the contact. Usually, the delivery time is of centrifugal pump is for 15-25 working days.
2.Warranty: 1 year for the pump body, 3 months for the main working parts.
3.Package:According to your quantity, we use plywood case which is durable for ocean transport.
4.Shipping: By Sea and By Air
5.Payment: We are accept T/T,L/C,West Union and so on.
6.Pre-sales Service:According to your requirement, we will give your our profession advice of pump solution.
7.On-sales Service:We will clearly show you everything in fact when you place an order with us. We will takes photos or videos to show you order production situation.
8.After-sales Service: We will full report you the production progress and plan. Meanwhile, we will follow up the pump working conditions per three months when the pumps put into use, and can send the spare parts to you within one week if you need.

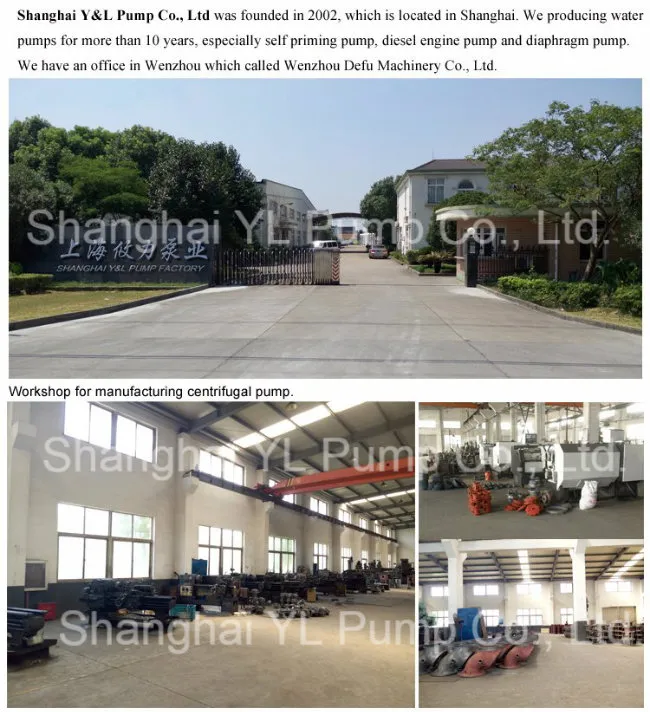

About Us
Electric Motor Driven Multistage Horizontal Centrifugal Water Pump
