Product Description

Double Suction Flood Centrifugal Pump

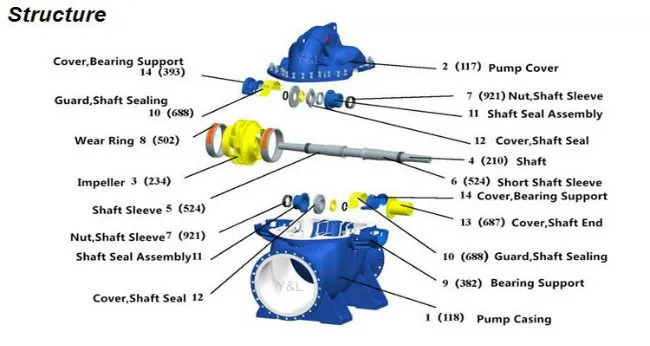

Structure
Double Suction Flood Centrifugal Pump

Technical Parameters

Pump Model	Capacity		Head (m)	Speed (r/min)	Power	Efficiency (%)	NPSH r(m)	Impeller's Dia(mm)	Net Pump Weight(kg)
Pump Model	m3/h	L/S	Head (m)	Speed (r/min)	Shaft Power (kw)	Efficiency (%)	NPSH r(m)	Impeller's Dia(mm)	Net Pump Weight(kg)
TPOW100-400(I)	70	19.4	57	1480	25.3	43	2.5	408	241
	185.5	51.5	52		36	73
	216	60	45		37.3	71
TPOW100-400(I)A	65	18.1	49		20.7	42		378
	170.6	47.4	44		28.4	72
	198	55	38		29.3	70
TPOW100-400(I)B	62	17.2	43		17.7	41		355
	158.6	44	38		23.1	71
	180	50	33		23.4	69
TPOW100-400(I)C	58	16.1	33		13.4	39		325
	141.6	39.3	30.3		16.9	69
	162	45	26		17.1	67
TPOW100-400	60	16.7	56	1480	22.3	41	3.1	408	241
	163	45.3	52		32.1	72
	187.2	52	45		33.2	69
TPOW100-400A	58	16.1	47		19.5	38		378
	149.9	41.6	44		26	69
	180	50	38		28.2	66
TPOW100-400B	54	15	40		16.6	35.5		355
	138.4	38.5	37.5		21.3	66.5
	162	45	33		22.9	63.5
TPOW100-400C	51	14.2	31		13.5	32		325
	121.1	33.6	28.7		15	63
	144	40	25.8		16.9	60

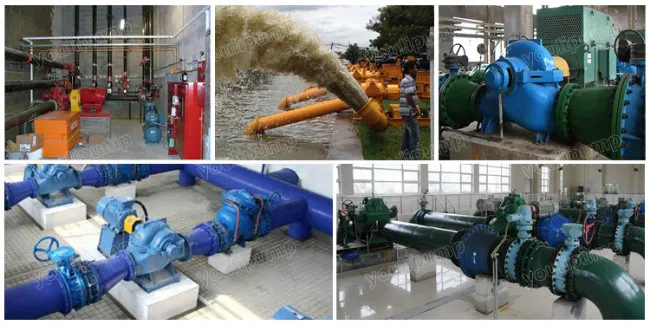

Application
1.the pump can be used for fire extinguishing for motor, transformer, factory and oil system. It can be used as standby fire pump in fire water system.
2.The double suction centrifugal pump is widely used in urban drainage, urban water supply, water plant. central heating system drainage for power plant. paper mill, water supply for air-conditioning system.
3.This kind of water pump has large flow, it is applied to farmland irrigation and drainage water conservancy.
4.The large solid particles which can be passed through are 20% of the pump impeller, our centrifugal pump is used for conveying wastewater, sewage in mine, drainage pumping station, iron and steel metallurgy, petrochemical refining and other fields.
Double Suction Flood Centrifugal Pump

Package
Double Suction Flood Centrifugal Pump

The Service
1.Delivery: Delivery time will be on time as the contact. Usually, the delivery time is of centrifugal pump is for 15-25 working days.
2.Warranty: 1 year for the pump body, 3 months for the main working parts.
3.Package:According to your quantity, we use plywood case which is durable for ocean transport.
4.Shipping: By Sea and By Air
5.Payment: We are accept T/T,L/C,West Union and so on.
6.Pre-sales Service:According to your requirement, we will give your our profession advice of pump solution.
7.On-sales Service:We will clearly show you everything in fact when you place an order with us. We will takes photos or videos to show you order production situation.
8.After-sales Service: We will full report you the production progress and plan. Meanwhile, we will follow up the pump working conditions per three months when the pumps put into use, and can send the spare parts to you within one week if you need.
