China Double Suction Diesel Engine Driven Sewage Pump

Product Description

Double Suction Diesel Engine Driven Sewage Pump

Technical Parameters

Pump Model	Capacity		Head (m)	Speed (r/min)	Power	Efficiency (%)	NPSH r(m)	Impeller's Dia(mm)	Net Pump Weight(kg)
Pump Model	m3/h	L/S	Head (m)	Speed (r/min)	Shaft Power (kw)	Efficiency (%)	NPSH r(m)	Impeller's Dia(mm)	Net Pump Weight(kg)
TPOW80-280	22	6.1	25.9	1480	3.3	47	1.9	275	194
	86	23.9	20.7		6.3	77
	112	31.1	16.5		7.2	69.5
TPOW80-280A	21	5.8	21.8		2.7	46		255
	80.4	22.3	18.1		5.2	76
	102	28.3	14.3		5.8	68.5
TPOW80-280B	19.5	5.4	18.7		2.2	45		235
	73.2	20.3	15		4	75
	92	25.5	12		4.5	67.5
TPOW80-280C	18	5	15.8		1.8	44		215
	66.8	18.6	12.5		3.1	74
	82	22.8	10.5		3.5	66.5
TPOW80-280	60	16.7	95	2950	33	47	6.8	275	194
	172	47.8	82.5		50.2	77
	210	60	73		60.1	69.5
TPOW80-280A	58	16.1	82		28.1	46.2		255
	160	44.4	71.5		40.9	76.2
	198	55	63		49.5	68.7
TPOW80-280B	57	15.8	68		23.4	45.2		235
	146.7	40.8	60		31.9	75.2
	180	50	52		37.7	67.7
TPOW80-280C	56	15.5	56		19.2	44.4		215
	132.6	36.8	49		23.8	74.4
	162	45	41		27.1	66.9

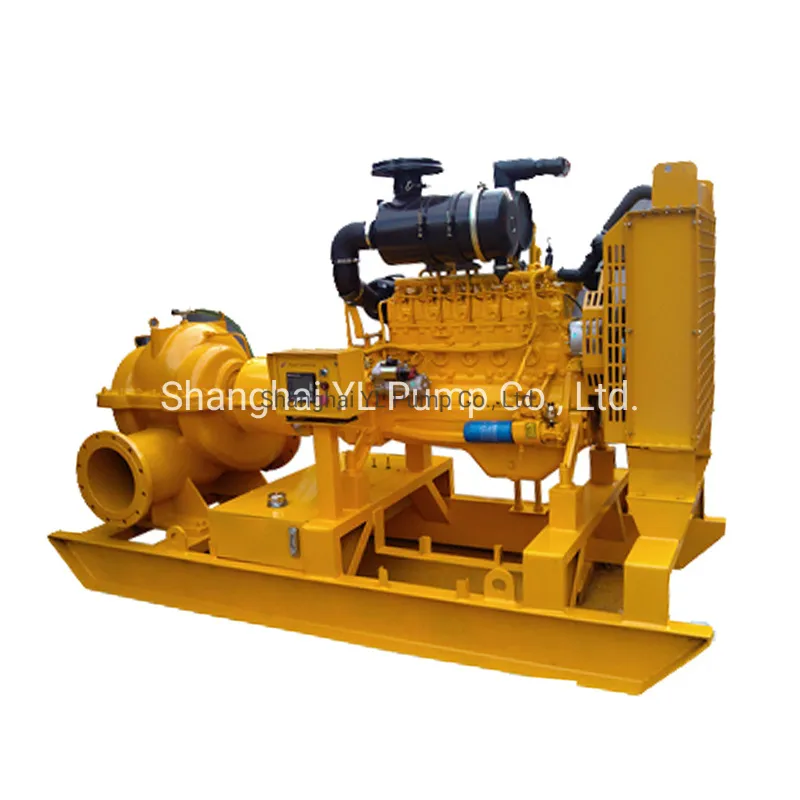

Pump Picture

The pump is mainly used for transporting water or liquid which has the similar physical and chemical properties to water. It has large flow because there are two suction inlets on the impeller.

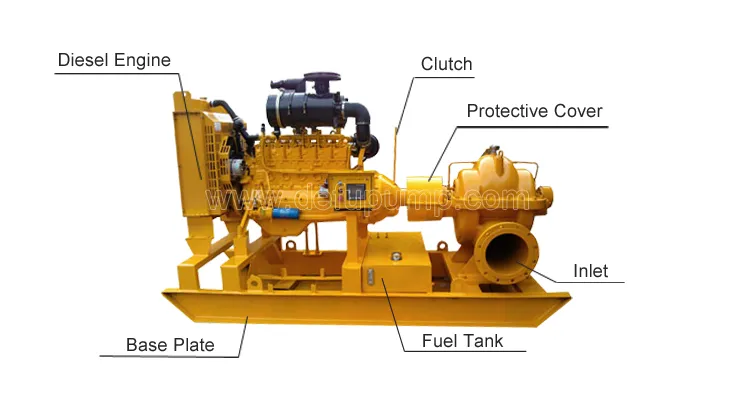

Double Suction Diesel Engine Driven Sewage Pump

Package Picture

Double Suction Diesel Engine Driven Sewage Pump

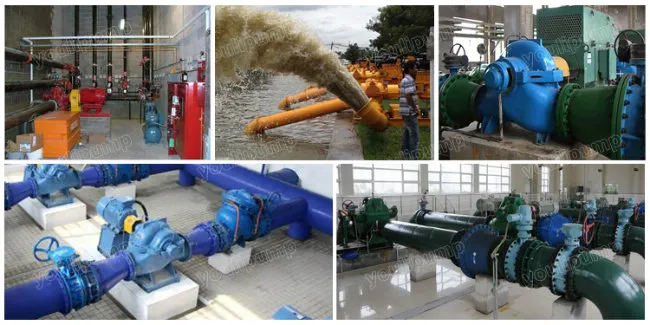

Application
1.the pump can be used for fire extinguishing for motor, transformer, factory and oil system. It can be used as standby fire pump in fire water system.
2.The double suction centrifugal pump is widely used in urban drainage, urban water supply, water plant. central heating system drainage for power plant. paper mill, water supply for air-conditioning system.
3.This kind of water pump has large flow, it is applied to farmland irrigation and drainage water conservancy.
4.The large soild particles which can be passed through are 20% of the pump impeller, our centrifugal pump is used for conveying wastewater, sewage in mine, drainage pumping staton, iron and steel metallurgy, petrochemical refining and other fields.
Double Suction Diesel Engine Driven Sewage Pump

The Service
1.Delivery: Delivery time will be on time as the contact. Usually, the delivery time is of centrifugal pump is for 15-25 working days.
2.Warranty: 1 year for the pump body, 3 months for the main working parts.
3.Package:According to your quantity, we use plywood case which is durable for ocean transport.
4.Shipping: By Sea and By Air
5.Payment: We are accept T/T,L/C,West Union and so on.
6.Pre-sales Service:According to your requirement, we will give your our profession advice of pump solution.
7.On-sales Service:We will clearly show you everything in fact when you place an order with us. We will takes photos or videos to show you order production situation.
8.After-sales Service: We will full report you the production progress and plan. Meanwhile, we will follow up the pump working conditions per three months when the pumps put into use, and can send the spare parts to you within one week if you need.

Our Client

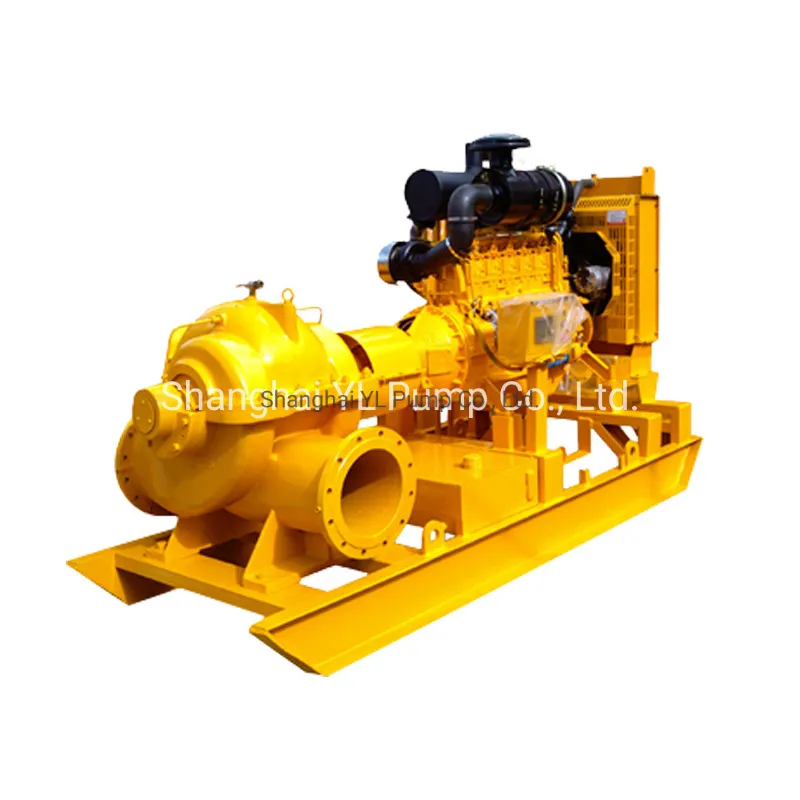

Double Suction Diesel Engine Driven Sewage Pump
