Custom Electric High Pressure Mechanical Seal Irrigation Submersible Sea Water Pump for Urban Water Supply and Drainage

Product Description

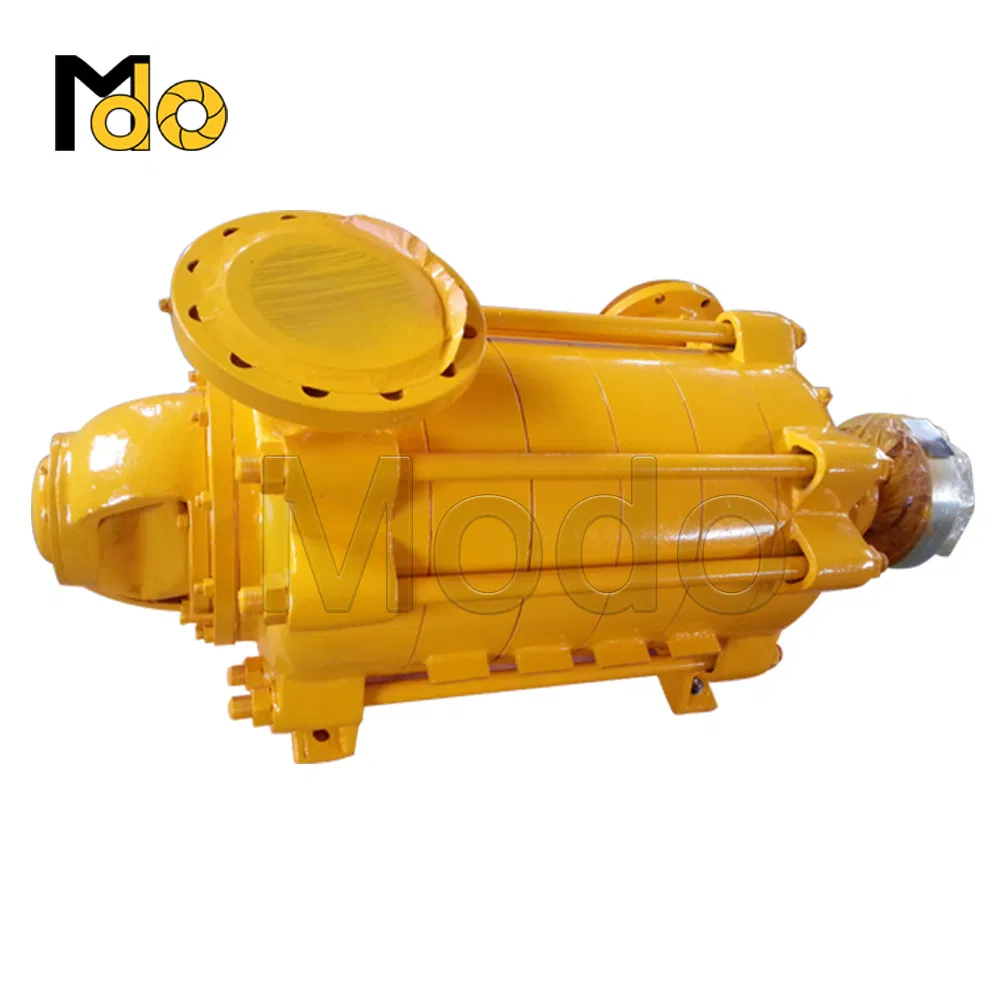

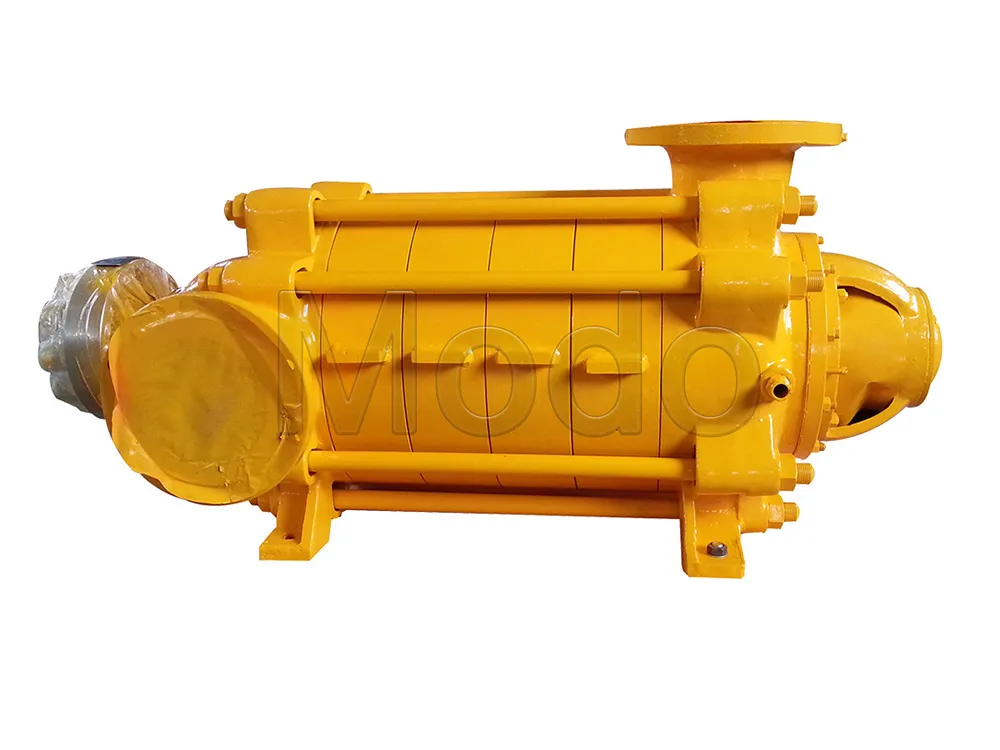

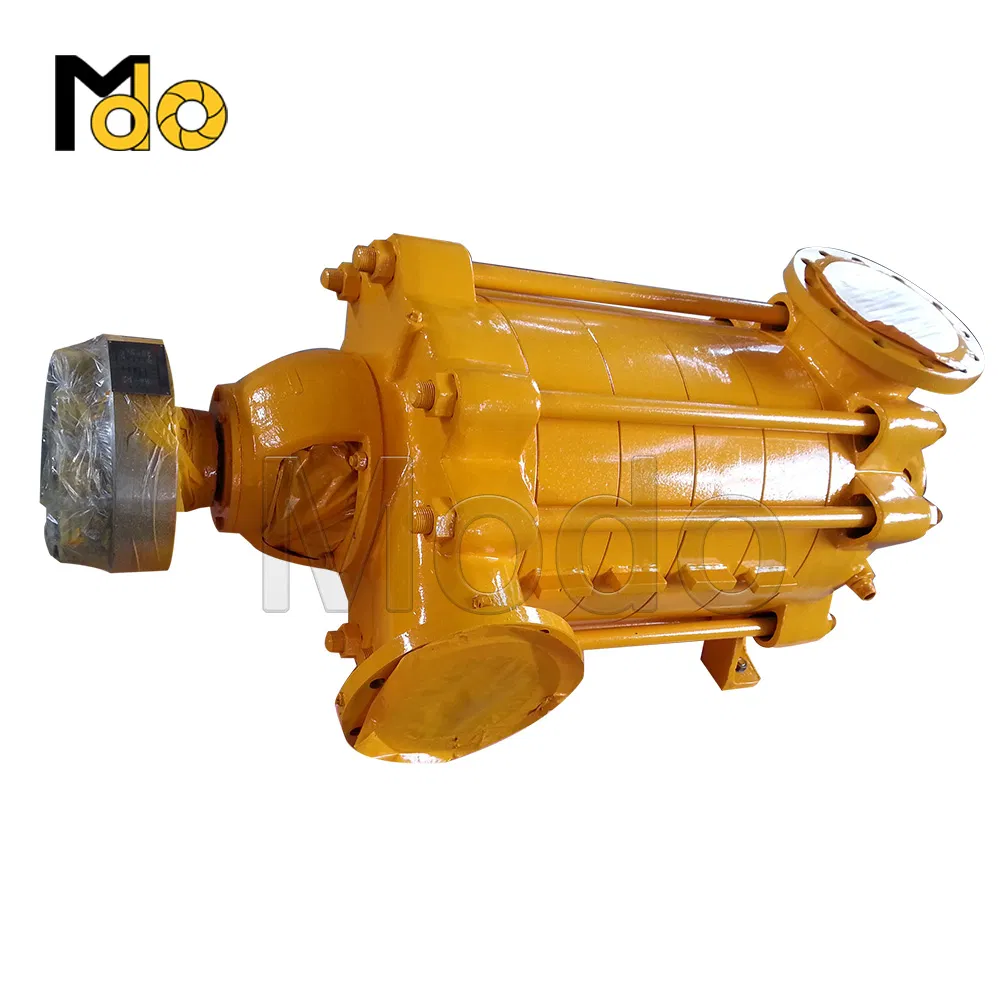

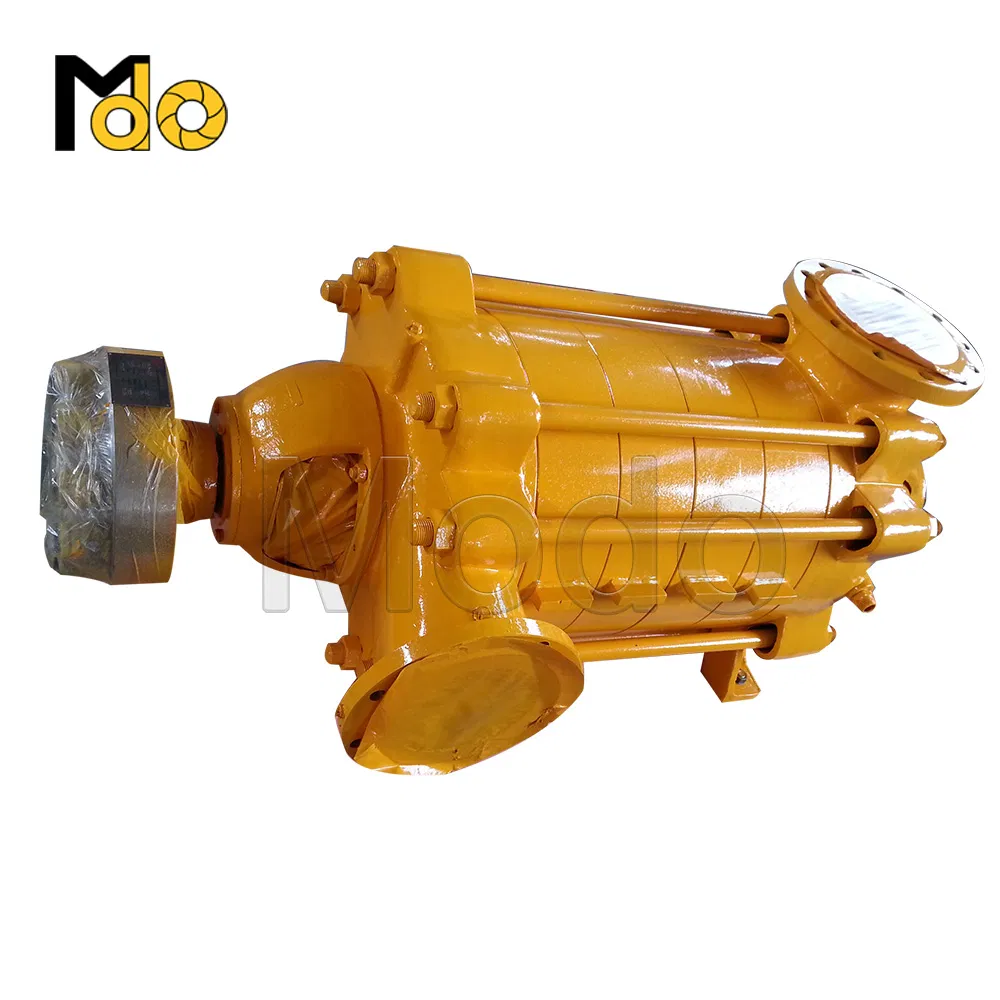

MD Multistage water pump

Type D/DG pump can deliver water without solid particle or the liquid which the chemical and
physical feature are similar with water and temperature less than 105ºC, it is suitable for
delivering water in mine, boiler feed water, heat water and urban water project etc.

Custom Electric High Pressure Mechanical Seal Irrigation Submersible Sea Water Pump for Urban Water Supply and Drainage

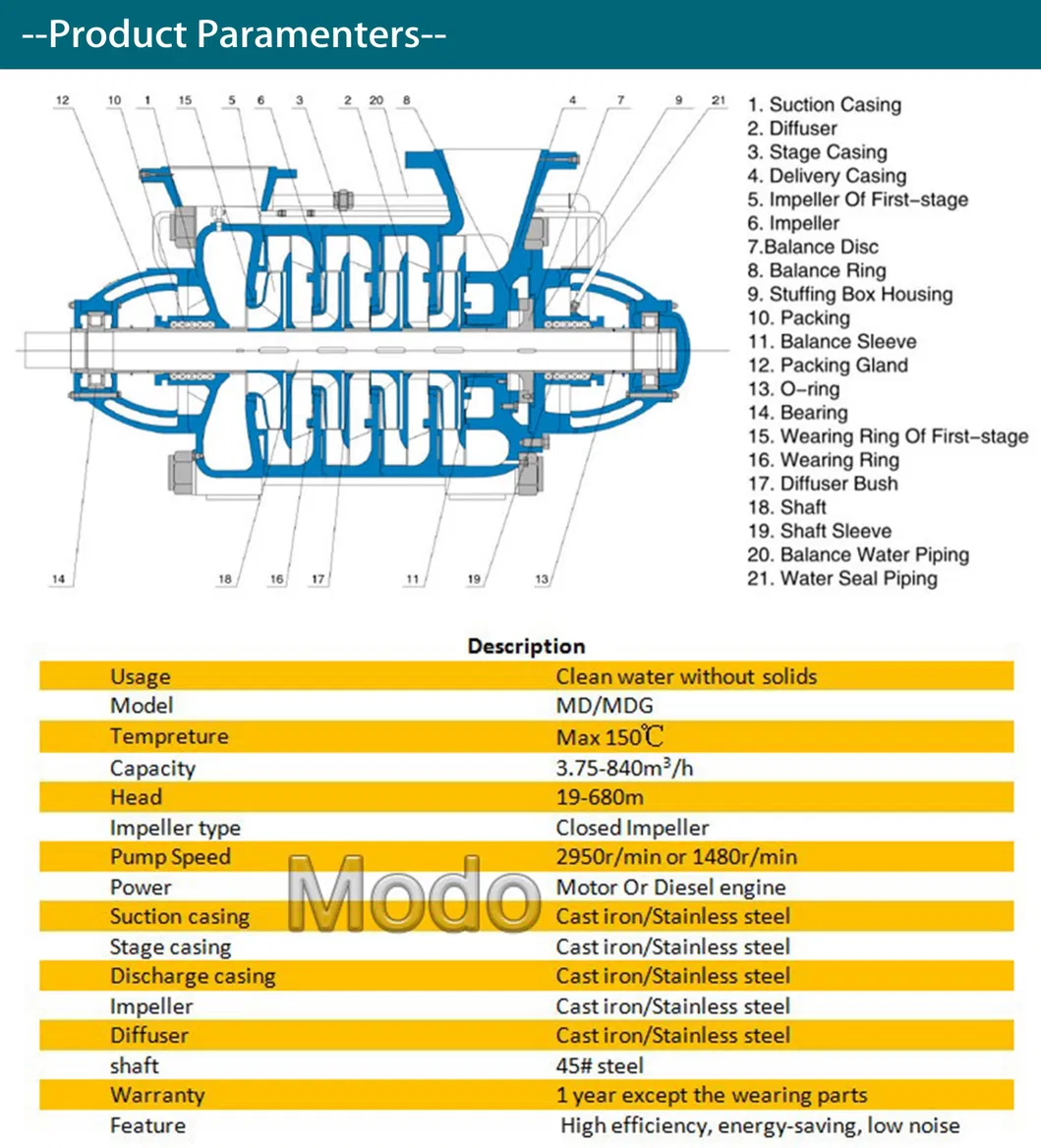

D/DG Water Pump Performance Data
Model	Capacity		Head m	Speed r/min	Motor Power (Kw)	Impeller Dia mm	Weight kg
Model	m3/h	L/S	Head m	Speed r/min	Motor Power (Kw)	Impeller Dia mm	Weight kg
_D/DG6-50x2	_6.3	_1.75	₁₀₀	₂₉₅₀	₁₁	₁₉₈	₁₄₀
D/DG6-50x12	6.3	1.75	600	2950	55	198	340
D/DG25-50x3	25	6.94	150	2950	30	196	220
D/DG25-50x12	25	6.94	600	2950	110	196	409
D/DG46-50x12	46	12.78	600	2950	160	210	475
D/DG85-67x9	85	23.6	603	2950	250	235	1840
D/DG120-50x2	120	33.3	100	2950	55	213	640
D/DG120-50x9	120	33.3	450	2950	220	213	1200
D/DG155-67x9	155	43.1	603	2950	450	235	1800
D/DG360-40X10	360	100	400	1480	630	360	2550
D/DG580-70X10	580	161.1	700	1480	1800	473	4120
D/DG720-60x9	720	200	540	1480	1600	450	3900

Modo Pump Co.,Ltd. is one over 30 years experienced pump manufacturer (established at 1986) in
mining and mineral, power plant, dredging and dredge, hydraulic, irrigation, pulp transfer, chemical,
construction, sea water and oil & gas transfer etc.; Modo Pump Co.,Ltd. is the pump factory has its
own pump selection & design, research and development team to assure provide you efficient,
energy saving slurry pump, water pump, diesel water pump, chemical pump and irrigation pump in
selection & design, use and maintenance program. Our products include slurry pump, sewage pump,
water pump, acid resistant or chemical pump, irrigation pumps, fire pumps and other products
exported to over 90 countries all over the world. The application covers many fields, such as mining
and mineral processing, dredger, tailings transportation, mining, steel, desulfurization pump, boiler
feed water, construction, irrigation, water conservancy facilities, sewage treatment, drainage and
water supply.
Custom Electric High Pressure Mechanical Seal Irrigation Submersible Sea Water Pump for Urban Water Supply and Drainage

1, What information is needed to offer a multistage pump?
Liquid:___
Capacity:___ m3/hr
Head: ___ m
Voltage:___V,
Frequency:___hz

2, What is the max.pressure of the pump?
Max. 10bar at 100m3/hr flowrate.

3, Can this pump transfer hot water?
Yes, the multistage pump can handle hot water up to 160ºC.

4, Can you send the pump to our country?
Of course. Please advise the destination port or your address.

5, How long is your warranty?
12 months.
