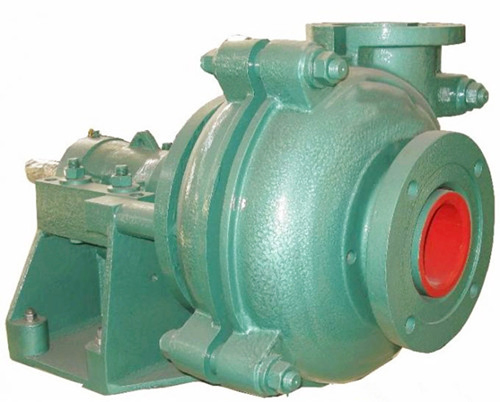

China High Quality Slurry Pump

Product Description

Model: BL, BM BH, BHH
Capacity: 10.8~5400m3 /h
Head: 3~118m
Motor power: 15~1200KW
Introduction: BL BM, BH and BHH series pumps contain cantilever and horizontal centrifugal pumps, which apply to transport slurry with strong corrosion proof and high concentration for many industries such as metallurgy, mine, coal, electric power, building materials and so on. The kind of pump can be used in series for multi stages. Its pump body consist of replaceable antifriction metal lining or rubber lining, and its impeller is made of antifriction metal or rubber. The pump body lining and impeller of BHH serial pump are made of antifriction metal only. The shaft seal of BL .BM, BH and BHH serials pumps may adopt packing seal or centrifugal seal. Pump outlet can be spaced by 45. According to requirement, and it may be installed by rotating eight different angles.

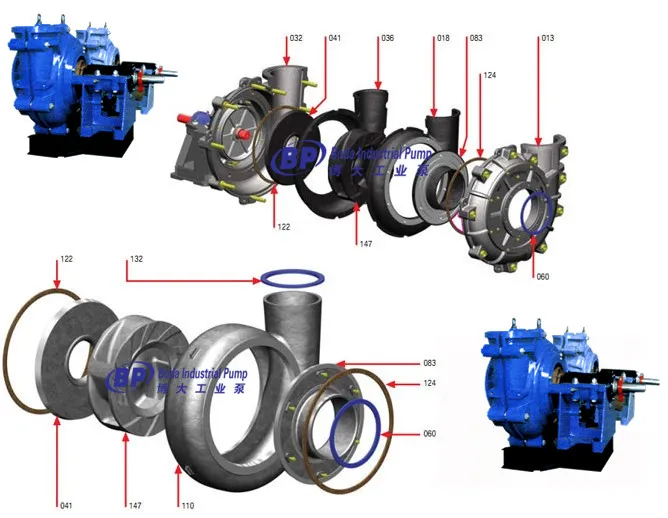

Structure Drawing:
China High Quality Slurry Pump

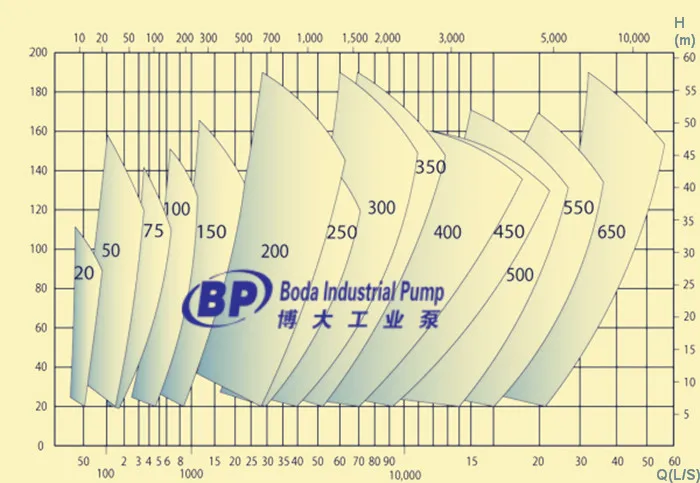

Selection Chart: China High Quality Slurry Pump

Type BM BH	Allowable Mating Max.Power (kw)	Clear Water Performance						Impeller
		Capacity Q		Head H (m)	Speed n (r/min)	Max EFF η(%)	NPSH) (m)	No of Vanes	Impel Dia(mm)
		(m 3 /h)	(L/S)
1.5/1B-BH	15	12.6-28.8	3.5-8	6-68	1200-3800	40	2-4	5	152
2/1.5B-BH	15	32.4-72	9-20	6-58	1200-3200	45	3.5-8	5	184
3/2C-BH	30	39.6-86.4	11-24	12-64	1300-2700	55	4-6	5	214
4/3C-BH	30	86.4-198	24-55	9-52	1000-2200	71	4-6	5	245
4/3D-BH	60
6/4D-BH	60	162-360	45-100	12-56	800-1550	65	5-8	5	365
6/4E-BH	120
6/4D-BH	60	180-396	50-110	7-61	600-1600	55	3-8	4	372
6/4E-BH	120
8/6E-BH	120	360-828	100-230	10-61	500-1140	72	2-9	5	510
8/6R-BH	300
8/6E-BH	120	360-828	100-230	7-52	400-1000	70	2.5-6	4	536
8/6R-BH	300	360-828	100-230	7-52	400-1000	70	2.5-6	4	536
10/8ST-BH	560	612-1368	170-380	11-61	400-850	71	4-10	5	686
12/10ST-BH	560	936-1980	260-550	7-68	300-800	82	6	5	762
14/12ST-BH	560	1260-2772	350-770	13-63	300-600	77	3-10	5	965
16/14ST-BH	560	1368-3060	380-850	11-63	250-550	79	4-10	5	1067
16/14TU-BH	1200
10/8E-BM	120	540-1440	150-400	14-60	600-1100	73	4-10	5	549
10/8R-BM	300

Type BL	Allowable Mating Max. Power (Kw)	Clear Water Performance						Impeller
Type BL	Allowable Mating Max. Power (Kw)	Capacity/ Q m ³ /hr	Head/m	Speed /rpm	Max Efficiency /%	NPSH /m	Nos of Vane s		Impeller Diameter /mm
20A-BL	7.5	2.34-10.8	6--37	1400--3000	30		4		152.4
50B-BL	15	16.2--76	9--44	1400--2800	55	3.5--8	5		190
75C-BL	30	18-151	4--45	900--2400	57	3--6	4		229
100D-BL	60	50-252	7-46	800--1800	60	2--3.5	4		305
150E-BL	120	115--486	12-51.5	800--1500	65	2--6	4		381
200E-BL	120	234--910	9.5--40	600--1100	64	3-6	4		457
250E-BL	120	396--1425	8--30	500--800	77	2--10	5		550
300S-BL	560	468--2538	8--60	400--950	79	2-10	5		653
350S-BL	560	650--2800	10--59	400--840	81	3--10	5		736
400ST-BL	560	720--3312	7--51	300--700	80	2--10	5		825
450 ST-BL	560	1008--4356	9--48	300--600	80	2--9	5		933
550 TU-BL	1200	1980-7920	10-50	250-475	86	4-10	5		1213
