China High Quality Slurry Pump (NP- ZJ )

Shijiazhuang Naipu Pump Co., Ltd is a slurry pump manufacturer of above 20 years' experience, inosculating design, development, manufacture, sales and services as a whole. The company manufactures its products using advanced technique based on well built management and sales & service system. Product is guaranteed with various test and inspection facilities.
They are designed for the handing highly abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial department ect. The pumps of this type may be installed in multistage series.

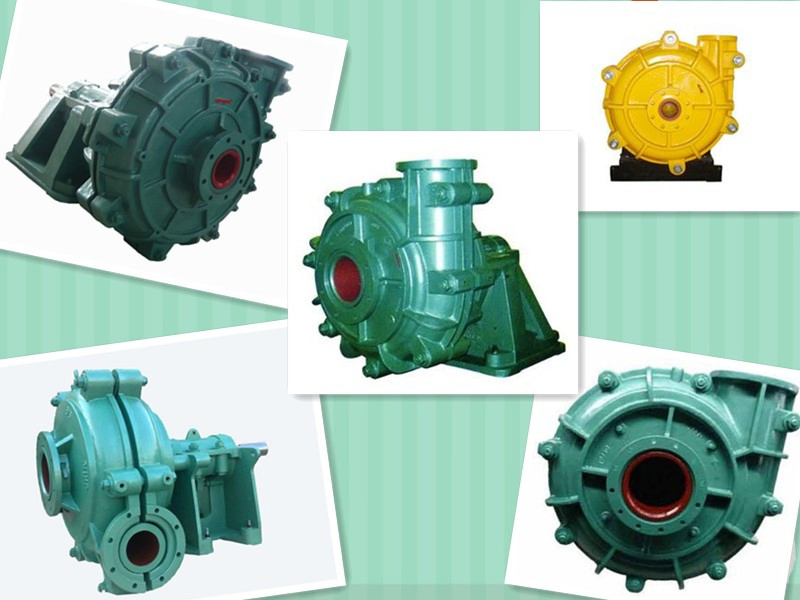

Type ZJ pump are cantilevered, horizontal, centrifugal metal slurry pumps.
1. Double layers' structure, the inner wet ends contain impeller, volute liner, front liner, back liner, the material is high-chrome alloy, HRC>58. The outer layer are frame plate, cover plate, whose material is ductile iron. They bear the internal pressure.
2. The forms of seal are packing seal, expeller seal, mechanical seal.
3. The form of bearings is grease lubrication or oil lubrication.
4. Absolutely Interchangeable with AH series slurry pump spares.

Type notation
100ZJ-D
100- discharge diameter(mm)
ZJ-slurry pump
D-base

Size range (discharge)
1" to 18" (25 mm to 450 mm)
Capacities
To 22, 000 gpm (to 5, 000 m3/hr)
Heads
To 240 ft
To 73 m

Driving Type:

CR CV DC ZV

Remark
A. Interchangeable rubber and metal design allow best material choice for any application
B. Naipu is more than a slurry pump manufacturer. We can help customers select the type, size and operating speed of pumps that will perform at the Lowest Cost of Ownership.
