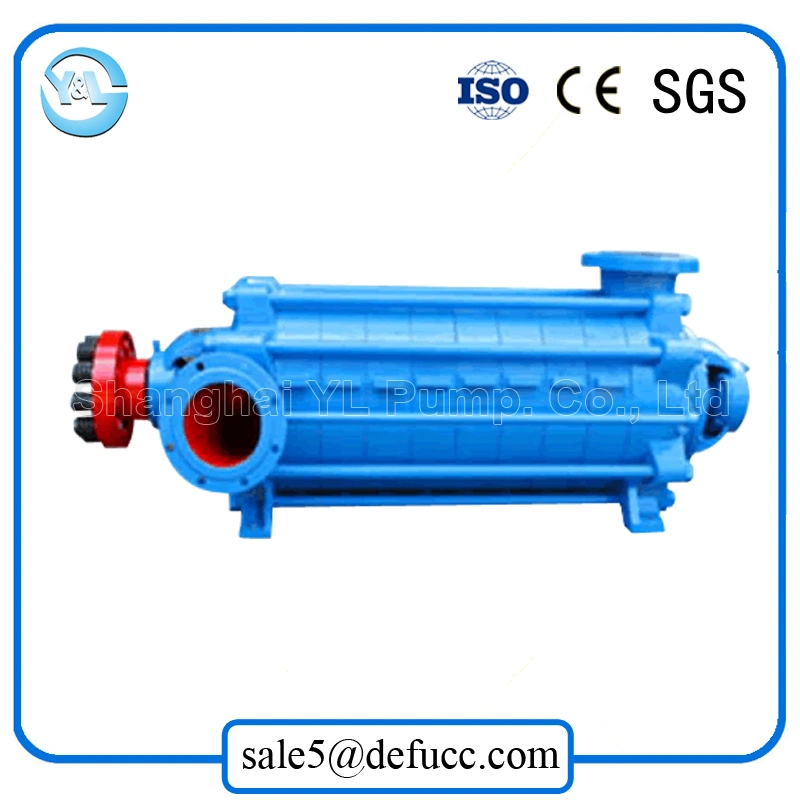

Big Capacity Multistage Centrifugal Water Pump for Agriculture Irrigation

Product Description

Big Capacity Multistage Centrifugal Water Pump for Agriculture Irrigation

The pump is efficient, reliable, and durable with low noise performance, easy maintenance and wide scope of usages. The air suction , compression and exhaust of the mechanical vacuum pump are conducted based on the voiume change of the pump cavity. The distract feature of the horizontal single suction centrifugal pump is that the stage quantity can be adjusted according to practical working pressure.
Big Capacity Multistage Centrifugal Water Pump for Agriculture Irrigation

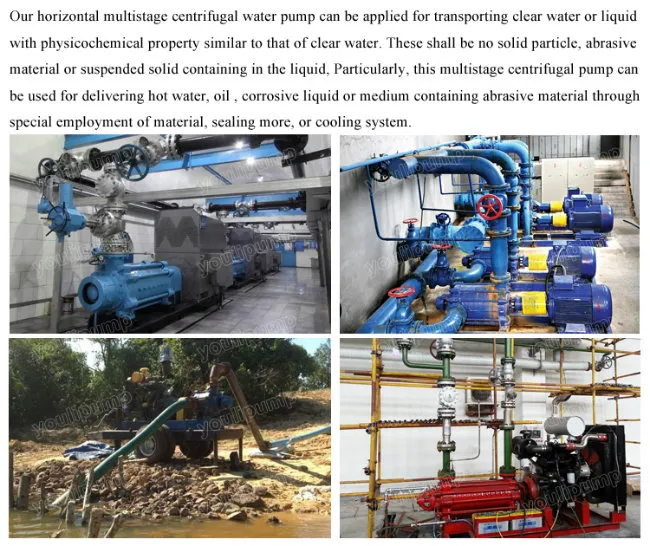

Application
Big Capacity Multistage Centrifugal Water Pump for Agriculture Irrigation

Technical Parameters

D(DF,DY,MD)600-60×(2-10)
Stage	Capacity		Head	Rating Speed	Efficiency	Shaft power	NPSHr	Impeller Dia	Pump Weight
	Capacity		Head	Rating Speed	Efficiency	Shaft power	NPSHr	Impeller Dia	Pump Weight
	m3/h	L/s	m	r/min	%	KW	m	mm	kg
2	450	125	130	1480	79	201.7	3.25	φ455	1750
	600	166.6	120		82	239.1	4.8
	705	195.8	108		79	262.5	5.2
3	450	125	195	1480	79	302.5	3.25	φ455	1950
	600	166.6	180		82	358.7	4.8
	705	195.8	162		79	393.7	5.2
4	450	125	260	1480	79	403.3	3.25	φ455	2260
	600	166.6	240		82	478.2	4.8
	705	195.8	216		79	524.9	5.2
5	450	125	325	1480	79	504.2	3.25	φ455	2570
	600	166.6	300		82	597.8	4.8
	705	195.8	270		79	656.2	5.2
6	450	125	390	1480	79	605.0	3.25	φ455	2880
	600	166.6	360		82	717.4	4.8
	705	195.8	324		79	787.4	5.2
7	450	125	455	1480	79	705.8	3.25	φ455	3190
	600	166.6	420		82	836.9	4.8
	705	195.8	378		79	918.7	5.2
8	450	125	520	1480	79	806.7	3.25	φ455	3500
	600	166.6	480		82	956.5	4.8
	705	195.8	432		79	1049.9	5.2
9	450	125	585	1480	79	907.5	3.25	φ455	3810
	600	166.6	540		82	1076.0	4.8
	705	195.8	486		79	1181.1	5.2
10	450	125	650	1480	79	1008.3	3.25	φ455	4120
	600	166.6	600		82	1195.6	4.8
	705	195.8	540		79	1312.4	5.2

Package
Big Capacity Multistage Centrifugal Water Pump for Agriculture Irrigation

The Service

1.Delivery: Delivery time will be on time as the contact. Usually, the delivery time is of centrifugal pump is for 15-25 working days.
2.Warranty: 1 year for the pump body, 3 months for the main working parts.
3.Package:According to your quantity, we use plywood case which is durable for ocean transport.
4.Shipping: By Sea and By Air
5.Payment: We are accept T/T,L/C,West Union and so on.
6.Pre-sales Service:According to your requirement, we will give your our profession advice of pump solution.
7.On-sales Service:We will clearly show you everything in fact when you place an order with us. We will takes photos or videos to show you order production situation.
8.After-sales Service: We will full report you the production progress and plan. Meanwhile, we will follow up the pump working conditions per three months when the pumps put into use, and can send the spare parts to you within one week if you need.
