Beer Wine Pump Used for Fluid Transfering
Beer wine Pump used for Fluid transferingStandard designThe CKY sanitary centrifugal pump is composed of motor, pump shaft, mechanical clamping jacket, sanitary mechanical seal.connection support, rear plate cover, impeller, pump shell, etc. The CKY sanitary centrifugal pump has large internal round......
Send Inquiry
Product Description
Beer wine Pump used for Fluid transfering
Standard design

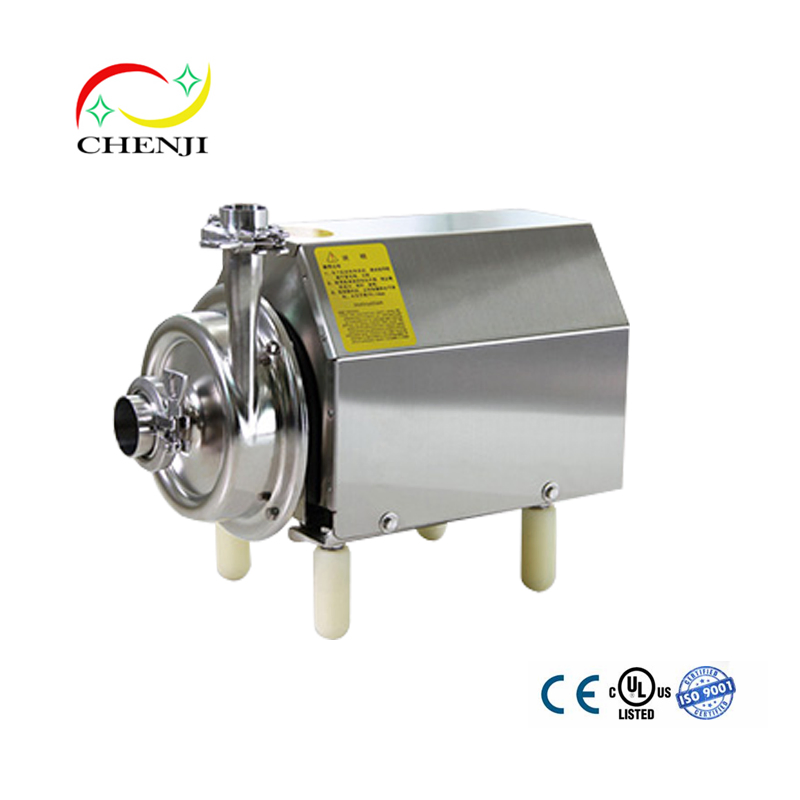

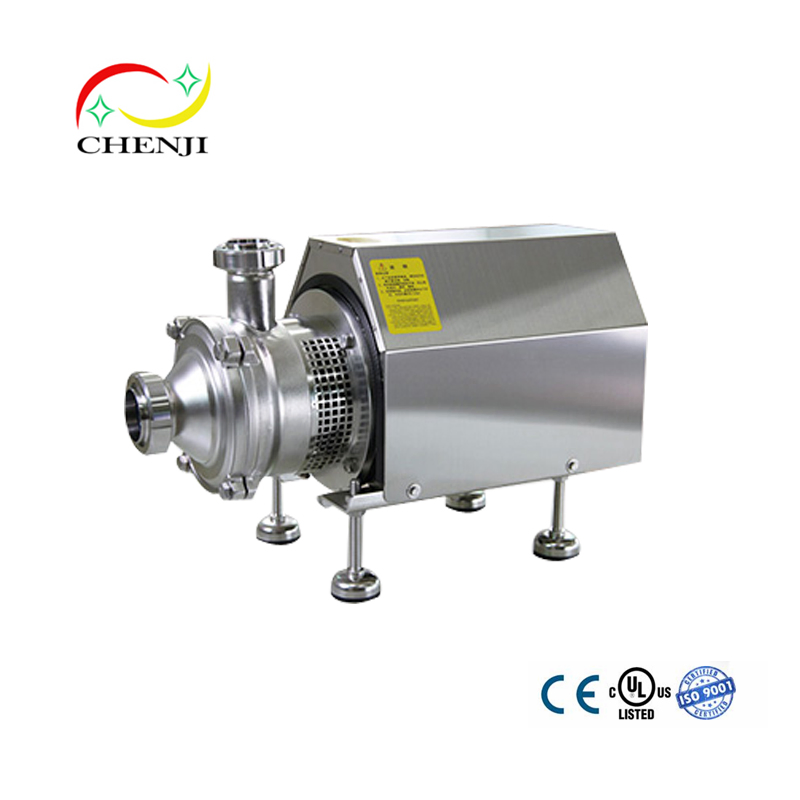

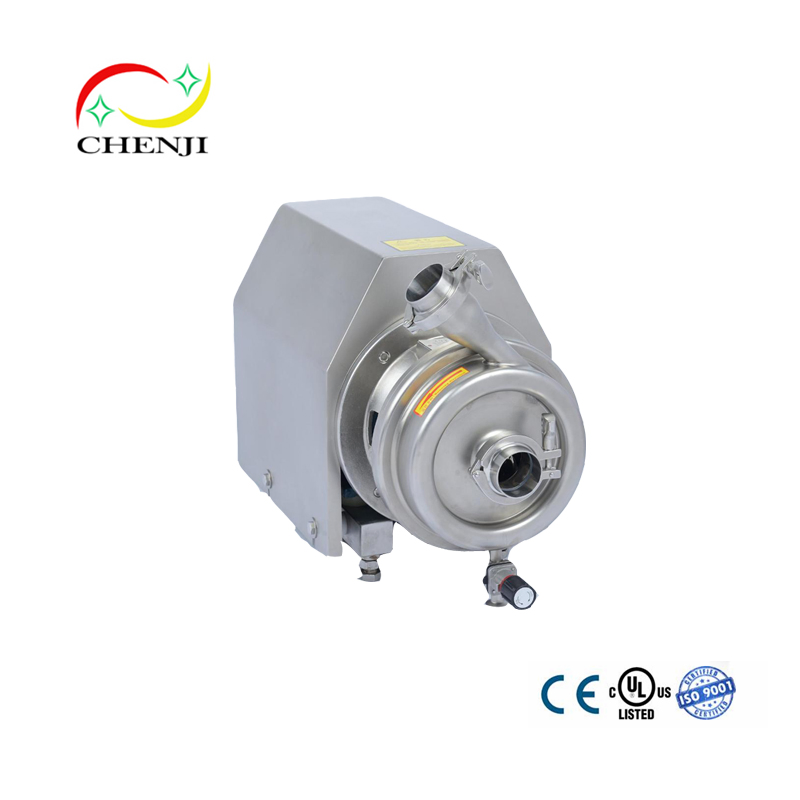

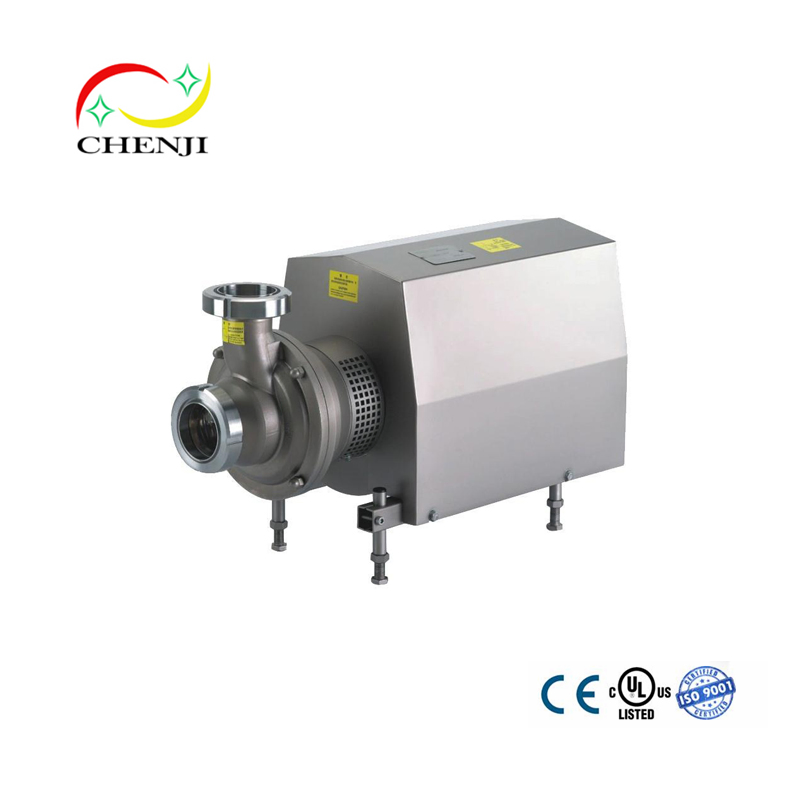

The CKY sanitary centrifugal pump is composed of motor, pump shaft, mechanical clamping jacket, sanitary mechanical seal.connection support, rear plate cover, impeller, pump shell, etc. The CKY sanitary centrifugal pump has large internal round chamfer and cleaning type seal. The CKY sanitary centrifugal pump specially designed for CIP has the stainless steel protection cover used for protecting the motor, and the equipment is supported by four adjustable feet.
Technical parameters
Maximum inlet pressure: 0.5MPa
Temperature range:-10ºC + 140ºC (EPDM)
Noise level (at 1m): 60- 85dB(A)
Washable seal
Hydraulic pressure: maximum 0.1MPa
Water volume: 0.25-0.5L/min
Double end seal
Hydraulic pressure: maximum 0.1MPa
Water volume: 0.25-0.5L/min
Shaft seal
The CKY sanitary centrifugal pump is provided with a set of externally mounted single end mechanical seal or water injection mechanical seal. The static ring of the mechanical seal is made of stainless seal, silicon carbide or tungsten alloy. The dynamic ring is made of stainless seal, carbon, graphite or tungsten alloy. The seal ring of the water injection type seal is a durable lip seal. The series of pump products can also be equipped with the double end mechanical seal.
Materials
Materials of liquid passing parts: AISI316L or AIS1304 stainless steelMaterials of other parts: AISI304 stainless steel
Quter surface: titanium
Inner surface: mirror polishing 0.4 or titanium
Liquid passing rubber seal material: EPDM/Q/FRM/NBR
Application

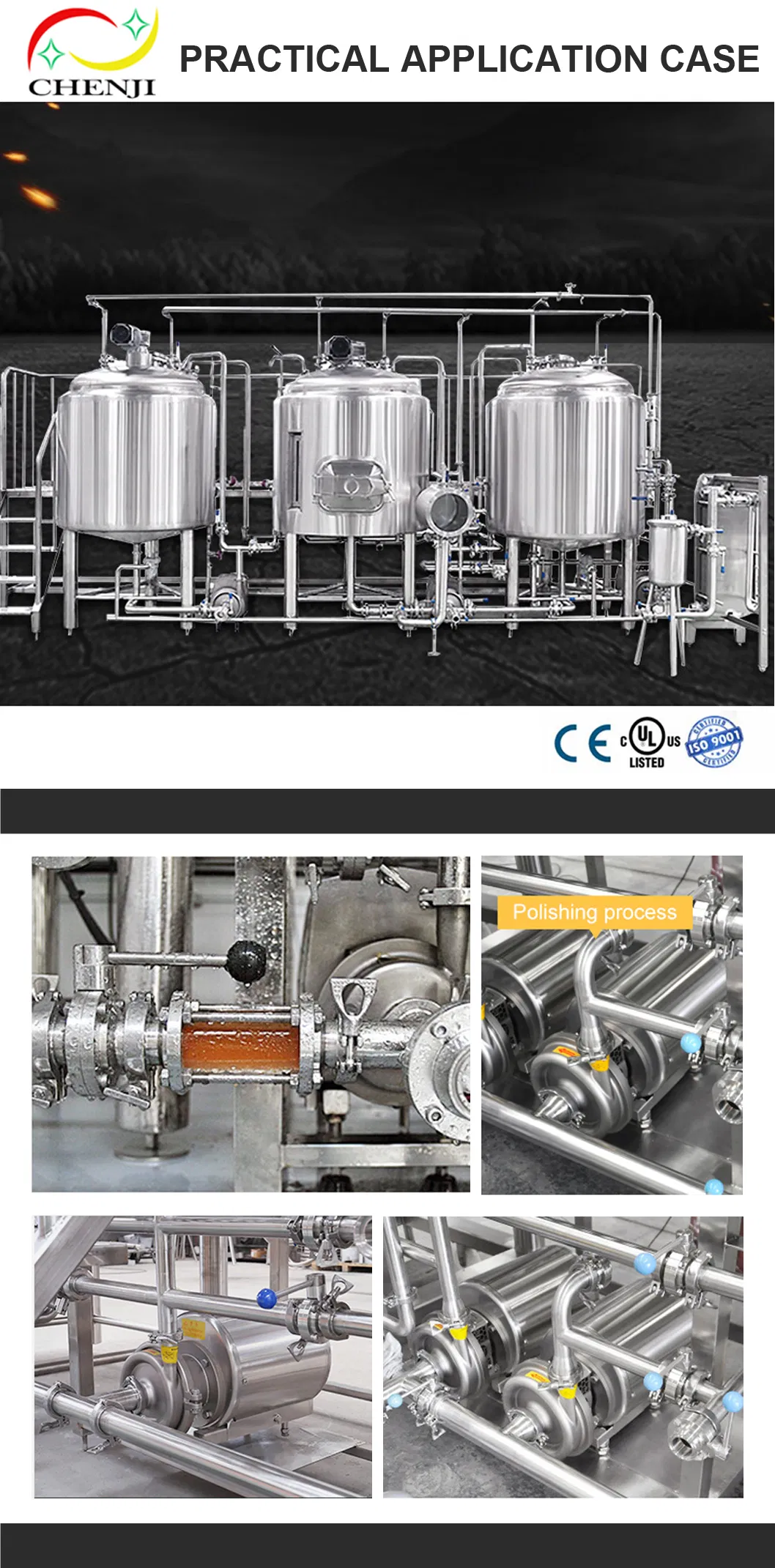

The CKY sanitary centrifugal pump is a kind of highly-efficient and economic centrifugal pump.In addition to meeting the requirements for sanitation and soft treatment to products, it also has chemical.stability. The CKY sanitary centrifugal pump is widely used for conveying various liquid materials in such fields as dairy, beer, beveraqe, medicine, biological engineering, fine chemical industry etc. It can be used to convey ordinary solutions of low and medium viscosity, and solutions containing suspension or corrosive solutions.
The form of the GOBOR sanitary centrifugal pump is single stage, single suction and open-type impeller. The pump shell and impeller are elaborately designed to reduce the resistance and thoroughly eliminate the dead corner of sanitation. Thanks to its unique structure, the flow speed of liquid in the pump is enhanced, so that the integral performance of the pump is improved. It is provided with excellent sanitary performance, so it is easy to be cleaned. It can meet the requirements for sanitation and soft treatment to products and has the chemical corrosion resistance
Standard design
The CKY sanitary centrifugal pump is composed of motor, pump shaft, mechanical clamping jacket, sanitary mechanical seal.connection support, rear plate cover, impeller, pump shell, etc. The CKY sanitary centrifugal pump has large internal round chamfer and cleaning type seal. The CKY sanitary centrifugal pump specially designed for CIP has the stainless steel protection cover used for protecting the motor, and the equipment is supported by four adjustable feet.
Technical parameters
Maximum inlet pressure: 0.5MPa
Temperature range:-10ºC + 140ºC (EPDM)
Noise level (at 1m): 60- 85dB(A)
Washable seal
Hydraulic pressure: maximum 0.1MPa
Water volume: 0.25-0.5L/min
Double end seal
Hydraulic pressure: maximum 0.1MPa
Water volume: 0.25-0.5L/min
Shaft seal
The CKY sanitary centrifugal pump is provided with a set of externally mounted single end mechanical seal or water injection mechanical seal. The static ring of the mechanical seal is made of stainless seal, silicon carbide or tungsten alloy. The dynamic ring is made of stainless seal, carbon, graphite or tungsten alloy. The seal ring of the water injection type seal is a durable lip seal. The series of pump products can also be equipped with the double end mechanical seal.
Materials
Materials of liquid passing parts: AISI316L or AIS1304 stainless steelMaterials of other parts: AISI304 stainless steel
Quter surface: titanium
Inner surface: mirror polishing 0.4 or titanium
Liquid passing rubber seal material: EPDM/Q/FRM/NBR
Application
The CKY sanitary centrifugal pump is a kind of highly-efficient and economic centrifugal pump.In addition to meeting the requirements for sanitation and soft treatment to products, it also has chemical.stability. The CKY sanitary centrifugal pump is widely used for conveying various liquid materials in such fields as dairy, beer, beveraqe, medicine, biological engineering, fine chemical industry etc. It can be used to convey ordinary solutions of low and medium viscosity, and solutions containing suspension or corrosive solutions.
The form of the GOBOR sanitary centrifugal pump is single stage, single suction and open-type impeller. The pump shell and impeller are elaborately designed to reduce the resistance and thoroughly eliminate the dead corner of sanitation. Thanks to its unique structure, the flow speed of liquid in the pump is enhanced, so that the integral performance of the pump is improved. It is provided with excellent sanitary performance, so it is easy to be cleaned. It can meet the requirements for sanitation and soft treatment to products and has the chemical corrosion resistance
