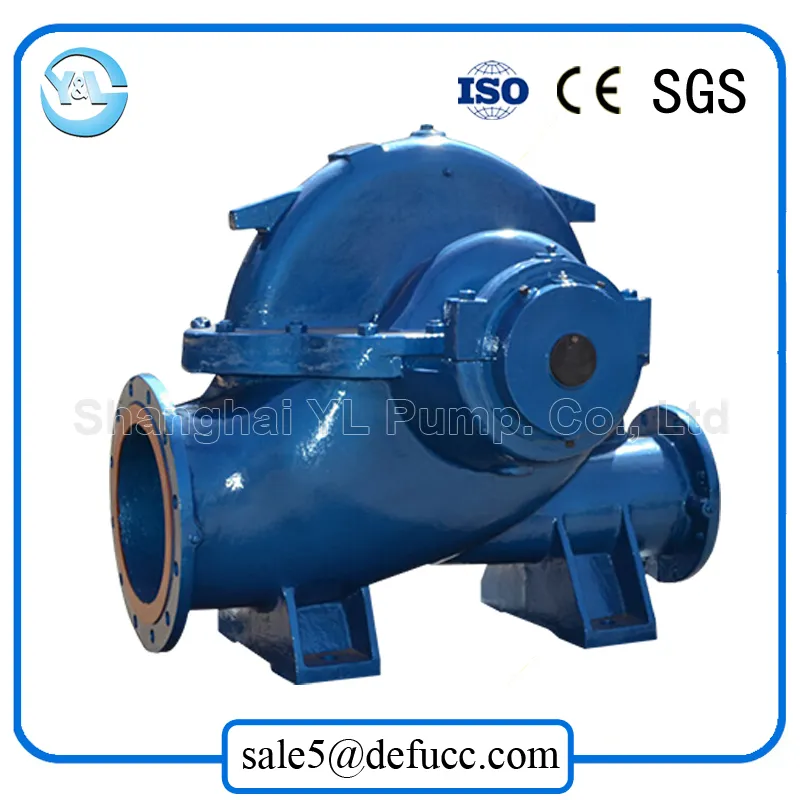

Bare Shaft Horizontal Double Suction Centrifugal Pump

Product Description

Bare Shaft Horizontal Double Suction Centrifugal Pump

Structure
Bare Shaft Horizontal Double Suction Centrifugal Pump

Technical Parameters

Pump Model	Capacity		Head (m)	Speed (r/min)	Power	Efficiency (%)	NPSH r(m)	Impeller's Dia(mm)	Net Pump Weight(kg)
Pump Model	m3/h	L/S	Head (m)	Speed (r/min)	Shaft Power (kw)	Efficiency (%)	NPSH r(m)	Impeller's Dia(mm)	Net Pump Weight(kg)
TPOW80-220(I)	22	6.1	17	1480	2.5	40	1.6	215	181
	83.5	23.5	13.8		3.8	82
	121	33.6	10		4.7	70
TPOW80-220(I)A	20	5.6	14.8		2.1	39		200
	77.2	21.4	11.8		3.1	81
	108	30	8.7		3.7	69
TPOW80-220(I)B	17.5	4.86	12.4		1.5	38.5		185
	70.4	19.6	9.8		2.3	80.5
	96	26.6	7.7		2.9	68.5
TPOW80-220(I)C	16	4.4	10.6		1.3	36		170
	64.4	17.9	8.2		1.8	78
	83	23	6.8		2.3	66
TPOW80-220(I)	60	16.7	64.5	2950	26.4	40	4.5	215	181
	164.5	45.7	55		30.1	82
	198	55	48		37	70
TPOW80-220(I)A	59	16.3	58		23.9	39		200
	152.9	42.5	47.5		24.4	81
	180	50	41		29.1	69
TPOW80-220(I)B	55	15.3	47		18.3	38.5		185
	138.5	38.5	39		18.3	80.5
	162	45	34		21.9	68.5
TPOW80-220(I)C	52	14.4	42		16.6	35.8		170
	128.4	35.7	33.5		15.1	77.8
	144	40	30		17.9	65.8

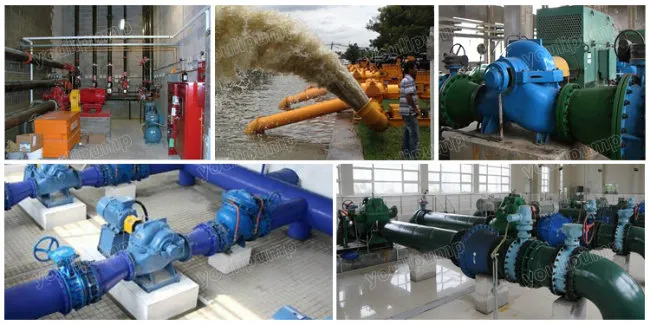

Application
1.the pump can be used for fire extinguishing for motor, transformer, factory and oil system. It can be used as standby fire pump in fire water system.
2.The double suction centrifugal pump is widely used in urban drainage, urban water supply, water plant. central heating system drainage for power plant. paper mill, water supply for air-conditioning system.
3.This kind of water pump has large flow, it is applied to farmland irrigation and drainage water conservancy.
4.The large solid particles which can be passed through are 20% of the pump impeller, our centrifugal pump is used for conveying wastewater, sewage in mine, drainage pumping station, iron and steel metallurgy, petrochemical refining and other fields.
Bare Shaft Horizontal Double Suction Centrifugal Pump

Package
Bare Shaft Horizontal Double Suction Centrifugal Pump

The Service
1.Delivery: Delivery time will be on time as the contact. Usually, the delivery time is of centrifugal pump is for 15-25 working days.
2.Warranty: 1 year for the pump body, 3 months for the main working parts.
3.Package:According to your quantity, we use plywood case which is durable for ocean transport.
4.Shipping: By Sea and By Air
5.Payment: We are accept T/T,L/C,West Union and so on.
6.Pre-sales Service:According to your requirement, we will give your our profession advice of pump solution.
7.On-sales Service:We will clearly show you everything in fact when you place an order with us. We will takes photos or videos to show you order production situation.
8.After-sales Service: We will full report you the production progress and plan. Meanwhile, we will follow up the pump working conditions per three months when the pumps put into use, and can send the spare parts to you within one week if you need.
