Ash Pump
PH Series Ash Pump Specifications Performance Scope:Capacity:100~1290m3/hHead:37~92mMotor Power45~550kwStandard:JB/T8096-1998PH ash pump is horizontal single stage single suction cantilever centrifugal ash pump.It can be used for hydraulic convey ash and delivering the sand mixed liquids in the mine......
Send Inquiry
Product Description
Capacity:100~1290m3/h
Head:37~92m
Motor Power45~550kw
Standard:JB/T8096-1998

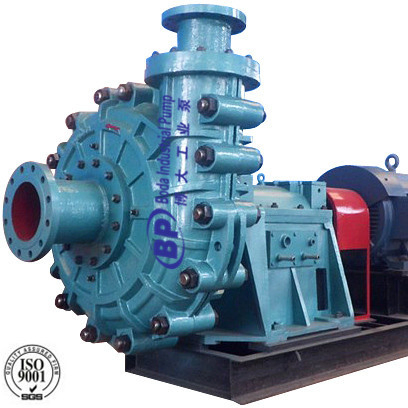

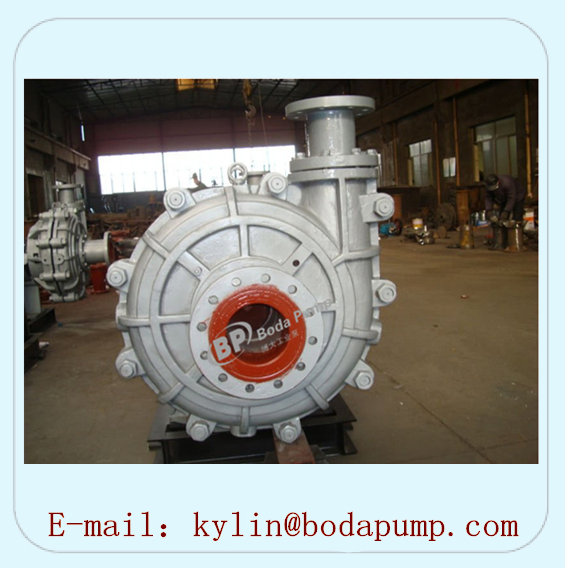

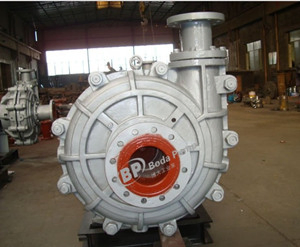

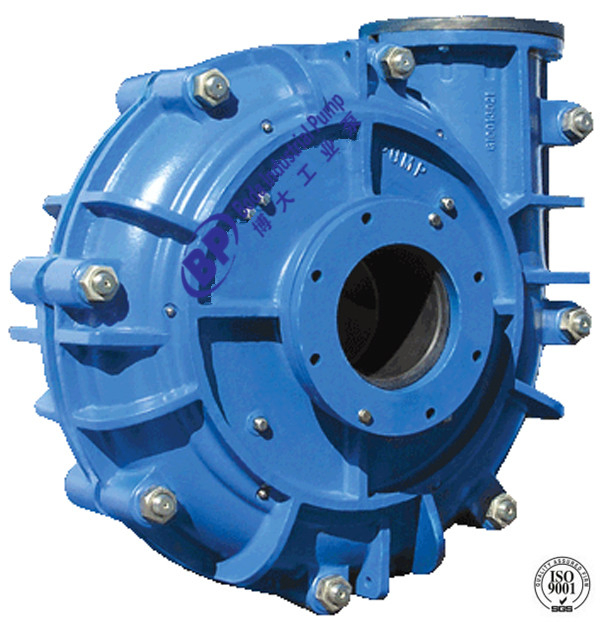

PH ash pump is horizontal single stage single suction cantilever centrifugal ash pump.It can be used for hydraulic convey ash and delivering the sand mixed liquids in the mine.The maximum diameter of the solid is not bigger than 25mm.It allows the sand to pass discontinuously which the diameter is about 50mm.Our company now can produce 4PH,6PH,8PH(I),10PH(I),4PH-60.They all have the characteristics of long service life, simple structure and reliable.
| Type | Flow(m³/h) | Head(m) | Speed(r/min) | Efficiency(%) | Impeller Size(mm) | Weight(kg) |
| 4PH | 100 | 41 | 1470 | 46 | 340 | 1000 |
| 4PH | 150 | 39 | 1470 | 55 | 340 | 1000 |
| 4PH | 200 | 37 | 1470 | 61 | 340 | 1000 |
| 4PH-60 | 140 | 61 | 1470 | 46 | 410 | 1050 |
| 4PH-60 | 220 | 59 | 1470 | 58 | 410 | 1050 |
| 6PH | 330 | 48 | 1480 | 55 | 375 | 1200 |
| 6PH | 400 | 47 | 1480 | 58 | 375 | 1200 |
| 6PH | 480 | 45 | 1480 | 60 | 375 | 1200 |
| 6PH | 350 | 62 | 1480 | 55 | 420 | 1200 |
| 6PH | 550 | 54 | 1480 | 60 | 420 | 1200 |
| 8PH(I) | 450 | 65 | 980 | 57 | 635 | 4000 |
| 8PH(I) | 550 | 63 | 980 | 61 | 635 | 4000 |
| 8PH(I) | 600 | 62 | 980 | 63 | 635 | 4000 |
| 10PH(I) | 585 | 51 | 730 | 44 | 750 | 4600 |
| 10PH(I) | 770 | 49 | 730 | 50.5 | 750 | 4600 |
| 10PH(I) | 960 | 47.5 | 730 | 59.7 | 750 | 4600 |
| 10PH(I) | 768 | 91.8 | 980 | 44 | 750 | 4600 |
| 10PH(I) | 1030 | 88 | 980 | 50.5 | 750 | 4600 |
| 10PH(I) | 1290 | 85 | 980 | 59.7 | 750 | 4600 |
