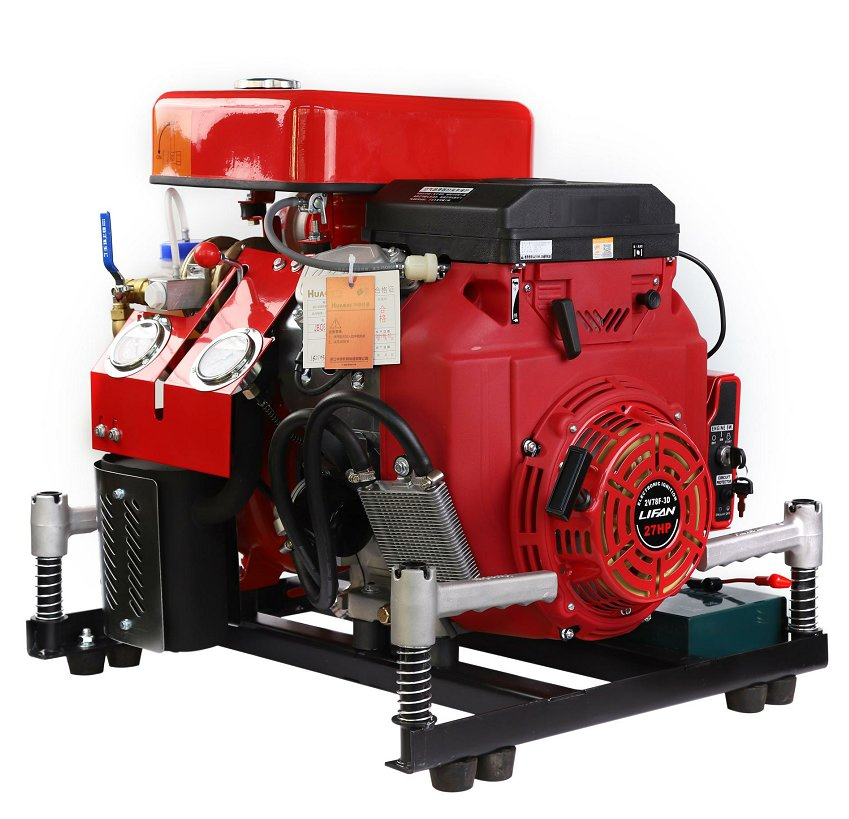

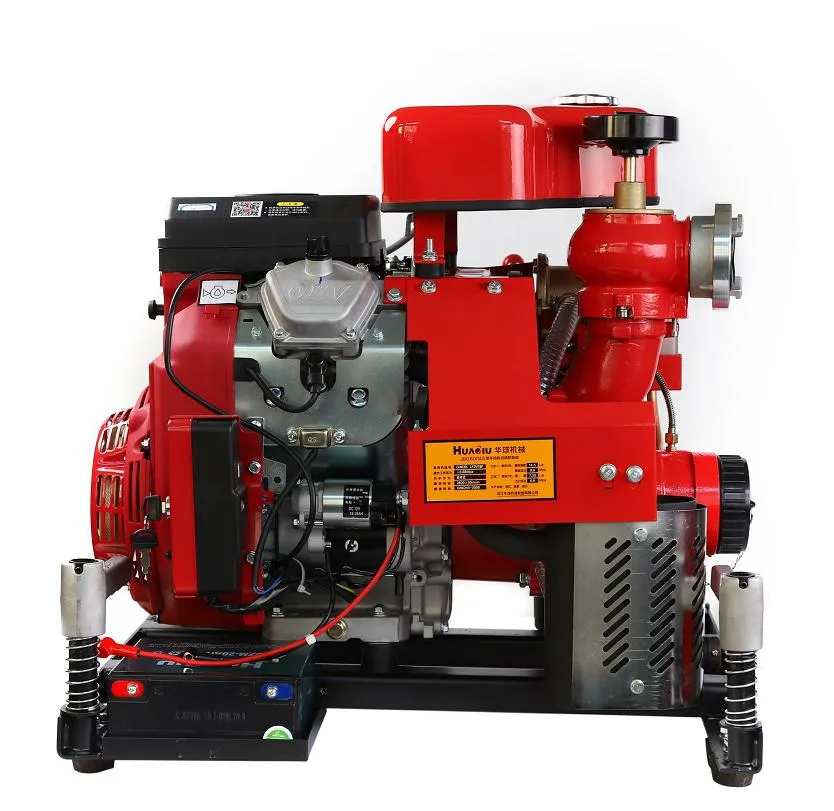

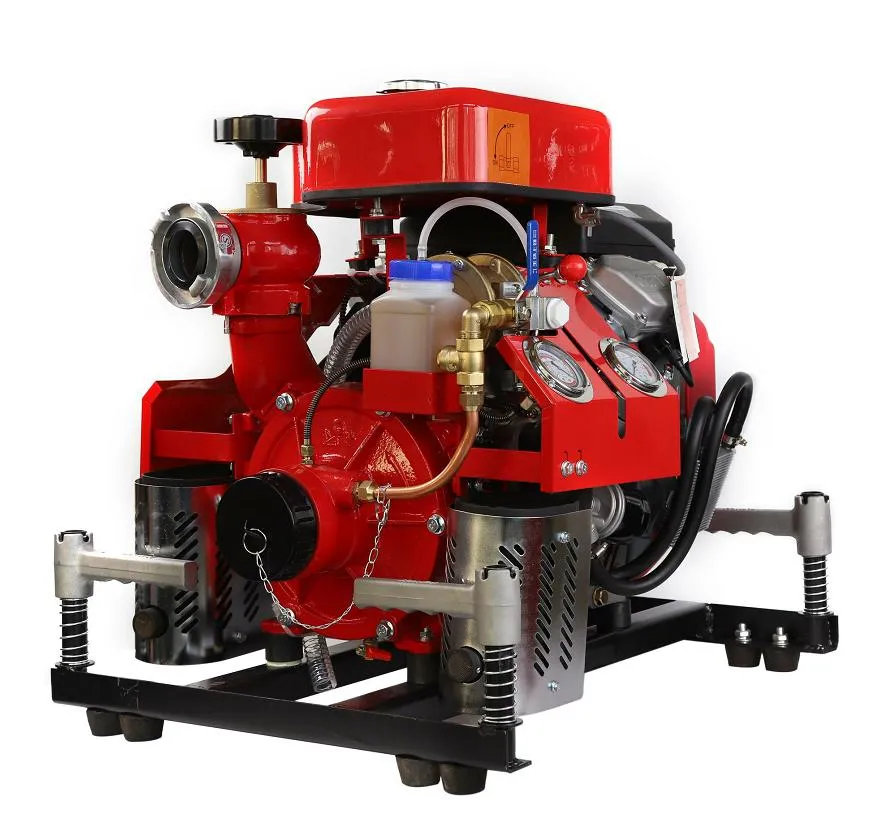

27HP Lifan Gasoline Engine 960lpm Fire Fighting Water Pump
Product DescriptionEngine:4 stroke,air cooled gasoline engine,Lifan 2V78F(Option for Honda GX690) Output power:27HP(20KW)Pump performance960 L/min at 0.6 MPa1180 L/min at 0.4 MPa1500 L/min at 0.2MPaWeight:80KGSize:690 x 600 x 630 (mm)Product ParametersType 4 strokeCylinder no.Double cylinderFuel tan......
Send Inquiry
Product Description
Engine:4 stroke,air cooled gasoline engine,Lifan 2V78F(Option for Honda GX690)
Output power:27HP(20KW)
Pump performance
960 L/min at 0.6 MPa
1180 L/min at 0.4 MPa
1500 L/min at 0.2MPa
Weight:80KG
Size:690 x 600 x 630 (mm)
| Type | 4 stroke |
| Cylinder no. | Double cylinder |
| Fuel tank capacity | 7L |
| Fuel system | Solenoid valve,carburetor |
| Engine oil capacity | 1.5L |
| Starting | Manual/Electric |
| Ignition | Transistorized coil electric ignition |
| Pump type | Single suction single stage impeller |
| Fuel consumption | 7L/h |
| Suction Dia | 3''(80mm) |
| Outlet Dia | 2.5''(65mm) |
| Outlet qty | 1PC(option for 2PC) |
| Method of drawing water | Rotary vane vacuum pump water diversion |
| Time of drawing water | Less than 15s |
| Maximum suction height | 9 m |
| Maximum head | 90 m |
| Nominal flow | 960 L/min |
| Nominal pressure | 0.6MPa |
